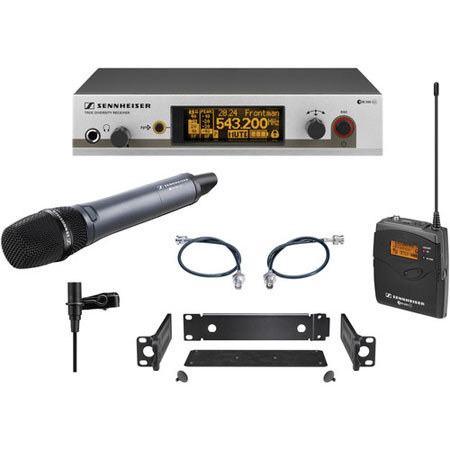

Sennheiser EW312/345 G3 Wireless System with Handheld and Lavalier Microphones, G - 566-608MHz

Sennheiser
SKU: SEW312345G3G MFR: EW312/345G3-G
Free Shipping

See all shipping options

In Stock Online Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $54.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $79.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $222.95
Made in USA

Our Price

$1,299.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Sennheiser EW312/345

The Sennheiser EW312/345 G3 Wireless System with Handheld and Lavalier Microphones (G - 566-608MHz) has a built-in Ethernet port for remote PC monitoring and setup with Sennheiser's Wireless System Manager software. This receiver's wireless sync function makes it a breeze to link up any G3 transmitter with the unit. In addition, it has a large back-lit graphic display where receiver and transmitter information can be easily seen even on the darkest of stages.

The microphone capsule of this hand-held transmitter/microphone combination is based on Sennheiser's evolution 800 series. Power and presence meet control as the super-cardioid capsule rejects feedback while providing a rich and detailed reproduction of the voice. A programmable mute button silences the microphone when needed or can also be set to act as a push-to-talk mode.

Sennheiser EW312/345 Features

  • Sturdy metal housing (transmitter and receiver)
  • 42MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 24 compatible frequencies
  • Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitter parameter from receiver
  • User-friendly menu operation with more control options
  • Illuminated graphic display, receiver also shows transmitter settings
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Transmitter feature battery indication in 4 steps, also shown on receiver display
  • Programmable Mute button on transmitter body
  • Easy-exchangeable microphone modules from Evolution series
  • Integrated Equalizer and Soundcheck mode
  • Contacts for recharging BA 2015 Accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement

Sennheiser EW312/345 Specifications

Frequency Bands
G - 566-608MHz
Frequency Response
80-18000Hz
Signal to Noise Ratio
>115dB
Total Harmonic Distortion (THD)
<0.9%
Antenna Connector
2 x BNC 50Ohm
Receiver: Bandwidth
42MHz
Receiver: Frequency Response
25-18,000Hz
Receiver: Audio Signal-to-Noise Ratio
>115dB
Receiver: THD & Noise
<0.9%
Receiver: Connector
XLR/6.3mm
Receiver: Antenna Connector
2 x BNC 50Ohm
Transmitter: No of Channels
1680
Transmitter: Type of Input Connector
Locking 1/8" (3.5mm) Mini
Transmitter: Interchangeable Mic Heads
No (Locking 1/8" mini input on bodypack accommodates compatible microphones)
Transmitter: Frequency Response
25Hz - 18kHz
Transmitter: Battery Type/Approx. Life
x2 AA Batteries, 8 hours (approx)
Transmitter: Mute Switch
Programmable Mute Function
Transmitter: Level Control
Yes
Transmitter: Antenna Type
1/4 Wave
Transmitter: Display
Back-lit LCD Display
Handheld Mic: Bandwidth
42MHz
Handheld Mic: RF Output
10/30mW
Handheld Mic: Frequency Response
80-18,000Hz
Handheld Mic:Audio Signal-to-Noise Ratio
> 115 dB(A)
Handheld Mic: THD & Noise
<0.9%
Handheld Mic: Transducer
Dynamic
Handheld Mic: Polar Pattern
Cardioid
Lavalier Mic: Transducer
Electret Condenser
Lavalier Mic: Polar Pattern
Omnidirectional
Lavalier Mic: Frequency Response
60 Hz - 18 kHz
Lavalier Mic: Signal-to-Noise Ratio
> 110 dB
Lavalier Mic: Power Requirements
Phantom Power Provided by Wireless Transmitter
Lavalier Mic: Output Connectors
1/8" (3.5mm) (TS, Unbalanced) Mini Jack
Lavalier Mic: Pad
No
Lavalier Mic: Low Frequency Roll-Off
No
Lavalier Mic: Applications
Speakers, Hands Free Vocals, Broadcast, Live Performance, Wireless Videography, etc.
Mount: Compatibility
G3 100/300/500 Series Wireless Monitoring Systems
Dimensions
Receiver: 8.3x8x1.7" / 21.08x20.32x4.31cm
Transmitter: 3.23x2.92x0.94" / 8.20x7.41x2.38cm
Weight
Receiver: 2.2lbs / 0.99kg
Transmitter: 160g / 5.64oz
Handhled Microphone: 15.9oz / 450.75g
