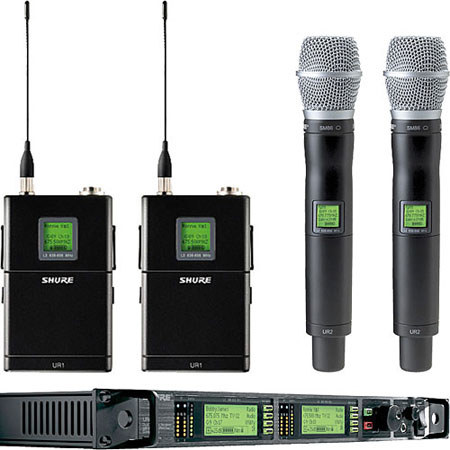

Shure UR124D+/SM86-J5 Wireless Combo Microphone System, UR4D Dual Receiver, 2 UR2 Transmitters, SM86 Mic Heads, 2 UR1 Transmitters, J5/578-638 MHz

Shure
SKU: SH124DSM86J5 MFR: UR124D+/SM86-J5

List Price: $8,226.00

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $274.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $419.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $1079.95
20% Off

Our Price

$6,581.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Special Offers

Product Highlights

  • UR4DJ5 Receiver
  • UR2/SM86-J5 Wireless Mic
  • UR1-J5 Transmitter

About Shure UR124D/SM86-J5

This Shure UR124D/SM86-J5 Bundle comes with: and Shipping is free! .

The Shure UR124D+/SM86-J5 is primarily designed for touring, stage performances, fixed installation in large clubs, theaters, houses of worship, large scale presentations and more. This package enables two microphone transmitters to operate simultaneously and includes the UR4D dual diversity receiver, two UR2 handheld transmitters with Beta 86 microphone heads and two UR1 bodypack transmitters.

The UR4D Dual Diversity Receiver is a durable, single space, rack-mountable unit that is designed to receive signal from two transmitters simultaneously. The UR4D's diversity design aides in minimizing Radio Frequency (RF) interference and noise. Dual backlit LCDs provide access to all programmable parameters. Audio outputs include a microphone/line level switchable balanced XLR with ground lift and 1/4" phone connectors. USB and Ethernet connections are provided for direct integration with a PC and network arrays.

The UR2 Handheld Transmitter is rugged and designed to withstand the rigors of daily use on the road. The transmitter is available with Shure SM86 capsule. The transmitter is capable of 10 or 50 mA output power, enabling extended range whenever necessary. The UR2 features a backlit LCD display and is powered up to 9.5 hours on 2 AA alkaline batteries (low RF power).

The UR1 Bodypack Transmitter features a cast magnesium housing, protecting the transmitter from rigorous use while remaining lightweight. The UR1 bodypack does not include a microphone; however, the TA4-male connection is compatible with Shure lavaliers, head-worn microphones and instrument cables featuring a TA4-female connection. The transmitter is capable of 10 or 50 mA output power, enabling extended range whenever necessary. The UR1 features a backlit LCD display and is powered up to 9 hours on 2 AA alkaline batteries (low RF power).

Shure UR124D/SM86-J5 Features

  • Adorama Valuable Bundle. Kit Includes.
  • Shure UR4D+ Dual Diversity UHF Wireless Microphone Receiver, Rack Mount Hardware, 2 x 1/2 Wave Antennas, 2 x Antenna Cables, IEC Power Cable, IEC Power Extension Cable, Ethernet Network Cable, Wireless Workbench Software, Shure USA Warranty.
  • Shure UR2 Handheld Transmitter, SM86 Microphone, Microphone Clip, Shure USA Warranty.
  • Shure UR1-J5 Bodypack Transmitter, Transmitter Antenna, 2 x AA Batteries, Zipper Bag, Shure USA Warranty.

Shure UR124D/SM86-J5 Specifications

Type of System
Dual Handheld / Body-Pack Combo UHF, Rackmount Type Receiver
RF Carrier Frequency Range
J5/578-638 MHz
Approx. Working Range
500' (150 m) typical conditions
Overall Frequency Response
40Hz to 18kHz +/- 1dB
Signal-to-Noise Ratio
Ultimate Quieting (ref. 45 kHz deviation) <100 dB, A-weighted
No of Channels
2400 Selectable Frequencies Across 60MHz Bandwidth
No of Simultaneous Systems
Up to 60 Preset Compatible Systems/Band (140 w/Multiple Bands, Region Dependent)
Receiver: Type of Outputs
XLR 3-pin: Mic / Line Switchable, Balanced Low-Z with Ground Lift Switch
1/4" Phone: 200 ohms
USB: Computer Interface
RJ-45: Ethernet Network Interface
Receiver: Headphone Monitoring
1/4" Phone with level control dial
Receiver: Power Requirements
100 to 240VAC, 50/60Hz
0.8 Amps max.
Receiver: Display
Backlit LCD: Group and Channel, Frequency, Automatic Transmitter Sync, Receiver name, Output Level, Squelch, Receiver Lock, LCD View, Contrast, ToneKey, Network Parameters
Receiver: Mounting Options
Rack Mount Hardware (Included)
Receiver: Antenna Type
Flexible Antenna
UR1 Transmitter: Type of Input Connector
TA4-Male (mini 4-pin male connection)
UR1 Transmitter: Mic Heads
Compatible with lavalier and head worn microphones with TA4-Male connectors
UR1 Transmitter: Battery Type/Life
1.5V AA Alkaline Batteries x2
9.5 hours (low power)
6 hour (high power)
UR1 Transmitter: Level Control
Gain: -10dB to +20dB
UR1 Transmitter: Antenna Type
Two band dependent antennas
UR1 Transmitter: Display
Backlit LCD
UR2 Transmitter: Polar Pattern
Cardioid
UR2 Transmitter: Mic Heads
No
UR2 Transmitter: Battery Type/Life
1.5V AA Alkaline Batteries x2
9.5 hours (low power)
6 hour (high power)
UR2 Transmitter: Level Control
Gain: -10dB to +20dB
UR2 Transmitter: Antenna Type
Flexible Antenna
UR2 Transmitter: Display
Backlit LCD
Dimensions
Receiver: 1.72 x 19 x 14.39" (43.6 x 482.6 x 365.5mm)
UR1 Transmitter: 10.27 x 2" (261 x 51mm)
UR2 Transmitter: 2.38 x 3.84 x 0.66" (60.4 x 97.5 x 16.7mm)
Weight
Receiver: 11 lbs (5kg)
UR1 Transmitter: 12.6 oz (356g)
UR2 Transmitter: 11 lbs (5kg)
Mfr #
UR124D+/SM86-J5
SKU
SH124DSM86J5
