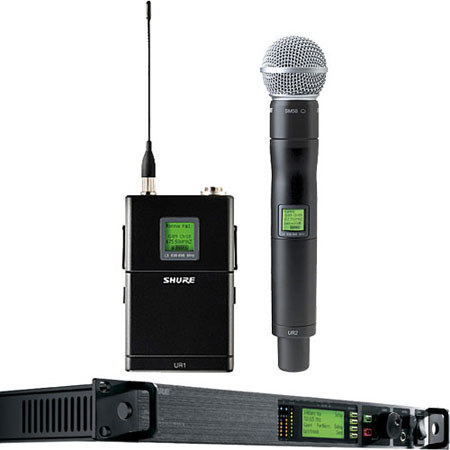

Shure UR124S+/SM58-J5 Professional Diversity Wireless Combo Microphone System, Includes UR4S Receiver, UR2 Transmitter with SM58 Head, UR1 Transmitter

SKU: SH124SSM58J5 MFR: UR124S+/SM58-J5
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$4,605.00 List Price

Our Price

Free Shipping
Add to Wishlist

Protect your investment

About the Shure UR124S+/SM58-J5

The Shure UR124S+/SM58-J5 Professional Diversity Wireless Combo Microphone System is primarily designed for touring, stage performances, fixed installation in large clubs, theaters, houses-of-worship, large scale presentations and more. This package includes the UR4S single diversity receiver, UR2 handheld transmitter with SM58 microphone head and UR1 body-pack transmitter.

The UR4S Single Diversity Receiver is a durable, single space, rack-mountable unit that is designed to receive signal from compatible UHF series transmitters. The UR4S's diversity design aides in minimizing Radio Frequency (RF) interference and noise. Back lit LCDs provide access to all programmable parameters. Audio outputs include a microphone / line level switchable balanced XLR with ground lift and 1/4" phone connectors. USB and Ethernet connections are provided for direct integration with a PC and network arrays.

The UR2 Handheld Transmitter is rugged and designed to withstand the rigors of daily use on the road. The transmitter is available with Shure SM58 capsule. The transmitter is capable of 10 or 50 mA output power, enabling extended range whenever necessary. The UR2 features a backlit LCD display and is powered up to 9 hours on 2 AA alkaline batteries (low RF power).

The UR1 Body-Pack Transmitter features a cast magnesium housing, protecting the transmitter from rigorous use while remaining light weight. The UR1 body-pack does not include a microphone, however the TA4-male connection is compatible with Shure lavaliers, head-worn microphones and instrument cables featuring a TA4-female connection. The transmitter is capable of 10 or 50 mA output power, enabling extended range whenever necessary. The UR1 features a backlit LCD display and is powered up to 9 hours on 2 AA alkaline batteries (low RF power).

Shure UR124S+/SM58-J5 Includes

  • Shure UR4S Single Diversity Receiver
  • UR2 Handheld Transmitter with SM58 Head
  • UR1 Body-Pack Transmitter
  • Transmitter Antenna (UR1)
  • Rack Mount Hardware
  • AA Batteries
  • 2 x 1/2 Wave Antennas
  • 2 x Antenna Cables
  • IEC Power Cable
  • IEC Power Extension Cable
  • Ethernet Network Cable
  • Wireless Workbench Software
  • Transmitter Carrying Case
  • Zipper Bag (UR1)
  • Microphone Clip
  • Shure Warranty

Shure UR124S+/SM58-J5 Features

  • Handheld and Body-Pack Transmitters: This combo-system includes a handheld and body-pack transmitters for added flexibility
  • Diversity Operation: The twin receiver circuits result in minimal noise caused by radio frequency interference
  • 2400 Selectable Frequencies: The UHF-R series features 2,400 user selectable frequencies over a 60MHz band. Up to 60 Preset Compatible Systems/Band can operate simultaneously
  • Audio Reference Companding: Shure's Audio Reference Companding scheme applies companding to certain segments of audio that exceed a threshold level. The result eliminates the "breathing" noise associated with standard compander circuits
  • USB and Ethernet Connections: A USB port enables direct connection to a PC. Shure's Wireless Workbench software (included) enables remote operation of parameters via PC. An Ethernet network port enables networking of multiple receivers
  • Automatic Transmitter Sync: The system provides automatic remote sync of channel and frequency between the transmitter and receiver
  • Variable Transmitter Output Power: Both handheld and body-pack transmitters feature variable RF output power. Users can select between 10mW and 50mW output power
  • Mic and Line Level Audio Output: The receiver features an balanced XLR output capable of microphone or line level signal. The XLR output features a ground lift switch to minimize noise. An unbalanced 1/4" phone output is featured as well

Shure UR124S+/SM58-J5 Specifications

Type of System Handheld / Body-Pack Combo UHF, Rackmount Type Receiver
RF Carrier Frequency Range Frequency J5 / 578 - 638MHz
Approx. Working Range 500' (150 m) typical conditions
Overall Frequency Response 40Hz to 18kHz +/- 1dB
Signal-to-Noise Ratio Ultimate Quieting (ref. 45kHz deviation)
<100dB, A-weighted
No. Of Channels 2400 Selectable Frequencies Across 60MHz Bandwidth
No. Of Simultaneous Systems Up to 60 Preset Compatible Systems/Band (140 w/Multiple Bands, Region Dependent)
Type of Receiver UR4S Single Receiver - Diversity
Receiver: Type of Outputs XLR 3-pin: Mic / Line Switchable, Balanced Low-Z with Ground Lift Switch
1/4" Phone: 200 ohms
USB: Computer Interface
RJ-45: Ethernet Network Interface
Receiver: Headphone Monitoring 1/4" Phone with level control dial
Receiver: Power Requirements 100 to 240VAC, 50/60Hz
0.8 Amps max
Receiver: Display Backlit LCD: Group and Channel, Frequency, Automatic Transmitter Sync, Receiver name, Output Level, Squelch, Receiver Lock, LCD View, Contrast, ToneKey, Network Parameters
Receiver: Mounting Options Rack Mount Hardware (Included)
Receiver: Antenna Type Flexible Antenna
Type of Transmitter (UR1) UR1 UHF Frequency Agile Body-Pack
UR1 Transmitter: Type of Input Connector TA4-Male (mini 4-pin male connection)
UR1Transmitter:Interchangeable Mic Heads Compatible with lavalier and head worn microphones with TA4-Male connectors
UR1 Transmitter:Battery Type/Approx Life 1.5V AA Alkaline Batteries x2
9.5 hours (low power)
6 hour (high power)
UR1 Transmitter: Level Control Gain: -10dB to +20dB
UR1 Transmitter: Antenna Type Two band dependent antennas
UR1 Transmitter: Display Backlit LCD
Type of Transmitter (UR2) UR2 UHF Frequency Agile Handheld
UR2 Transmitter: Type of Microphone SM58
UR2 Transmitter: Polar Pattern Cardioid
UR2Transmitter:Interchangeable Mic Heads No
UR2 Transmitter:Battery Type/Approx Life 1.5V AA Alkaline Batteries x2
9.5 hours (low power)
6 hour (high power)
UR2 Transmitter: Level Control Gain: -10dB to +20dB
UR2 Transmitter: Antenna Type Flexible Antenna
UR2 Transmitter: Display Backlit LCD
Dimensions Receiver: 1.72" x 19" x 14.39" / 43.69 x 482.6 x 365.51 mm
UR1 Transmitter: 10.27" x 2" / 260.86 x 50.8 mm
UR2 Transmitter: 2.38" x 3.84" x 0.66" / 60.45 x 97.54 x 16.76 mm
Weight Receiver: 11 lbs / 4.99 kg
UR1 Transmitter: 12.6 oz / 357.20 g
UR2 Transmitter: 11 lbs / 4.99 kg
