20% Off
Shure UR1MLEM03-G1 Bodypack Transmitter for UHF-R Wireless Systems (Lemo Connector), G1 / 470-530 MHz Frequency Range


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

List Price: $2,186.00

Availability: In Stock Online In Stock Online - Usually ships within 1-2 Days

Free Shipping

See all shipping options

Shure UR1MLEM03-G1: Picture 1 regular $1,749.00

About Shure UR1MLEM03-G1

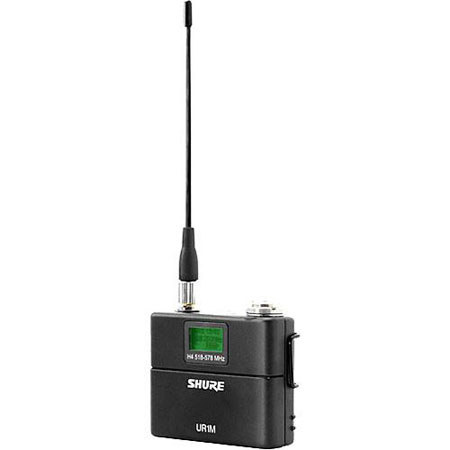

The Shure UR1MLEM03-G1 Micro Bodypack Transmitter features a miniature design and weighs just 2.2 oz (62g) without batteries. The transmitter is designed for use with the receivers in the Shure UHF-R series including the UR4S and UR4D. The UR1M bodypack does not include a microphone, however the 3-pin Lemo connection is compatible with lavaliers, head-worn microphones and instrument cables featuring a 3-pin Lemo connection. The transmitter is capable of 10 or 50mA output power, enabling extended range whenever necessary. The UR1M features a backlit LCD display and is powered for up to 9 hours on two 1.5V AAA alkaline batteries (low RF power).

Shure UR1MLEM03-G1 Features

  • 3-pin Lemo Connection: The 3-pin Lemo input connection is completely compatible with Shure and third party lavaliers, head-worn microphones, instrument and line-level cables
  • 2400 Selectable Frequencies: The UHF-R series features 2400 user selectable frequencies over a 60MHz band. Up to 60 Preset Compatible Systems/Band can operate simultaneously
  • Audio Reference Companding: Shure's Audio Reference Companding scheme applies companding to certain segments of audio that exceed a threshold level. The result eliminates the "breathing" noise associated with standard compander circuits
  • Automatic Transmitter Sync: The system provides automatic remote sync of channel and frequency between the transmitter and receiver
  • Variable Transmitter Output Power: Users can select between 10mW and 50mW output power

Shure UR1MLEM03-G1 Specifications

Type of Transmitter
UR1M UHF Frequency Agile Bodypack
No. Of Channels
2400 Selectable Frequencies Across 60MHz Bandwidth
Frequency Range
G1 / 470-530 MHz
Type of Input Connector
3-pin Lemo
Interchangeable Mic Heads
Compatible with lavalier and head worn microphones with 3-pin Lemo connectors
Frequency Response
40Hz to 18kHz +/- 1dB overall system
Battery Type/Approx. Life
AAA Alkaline, NiMH or Lithium Batteries x2
Level Control
Gain: -10dB to +20dB
Antenna Type
Flexible Antenna
Backlit LCD: Group and Channel, Frequency, Automatic Transmitter Sync, Receiver name, Output Level, Squelch, Receiver Lock, LCD View, Contrast, ToneKey, Network Parameters
Dimensions (H x W x D)
1.9" x 2.38" x 0.66" / 48.26 x 60.45 x 16.76 mm
2.2 oz / 62.37 g (without battery)
Mfr #
