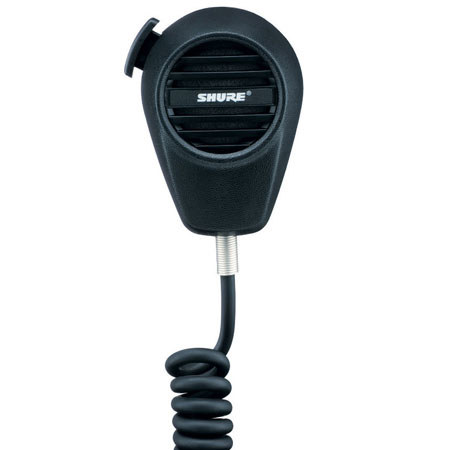

Shure 527B Cardioid Handheld Lo-Z Microphone, 300 to 5000 Hz Frequency Response

Shure

List Price: $110.00

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 1 Year Replacement Plan + $7.95
  • New Leaf 3 Year Extended Warranty + $9.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $22.95
33% Off

Our Price

$73.49
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Shure 527B

The Shure 527B microphone is an extremely reliable handheld dynamic microphone with an extended low- and high-frequency response particularly suited to ham radio use, mobile FM transmission and top-quality paging systems. The microphone has a clear, crisp and natural voice response. It features small size, light weight and modular construction.

The modular construction of the 527B permits ease of field serviceability. The design of the cartridge, switch and cable makes them easily replaceable. The microphone is wired to prevent lead breakage or crimping.

The unit fits naturally and comfortably in the hand and is not affected by heat or humidity. The exclusive ARMO-DUR case is immune to oil, grease, fumes, salt spray, sun, rust and corrosion and is outstanding in its ability to withstand mechanical shocks and vibrations. The "Million-Cycle" leaf-type switch is designed to withstand severe operating conditions and constant usage.

Shure 527B Features

  • Extended low- and high-frequency response
  • Highly intelligible voice response
  • Unparalleled ruggedness and reliability
  • Moving coil (dynamic) element
  • ARMO-DUR case
  • "Million-Cycle" leaf-type switch controlling microphone and external relay or switching circuits
  • Modular construction for easy field service
  • "Lifetime" hang-up button and mounting bracket
  • Long-life neoprene-jacketed coil cord

Shure 527B Specifications

Transducer
Dynamic
Polar Pattern
Cardioid
Frequency Response
300 to 5,000 Hz
Sensitivity (at 1,000 Hz)
Open Circuit Voltage: -53 dBV/Pa (2.2mV)
Impedance
Microphone impedance rating is 150 Ohm (200 Ohm actual) for connection to microphone inputs rated at 19 to 300 Ohm
Switch
Double-pole, single-throw, leaf-type
Cable
Attached, 1.8 m (6 ft), 4-conductor (2 shielded), neoprene-jacketed
Dimensions (H x W x D)
3.688 x 2.625 x 1.765" (9.37 x 6.67 x 4.48cm)
Weight
11.9 oz (337g)
