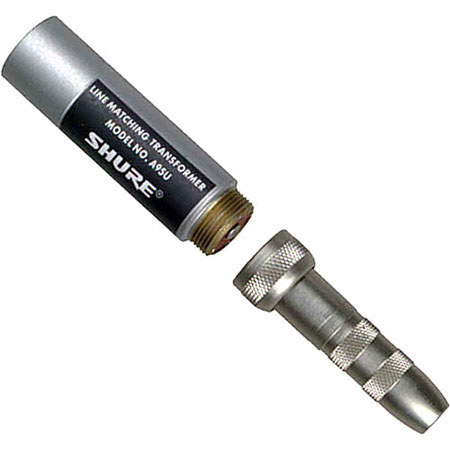

Shure A95U Reversible Impedance Line Matching Transformer, In-Line XLR Male to 1/4" Phone (Plug and Jack) Barrel
What's Included With This Item:
- Shure A95U Reversible Impedance Line Matching Transformer
- 1/4" Phone Jack Adapter
- Shure Warranty
The Shure A95U is a reversible transformer that matches low- or high-impedance microphones to high- or low-impedance inputs. The transformer permits use of very long microphone cables with high-impedance microphones. However, when connecting a high-impedance microphone, limit the cable length between the microphone and the transformer to 4.6 m (15 ft). The cable from the transformer to the low-impedance input can be any desired length.
The transformer prevents high-frequency loss, level loss and pickup of noise and hum. The A95U comes furnished with a male XLR connector on the low-impedance end, with a 1/4" phone plug and phone jack adapter on the high-impedance end.
|Input Impedance||75 to 300 ohms|
|Output Jitter||41 kohms|
|Frequency Response||20Hz ot 20kHz|
|Input Connectors||XLR (female)|
|Output Connector||1/4 in. (male) phone|
|Dimensions(Diameter x Long)||0.75" x 3.5" / 19.05 x 88.9 mm|
