Shape Cameleon I Camera Support Kit with CA Shoulder Rig
What's Included With This Item:
- Shape Cameleon I Camera Support
- CA Shoulder Rig
- Quick Handle
- Back Pad
- Shape Box
- Counter Weight
- Shape Warranty

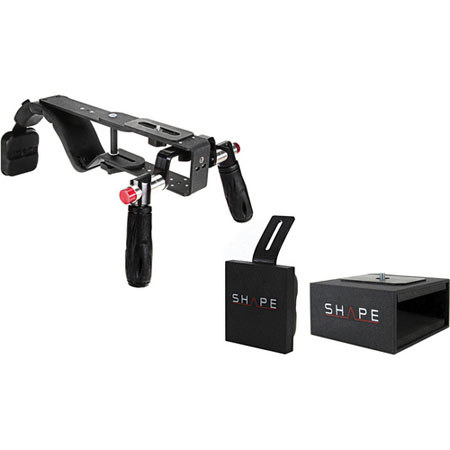

The Shape Cameleon I Camera Support Kit consists of the Cameleon I camera support (CA Shoulder Rig, Hand6 Quick Handle and Pad1 Back Pad), Shape Box and Counter Weight. It is designed to be used on either shoulder. The camera support is also compatible with most video and DSLR cameras with a standard 1/4-20 threaded socket.
When worn, the camera platform (and the base of the camera) is placed 0.75" (1.9cm) above the tip of the shoulder. This rig is manufactured from lightweight aluminum and is powder coat painted with a wrinkle finish. The shoulder pad is cushioned for comfort.
The CA Shoulder Rig can be adjusted to fit your needs and body type. Most modifications can be done using knobs on the device and you can arrange the camera and attach it to the rig using a standard 1/4-20 screw. This knob can be reached through a 3" (7.5 cm) opening on the camera platform. The angle that the camera is pointing at can also be adjusted. Using a knob, you can adjust the Back Pad or even remove it when not required. The Shoulder Rig features a Telescopic Support Arm that can be extended or retracted to fit your body type and can be removed when not needed. It can also be attached to a tripod head via an optional quick-release plate that can be fixed underneath the camera platform.
Positioned on either side of the shoulder that the rig is worn, the Hand6 Quick Handle consists of 2 handles. Each handle is ergonomically designed and can be rotated 360deg., offering a firm grip. The handles are equipped with buttons which when pressed allow the handle to be rotated and when released hold the handle tightly in place.
The Pad1 Back Pad acts as a counter-weight and can be separated from the rig by means of a screw knob. It can easily be adjusted to suit your body type and adjusts upwards and downwards through a distance of 0.25-1" (3 cm) and through 360deg. from left to right. The Back Pad features a 1/4-20 threaded hole that can be used to attach the Shape Box or another compatible accessory. It weighs 0.35 lb (0.160 kg).
Accessories such as wireless audio receivers, audio recorders, hard drive recorders and battery packs can be stored within the Shape Box. You can use the Shape Box video accessories holder to hold all accessories in proximity to the camera. Proximity to the camera reduces the length of the connectors and cables required for the accessories. You can attach the Shape Box below the camera platform of compatible camera supports or directly beneath a camera via a 1/4-20 screw located on upper side of the box.
Two 1/4-20 threaded holes on the lower side of the Shape box allow you to connect it above the camera platform of compatible camera supports. Open front and rear ends of the box allow you to access the housed accessory without hassles for plugging/unplugging cables or accessing controls at the front. Neoprene foam pads measuring 3/16" on the upper and lower surfaces of the box hold the accessory in place. The Shape Box is made of 1/8" aluminum and has a powder coat paint finish.
You can augment the stability of the camera support using the Counter Weight that balances or counterweighs the camera at the rear. Some of the camera weight is also relieved from the handles the by the 4 lb padded Counter Weight. You can attach the Counter Weight to the camera support via a screw knob. You can easily position the counter weight to fit your body type and a simple removal mechanism allows you to detach it from the camera support.
|Quick Handle Rotation||360 deg.|
|Compatibility||Canon XH-A1, XH-A1s, XH-G1, XH-G1s, GL2, GL-2E, 5D MARK I, 5D MARK II, 7D, EOS Rebel T1i, VIXIA HF S11, VIXIA HF S10, VIXIA HF S100, VIXIA HG21
Nikon D5000, D300s, D3s, D3x
Panasonic AG-HVX200A P2HD, AG-HPX170 P2HD, AG-HVX200AE PAL P2HD, AG-HMC150, AG-HMC40, AG-DVX100B, HDC-TM300, HDC-HS300, Lumix GH1
Sony HDR-FX1000, HDR-FX7, HDR-CX520V, HDR-XR520V, PMW-EX1, PMW-EX1R, PMW-EX3, HVR-A1U, HVR-A1E, HVR-V1P, HVR-V1U, HVR-Z5P, HVR-Z5U, HVR-Z7P, HVR-Z7U
|Total height (with handles)||7 inch / 18 cm|
|Total maximum length (with back pad)||21 inch / 53 cm|
|Camera platform width||2 inch / 5 cm|
|Shoulder pad width||3 inch / 8 cm|
|Weight||3.00 lbs / 1.360 kg|
