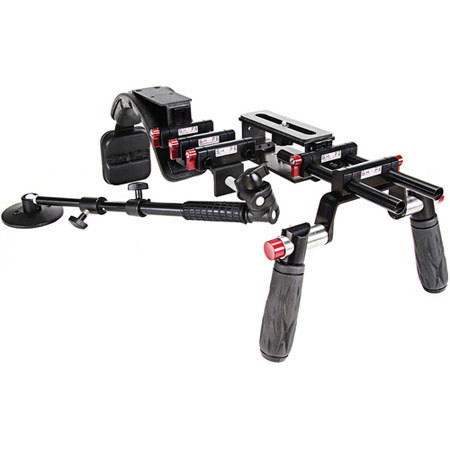

The Shape Composite Stabilizer Camera Support is a hand-held professional camera support device with an adjustable camera platform. Featuring the Back Pad, Adjustable Composite Shoulder Pad, two 15mm male-female rod (6"), Rod Block, Off-set Rail Block, 15mm Rod Riser System, Quick Handle and Telescopic Support Arm with Rod Block, the Composite Stabilizer secures the camera firmly with accessories for mobile applications.
Weighing 0.35 lb (0.160 kg), the Back Pad is a professional video accessory that offers augmented camera support stability and comfort. Padded on one side, the pad is attached to the shoulder rig via a screw knob. You can adjust the position of the Back Pad to suit your body type with a vertical adjustment range of 1-1/4" and a horizontal adjustment spanning 360deg. .
A screw knob allows easy attachment and removal of the Back Pad from the support with a 1/4-20" threaded hole. The Adjustable Composite Shoulder Pad rests on your shoulder such that the body supports the weight of the camera and its accessories and is padded for superior comfort. Attached on top is the Rod Block, which is used to hold 15mm rods and attach a camera platform to the front of these rods. The stabilizer also includes two 15mm male-female rods (6") that have female and male threaded ends (1/2-13").
The Rod Block features 2 screw-threaded holes that are used to attach a component such as the Quick Handle to 15mm rods. Allowing the component to slide along the rods, the Rod Block secures the component attached by simply tightening a small red knob. Made of lightweight anodized aluminum, it is strong and durable.
Used to attach the Paparazzi Riser to the left or to the right of the 15mm rods, the Off-set Rail Block has 2 screw-threaded holes on its side used to screw the Off-set Rail Block to the Paparazzi Riser. The 15mm Rod Riser System is used as an accessory for matte boxes, 35mm lens adaptor and follow focus mechanisms. By supporting the weight of these accessories, it avoids additional weight from being put on the lens. It is composed of a Paparazzi Riser, Sliding Rod Block and two 15mm aluminum rods.
The Quick Handle + Rod Block is a professional video stabilization accessory with 2 camera handles, each providing an individual rotation angle of 360deg. . You can attach the handle to the camera platform using a simple screw knob. A simple push button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum Rod Block, it offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block.
The Telescopic Support Arm + Rod Block includes a Manfrotto 233B Camera Mount Bracket with a 4" cup that provides a large surface contact area and a Shape Rod Block. Augmented stability and versatility is provided for camera support using the Telescopic Support Arm that can be easily attached to the shoulder rig via an "L" bracket. You can extend the Telescopic Support Arm from a length of 14-20".
Rotation of 360deg. along the vertical and horizontal axes is possible via the rotating arm. Easy attachment and removal of the cup attributes versatility to the Telescopic Support Arm. Removal of the cup enables you to use the arm for supporting accessories such as a microphone or camera light.
