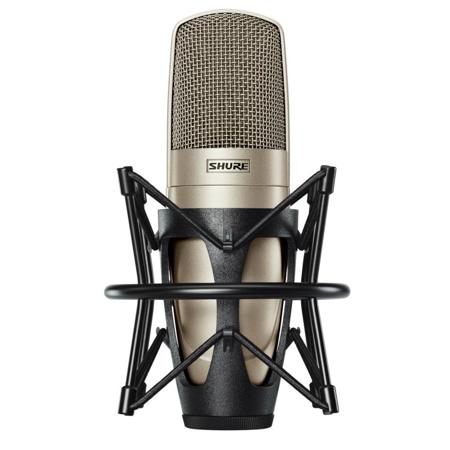

Shure KSM32 Embossed Single-Diaphragm Microphone with Aluminum Case, Champagne

Shure
SKU: SHKSM32SL MFR: KSM32/SL

List Price: $686.00

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $55.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $59.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $154.95
20% Off

Our Price

$549.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Shure KSM32

The Shure KSM32 is a ruggedly built, large diaphragm cardioid condenser microphone (Champagne). Its class-A circuitry and extended "sweet spot" delivers a smooth, detailed response, making it well-suited for recording sources from piano to percussion or violin to vocals.

Shure KSM32 Features

  • Class A, transformerless preamplifier circuitry eliminates cross-over distortion for improved linearity across the full frequency range.
  • Embossed, high-compliance diaphragm provides extended low-frequency response.
  • Ultra-thin, gold-layered, low-mass, Mylar diaphragm for excellent transient response
  • 15 dB attenuation switch for handling extremely high sound pressure levels (SPL)
  • Switchable low-frequency filter provides greater flexibility to reduce background noise or to counteract proximity effect.
  • Integrated three-stage pop protection grille reduces "pop" and other breath noise
  • Internal shock mount reduces transmission of handling noise
  • Extended frequency response
  • Very low self-noise
  • Exceptional low-frequency reproduction
  • High output level
  • High input SPL capability
  • No cross-over distortion
  • Extremely uniform polar response
  • Superior common mode rejection and suppression of radio frequency interference

Shure KSM32 Specifications

Cartridge Type
Permanently-biased Condenser
Frequency Response
20 to 20,000 Hz
Directional Polar Pattern
Cardioid
Output Impedance
150 ohms (actual)
Attenuation Switch
0 or -15 dB attenuation
Low Frequency response switch
Flat -6 db/octave below 115 Hz
-18 dB/octave below 80 Hz
Phantom Power
48 Vdc +/- 4 Vdc (IEC-268-15/DIN 45 596), positive pins 2 and 3
Current Drain
4.65 mA typical at 48 Vdc
Common Mode Rejection
= 50 dB, 20 Hz to 20 kHz
Polarity
Positive pressure on diaphragm produces positive voltage on output pin 2 relative to pin 3
Sensitivity
-36 dBV/Pa (16 mV) (typical, at 1000 Hz; 1 Pa = 94 dB SPL)
Self-noise
13 dB (typical, equivalent SPL; A-weighted, IEC 651)
Maximum SPL at 1000 Hz
139 (154) dB
133 (148) dB
Output Clipping Level
2500 ohm load (Attenuator on): 9 dBV
1000 ohm load (Attenuator on): 3 dBV
Dynamic Range
2500 ohm load: 126 dB
1000 ohm load: 119 dB
Signal to Noise ratio
81 dB
Total Harmonic Distortion (THD)
< 0.08% for a 120 dB equivalent SPL input, (2500 ohm load)
Dimensions
55.9 mm / 2.20"
maximum body diameter, 187 mm / 7.36" long
Weight
17.3 oz / 490.45 g
