Shure ULXP124/58-G3 Wireless Dual Channel Mixed Microphone System (G3/470-505 MHz)

SKU: SHLXP12458G3 MFR: ULXP124/58-G3
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,678.00 Regular Price
- $29.01Adorama Kit Discount

Our Price

$1,648.99 $65 per week
Free Shipping
Add to Wishlist

Protect your investment

About the Shure ULXP124/58-G3

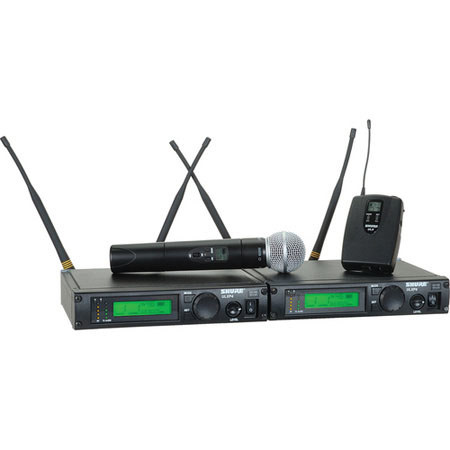

The Shure ULXP124/58-G3 ULX Professional Series wireless microphone systems provide professional wireless microphone solutions for broadcast, performances, conferences, houses of worship, schools and businesses. This combo-system includes two ULXP4 diversity receivers, a ULX1 bodypack transmitter and ULX2 handheld transmitter with a Shure SM58 cardioid head.

The ULXP4 receiver operates on UHF frequencies, offering over 1400 user selectable frequencies to choose from. All the standard features of the ULXS4 receiver are present and in addition the ULXP4 is equipped with features that meet the demands of professionals. Additional features include TV channel display, frequency and volume locks, scan indicator, squelch indicator and receiving antenna indicators. The dual antenna design represents diversity technology, which provides optimum resistance against RF interference and drop-out. Dual internal receivers are set to the same frequency and are constantly vying for the strongest reception. The receiver features a balanced XLR output that is switchable between mic and line level signal as well as an unbalanced 1/4" phone output. A multifunction LCD provides group and channel information, transmitter battery life and more. Two 5-segment LEDs provide audio and RF metering.

The ULX1 body-pack transmitter is lightweight and portable featuring a belt-clip for use with camera and guitar straps, belts, waistbands, etc. The transmitter also features over 1400 user selectable UHF frequencies and a comprehensive LCD displays group and channel information and more. An input attenuation switch allows 0 dB and 20 dB output. Adjustable audio gain control is provided and the transmitter boasts 8-9 hour battery life on a single 9 V battery.

The ULX2 handheld transmitter features the Shure SM58 cardioid capsule. Like the body-pack transmitter, the ULX2 provides 1400 user selectable frequencies, a comprehensive LCD display provides channel and frequency information, battery life and more. The cardioid polar pattern is effective against off-axis noise, causing feedback and unwanted ambient noise. The ULX2 is powered with a standard 9 V alkaline battery (included).

Shure ULXP124/58-G3 Includes

  • Shure ULX-P4D 2-ULXP4 Receiver with 2-PS40 (X1)
  • ULX-1 Body Pack Transmitter (X1)
  • ULX-2 Handheld Transmitter
  • SM58 Microphone (X1)
  • WA371
  • Swivel Adapter
  • WA555 Switch Cover for LX2
  • 2 x PS40 Power Supplies
  • Zippered Transmitter Carry Bag for ULX2/58 (26A14)
  • Zippered Transmitter Carry Bag for ULX-1 (26A13)
  • Small Adjustment Screwdriver (80A498)
  • Single and Dual Rack Mounting Hardware
  • 9V Alkaline Battery
  • Shure Warranty

Shure ULXP124/58-G3 Features

  • ULXP4 Diversity Receiver: Automatic Frequency Selection with group scan function
  • ULXP4 Diversity Receiver: Over 1400 selectable frequencies
  • ULXP4 Diversity Receiver: Predictive Diversity
  • ULXP4 Diversity Receiver: 5-segment audio meter
  • ULXP4 Diversity Receiver: 5-segment RF meter
  • ULXP4 Diversity Receiver: Advanced multi-function LCD
  • ULXP4 Diversity Receiver: 3-segment transmitter battery fuel gauge
  • ULXP4 Diversity Receiver: Squelch adjustment
  • ULXP4 Diversity Receiver: Remote-controllable 1/2 wave antenna
  • ULXP4 Diversity Receiver: Frequency and volume lockout
  • ULXP4 Diversity Receiver: Rugged metal chassis
  • ULXP4 Diversity Receiver: Furnished rack hardware
  • ULXP4 Diversity Receiver: Locking DC connector
  • ULXP4 Diversity Receiver: XLR and 1/4" outputs
  • ULX1 And ULX2 Transmitter: 3-segment battery fuel gauge
  • ULX1 And ULX2 Transmitter: Backlit LCD shows group and channel
  • ULX1 And ULX2 Transmitter: Automatic Frequency Selection with group scan
  • ULX1 And ULX2 Transmitter: Frequency and power settings
  • ULX1 And ULX2 Transmitter: Up to 1400 selectable frequencies
  • ULX1 And ULX2 Transmitter: 8 hour battery life
  • ULX1 And ULX2 Transmitter: 5-segment audio meter
  • ULX1 And ULX2 Transmitter: 300 ft (92 m) operating range
  • ULX1 And ULX2 Transmitter: 5-segment RF meter
  • ULX1 And ULX2 Transmitter: -20 dB pad switch on ULX1

Shure ULXP124/58-G3 Specifications

System: Type Rack/Table Top Mountable UHF Diversity Wireless Handheld System
System: RF Carrier Frequency Range 470.000 to 865.000 MHz (Available frequencies depend on the applicable regulations in the country where the system is used). Refer to the frequency supplement sup- plied with the system.
System: Approx. Working Range 300 Feet (100m) NOTE: Actual working range depends on RF signal absorption, reflection and interference
System: Overall Frequency Response 25Hz - 15kHz, (±2 dB)
System: Impedance ULX1 (input): 1 Megaohm
ULXS4, ULXP4 (output): 50ohms at line level; 2000 ohms at mic level
System: Modulation ±38 kHz deviation compressor-expander system with pre and de-emphasis
System: Number Of Channels Over 1400 User Selectable Frequencies (Frequency G3 / 470 - 505 MHz)
System: Dynamic Range >100 dB, A-weighted
System: RF Sensitivity 1.26 uV for 12 dB SINAD (typical)
System: Image Rejection 80 dB typical
System: Spurious Rejection 75 dB typical
System: Ultimate Quieting Reference ±38 kHz deviation: > 105 dB, A-weighted
System: Distortion System Distortion (reference ±38 kHz deviation, 1 kHz modulation)
0.3% total harmonic distortion, typical
System: Number Of Simultaneous Systems Up to 20
System: Operating Temperature - 4 to 120deg. F (-20 to 49deg. C)
ULXP4 Receiver: Type ULXP4 Professional Rack/Table-Top Mount Receiver
ULXP4 Receiver: Type of Outputs 8 to 9 hours (with 9V alkaline battery)
ULXP4 Receiver: Headphone Monitoring No
ULXP4 Receiver: Power Requirements 14 - 18VDC (negative ground), 550mA External Power Supply - PS40, Included, Now with Locking DC Connector
ULXP4 Receiver: Display Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning.
ULXP4 Receiver: Mounting Options Rack / Table Top Mount 1/2 Rack Space
ULXP4 Receiver: Output Level XLR connector (into 600 ohm load): +3.9 dBV (line), -17 dBV (mic)1/4 inch connector (into 3000 ohm load): -2 dBV (±38 kHz deviation, 1 kHz tone)
ULXP4 Receiver: Antenna Type Internal
ULX1 Transmitter: Type Body-pack UHF Transmitter
ULX1 Transmitter: Type Input Connector TAF4 4-Pin Mini Connector
ULX1 Transmitter: Battery Type 9V alkaline battery
ULX1 Transmitter: Battery Approx. Life 8 to 9 hours
ULX1 Transmitter: Mute Switch Yes
ULX1 Transmitter: Level Control Yes, 25dB Gain Adjustment Range
ULX1 Transmitter: Polarity Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output
ULX1 Transmitter: Antenna Type Removable 1/2 Wave
ULX1 Transmitter: Display Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning)
ULX2 Transmitter: Type Handheld UHF Transmitter
ULX2 Transmitter: Type Input Connector Microphone Element is Attached (Screwed On) to Transmitter
ULX2 Transmitter: Type of Microphone SM58 Dynamic Microphone Head
ULX2 Transmitter: Polar Pattern Cardioid
ULX2 Transmitter: Battery Type 9V alkaline battery
ULX2 Transmitter: Battery Approx. Life 8 to 9 hours
ULX2 Transmitter: Mute Switch Yes
ULX2 Transmitter: Level Control Yes, 25dB Gain Adjustment Range
ULX2 Transmitter: Antenna Type Internal
Dimensions ULXP4 Receiver: 1.72 x 8.56 x 6.88" (43.68 x 217.4 x 174.75mm)
ULX1 Transmitter: 3.86 x 2.68 x 1.10" (98 x 68 x 27.94mm)
Weight ULXP4 Receiver: 2 lb, 7 oz (1.10 kg)
ULX1 Transmitter: 2.8 oz (79.37 g) without battery
ULX2 Transmitter: 10.2 oz. (289.2 g)
