Shure

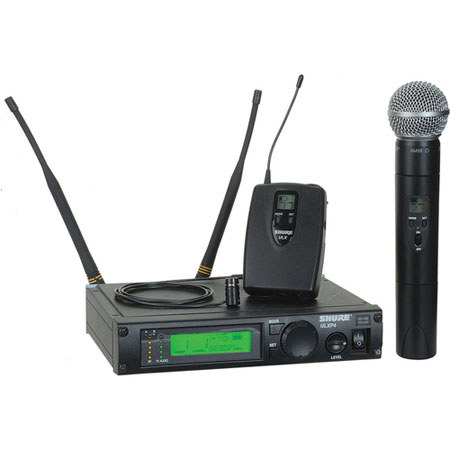

Shure ULXP124/85-G3 Wireless Dual Mixed Microphone System, ULXP4 Diversity Receiver, ULX2 Handheld Transmitter, ULX1 Bodypack Transmitter

SKU: SHLXP12485G3 MFR: ULXP124/85-G3
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,449.00 List Price

Our Price

$1,159.00
Free Shipping
Qty:
Add to Wishlist

Protect your investment

About the Shure ULXP124/85-G3

The Shure ULX Professional Series ULXP124/85-G3 wireless microphone systems provide professional wireless microphone solutions for broadcast, performances, conferences, houses of worship, schools and businesses. This combo-system includes a ULXP4 diversity receiver, a ULX1 body-pack transmitter, WL185 lavalier and ULX2 handheld transmitter with a Shure SM58 cardioid head.

The ULXP4 receiver operates on UHF frequencies, offering over 1400 user selectable frequencies to choose from. All the standard features of the ULXS4 receiver are present and in addition the ULXP4 is equipped with features that meet the demands of professionals. Additional features include TV channel display, frequency and volume locks, SCAN indicator, squelch indicator and receiving antenna indicators. The dual antenna design represents diversity technology, which provides optimum resistance against RF interference and drop-out. Dual internal receivers are set to the same frequency and are constantly vying for the strongest reception. The receiver features a balanced XLR output that is switchable between mic and line level signal as well as an unbalanced 1/4" phone output. A multifunction LCD provides group and channel information, transmitter battery life and more. Two 5-segment LEDs provide audio and RF metering.

The ULX1 body-pack transmitter is lightweight and portable, featuring a belt-clip for use with camera and guitar straps, belts, waistbands, etc. The transmitter also features over 1400 user selectable UHF frequencies and a comprehensive LCD displays group and channel information and more. An input attenuation switch allows 0 dB and 20 dB output. Adjustable audio gain control is provided and the transmitter boasts 8-9 hour battery life on a single 9 V battery.

The ULX-2 handheld transmitter features the Shure SM58 cardioid capsule. Like the body-pack transmitter, the ULX-2 provides 1400 user selectable frequencies and a comprehensive LCD display provides channel and frequency information, battery life and more. The cardioid polar pattern is effective against off-axis noise, causing feedback and unwanted ambient noise. The ULX-2 is powered with a standard 9 V alkaline battery (included).

Shure ULXP124/85-G3 Includes

  • Shure ULXP4 Diversity Receiver
  • ULX1 Bodypack Transmitter
  • WL185 Lavalier Microphone
  • ULX2 Handheld Transmitter
  • SM58 Cardioid Head
  • PS40 Power Supply
  • 9V Alkaline Battery
  • Shure Warranty

Shure ULXP124/85-G3 Features

  • Automatic Frequency Selection with group scan function
  • Over 1400 selectable frequencies
  • Predictive Diversity
  • 5-segment transmitted audio signal strength meter
  • 5-segment RF meter
  • 3-segment transmitter battery fuel gauge
  • Advanced multi-function LCD displays group and channel
  • Mic/Line switch
  • Remotable 1/2-wave antenna
  • Frequency and volume lockout
  • XLR and 1/4-inch output
  • Rugged metal chassis
  • 1/2 rack design

Shure ULXP124/85-G3 Specifications

Type of System Rack/Table Top Mountable UHF Diversity Wireless Handheld System
RF Carrier Frequency Range 470.000 to 865.000 MHz
Approx. Working Range 300 Feet (100m)
Overall Frequency Response 25 Hz - 15 kHz, (±2 dB)
Impedance ULX1 (input): 1 Megaohm
ULXS4, ULXP4 (output): 50ohms at line level; 2000 ohms at mic level
Modulation ±38 kHz deviation compressor-expander system with pre and de-emphasis
No. Of Channels Over 1400 User Selectable Frequencies (Frequency G3 / 470 - 505 MHz)
Dynamic Range >100 dB, A-weighted
RF Sensitivity 1.26 uV for 12 dB SINAD (typical)
Image Rejection 80 dB typical
Spurious Rejection 75 dB typical
Ultimate Quieting Reference ±38 kHz deviation: > 105 dB, A-weighted
Distortion System Distortion (reference ±38 kHz deviation, 1 kHz modulation)
0.3% total harmonic distortion, typical
No. Of Simultaneous Systems Up to 20
Operating Temperature - 4 to 120deg. F (20 to 49deg. C)
Type of Receiver ULXP4 Professional Rack/Table-Top Mount Receiver
Receiver: Type of Outputs 8 to 9 hours (with 9V alkaline battery)
Receiver: Headphone Monitoring No
Receiver: Power Requirements 14 - 18VDC (negative ground), 550mA
External Power Supply - PS40, Included
Receiver: Display Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning.
Receiver: Mounting Options Rack / Table Top Mount 1/2 Rack Space
Receiver: Output Level XLR connector (into 600 ohm load): +3.9 dBV (line), -17 dBV (mic)
1/4 inch connector (into 3000 ohm load): -2 dBV
(±38 kHz deviation, 1 kHz tone)
Receiver: Antenna Type Internal
Body-pack Transmitter: Input Connector TAF4 4-Pin Mini Connector
Body-pack Transmitter: Microphone WL185 lavalier
Body-pack Transmitter: Polar Pattern Cardioid
Body-pack Transmitter: Battery Life 8 to 9 hours (with 9V alkaline battery)
Body-pack Transmitter: Mute Switch Yes
Body-pack Transmitter: Level Control Yes, 25dB Gain Adjustment Range
Body-pack Transmitter: Polarity Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output
Body-pack Transmitter: Antenna Type Removable 1/2 Wave
Body-pack Transmitter: Display Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning)
Handheld Transmitter: Input Connector Microphone Element is Attached (Screwed On) to Transmitter
Handheld Transmitter: Microphone Type SM58 Dynamic Microphone Head
Handheld Transmitter: Polar Pattern Cardioid
Handheld Transmitter: Battery Life 8 to 9 hours (with 9V alkaline battery)
Handheld Transmitter: Mute Switch Yes
Handheld Transmitter: Level Control Yes, 25dB Gain Adjustment Range
Handheld Transmitter: Antenna Type Internal
Dimensions Receiver: 1.72 x 8.56 x 6.88" (43 x 217 x 174mm)
Body-pack UHF Transmitter: 3.86 x 2.68 x 1.10" (98 x 68 x 27.94mm)
Weight Receiver: 2 lb, 7 oz (1.10 kg)
Body-pack UHF Transmitter: 2.8 oz. (79 g) without battery
Handheld UHF Transmitter: 10.2 oz. (289 g)
