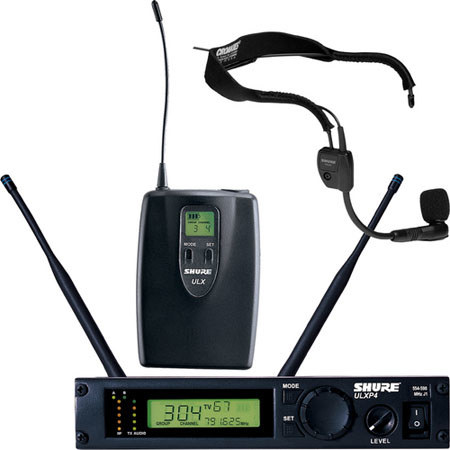

Shure ULXP14/30-M1 Wireless Headset Microphone System with ULXS4 Receiver, ULX1 Transmitter, WH30TQG Mic, Frequency M1/662-698 MHz

SKU: SHLXP1430M1 MFR: ULXP14/30-M1
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

$908.00 Regular Price
- $9.00Adorama Kit Discount

Our Price

$899.00 $36 per week
Free Expedited Shipping
Add to Wishlist In Stock

Protect your investment

About the Shure ULXP14/30-M1

This Shure ULXP14/30-M1 Bundle comes with: and Shipping is free! . Bonus: No sales tax either, unless you live in New York or New Jersey.

The Shure ULXP14/30-M1 wireless microphone system provides professional wireless microphone solutions for broadcast, performances, conferences, houses of worship, schools and businesses. The system includes the ULXP4 diversity receiver, ULX1 body-pack transmitter and WH30TQG headset microphone.

The ULXP4 receiver operates on UHF frequencies, offering over 1400 user selectable frequencies to choose from. All the standard features of the ULXS4 receiver are present and in addition the ULXP4 is equipped with features that meet the demands of professionals. Additional features include TV channel display, frequency and volume locks, SCAN indicator, squelch indicator and receiving antenna indicators. The dual antenna design represents diversity technology, which provides optimum resistance against RF interference and drop-out. Dual internal receivers are set to the same frequency and are constantly vying for the strongest reception. The receiver features a balanced XLR output that is switchable between mic and line level signal as well as an unbalanced 1/4" phone output. A multifunction LCD provides group and channel information, transmitter battery life and more. Two 5-segment LEDs provide audio and RF metering.

The ULX1 body-pack transmitter is light weight and portable featuring a belt-clip for use with camera and guitar straps, belts, waistbands, etc. The transmitter also features over 1400 user selectable UHF frequencies and a comprehensive LCD displays group and channel information and more. An input attenuation switch allows 0 dB and 20 dB output. Adjustable audio gain control is provided and the transmitter boasts 8-9 hour battery life on a single 9V battery.

The WH30TQG microphone features a cardioid polar pattern, providing maximum gain before feedback. Its wide 40 Hz to 20 kHz frequency response and custom EQ enhances the signal quality of vocals. The capsule is designed to withstand high sound pressure levels, minimizing signal peaking and overload. The WH30 features a CROAKIES adjustable headset, providing a comfortable fit.

Shure ULXP14/30-M1 Includes

  • Shure ULX-P4 Receiver with PS40 (M1)
  • ULX-1 Body Pack Transmitter (M1)
  • WH30TQG Cardioid Headworn Mic
  • Shure Warranty

Shure ULXP14/30-M1 Features

  • ULX1 bodypack transmitter and WH30TQG subminiature headworn microphone
  • Automatic Frequency Selection with group scan function
  • Up to 1440 selectable frequencies
  • 5-segment transmitted audio signal strength meter
  • RF indicator
  • 3-segment transmitter battery fuel gauge
  • Advanced multi-function LCD displays group and channel
  • Mic/Line switch
  • Detachable 1/4-wave antenna
  • XLR and 1/4" output
  • Rugged plastic chassis
  • 1/2 rack design

Shure ULXP14/30-M1 Specifications

RF Carrier Frequency Range M1 / 662 - 698 MHz
Approx. Working Range 300 Feet (100m)
Overall Frequency Response 25Hz - 15kHz, (±2dB)
Signal-to-Noise Ratio Greater Than 90dB
No Of Channels Over 1400 User Selectable Frequencies
No Of Simultaneous Systems Up to 20
Receiver: Type of Outputs Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold
Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd
Receiver: Headphone Monitoring No
Receiver: Power Requirements 14 - 18VDC (negative ground), 550mA External Power Supply - PS40, Included, Now with Locking DC Connector
Receiver: Display Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning
Receiver: Mounting Options Rack / Table Top Mount 1/2 Rack Space
Receiver: Antenna Type Wire Type
Transmitter: Type of Input Connector TAF4 4-Pin Mini Connector
Transmitter: Type of Microphone WH30TQ Headworn Condenser Microphone
Transmitter: Polar Pattern Cardioid
Transmitter: Interchangeable Mic Heads Yes, Use any of the Shure Lavalier, Headset, Instrument Microphones, or Guitar/Bass/XLR Adapter Cables that terminate to a Mini 4-pin TA4F Connector
Transmitter: Battery Type/Approx. Life Non-Rechargeable Type
9V Lithium Battery / 21 Hours
9V Alkaline Battery / 8 - 9 Hours
9V Carbon-Zinc Battery / 5 Hours
Rechargeable Type
Ni-Cad Battery / 2 Hours
9V Ni-MH Battery / 2.5 Hours
Transmitter: Mute Switch Yes
Transmitter: Level Control Yes, 25 dB Gain Adjustment Range
Transmitter: Antenna Type Remotable 1/2 Wave, Rear Mounted
Transmitter: Display Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning)
Dimensions Transmitter: 3.86 x 2.68 x 1.10" (98.0 x 68 x 27.9mm)
Receiver: 1.72 x 8.56 x 6.88" (43 x 217 x 175mm)
Weight Transmitter: 2 lbs., 7 oz. (1105 g)
Receiver: 2.8 oz. (79 g) without Battery
