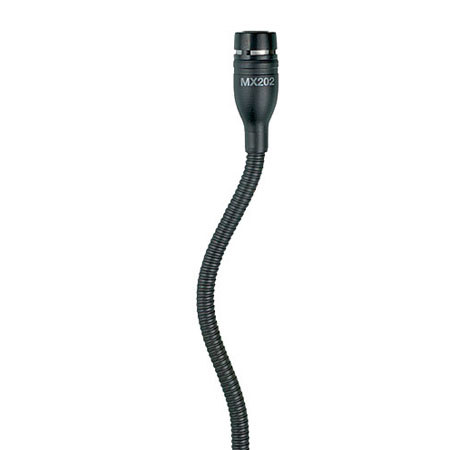

Shure MX202BP/N Mini-Condenser Microphone, No Cartridge, Black
See all Shure items

Shure MX202BP/N Mini-Condenser Microphone with 30' Cable, Plate Mounted Pre-Amplifier, No Cartridge, Black

SKU: SHMX202BPN
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Shure MX202BP/N Specifications

  • Transducer

    Condenser

  • Polar Pattern

    None, Must Purchase One (or More) of the Following Capsules:
    Cardioid
    Supercardioid
    Omnidirectional

  • Frequency Response

    50 Hz - 17 kHz

  • Dynamic Range (Typical)

    96.2 dB, (@ 1 kW Load)

  • Signal-to-Noise Ratio

    Cardioid: 66 dB
    Supercardioid: 67.5 dB
    Omini-directional: 73.5 dB (All Referenced @ 94 dB SPL)

  • Maximum Input Sound Level

    Cardioid: 124.2 dB
    Supercardioid: 122.7 dB
    Omnidirectional: 116.7 dB

  • Power Requirements

    Phantom, (11 - 52v DC)

  • Output Impedance

    150 Ohms, (180 Ohms Actual)

  • Output Connectors

    Screw Terminals, (Plate Mount)

  • Cable Length

    30 ft (9.1 m)

  • Dimensions (L x Dia)

    Microphone: 5.69 x .46"(14.45 x 11.68 cm)
    Mounting Plate: 4.45 x 2.70"(11.3 x 6.9 cm)

  • Weight

    17.8 oz. (504.6 g)

3 Accessories for Shure MX202BP/N Mini-Condenser Microphone with 30' Cable, Plate Mounted Pre-Amplifier, No Cartridge, Black

  • All Accessories (3)
  • Microphone Accessories (1)Required Item
  • Covers & Caps (2)Required Item
Shure R183 Omnidirectional Cartridge for Microflex MX, WL183 Microphones, Black
Shure R183 Omnidirectional Cartridge for Microflex MX, WL183 Microphones, Black
$67.00

Required

Shure R184 Supercardioid Cartridge, Black
Shure R184 Supercardioid Cartridge, Black
$67.00

Required

Shure R185 Cardioid Cartridge, Black
Shure R185 Cardioid Cartridge, Black
$67.00

Required

About Shure MX202BP/N

The Shure MX202BP/N Mini-Condenser Microphone is small, unobtrusive and designed for overhead mounting in houses of worship, theater stages, lecture halls and more. It delivers high quality sound in a compact, adjustable design. The microphone reproduces sound with minimal RF interference or electromagnetic hum.

Shure MX202BP/N Features

  • Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
  • Balanced, transformerless output for increased immunity to noise over long cable runs
  • Preamp options available offer easy installation in ceilings or microphone stands
  • When combined with the high sensitivity cartridge's wide frequency response, it provides accurate sound reproduction with minimum RF interference or electromagnetic hum

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Wide dynamic range and frequency response
  • Balanced, transformerless output
  • Preamp options available offer easy installation in ceilings or microphone stands
  • When combined with high sensitivity cartridge's wide frequency response it
  • Minimum RF interference or electromagnetic hum
  • Provides accurate sound reproduction

What's in the box:

  • Shure MX202BP/N Mini-Condenser Microphone
  • 30' Cable
  • Plate Mounted Pre-Amplifier
  • Plate Mounting Hardware
  • Shure Warranty
