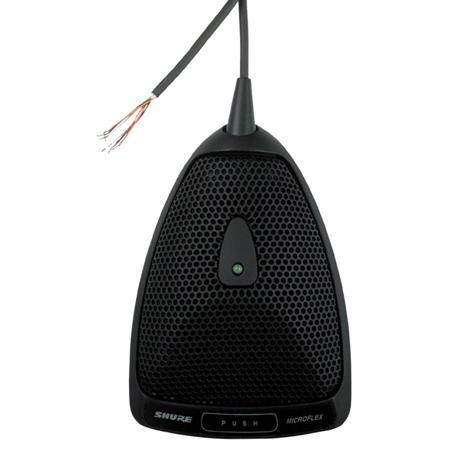

Shure MX392/O Omnidirectional Condenser Boundary Microphone
See all Shure items

Shure MX392/O Omnidirectional Condenser Boundary Microphone, 50 to 17,000 Hz Frequency Response

SKU: SHMX392O
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Shure MXW6X Wireless Omnidirectional Boundary Mic Tx, Black, Z10: 1920-1930MHz
$922.00
$737.00
undefined undefined: Picture 1 regular
Shure ULXD6 Omnidirectional Boundary Mic Transmitter, Band H50: 534 to 598 MHz
$895.00
$639.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Shure MX392/O Specifications

  • Transducer

    Condenser

  • Frequency Response

    50 to 17,000 Hz

  • Polar Pattern

    Omnidirectional

  • Output Impedance

    EIA Rated at 150 ohms (180 ohms actual)

  • Sensitivity

    -22.0 dBV/Pa (79.4 mV)(at 1 kHz, open circuit voltage)

  • Maximum Sound Pressure Level

    111.5 dB (1 kHz at 1% Total Harmonic Distortion, 1 k ohm load)

  • Signal to Noise Ratio

    76.5 dB (referenced at 94 dB SPL)

  • Equivalent Output Noise (A-weighted)

    17.5 dB SPL

  • Dynamic Range

    94.0 dB

  • Common Mode Rejection

    45 dB minimum, 10 Hz to 100 kHz

  • Switch Attenuation

    50 dB minimum

  • Preamplifier Output Clipping Level

    -6 dBV (0.5 V)

  • Polarity

    Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector

  • Logic Connections

    LED IN: Active low (<1.0v), TTL compatible. Absolute maximum voltage: -0.7V to 50V
    SWITCH OUT: Active low (<0.5V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 24V (up to 50V through 3 k ohms)

  • Power Requirements

    11 to 52 Vdc phantom
    2.0 mA current consumption

  • Environmental Requirements

    Operating Temperature Range: -18 to 57 degrees C (0 to 135 degrees F)
    Relative Humidity: 0 to 95%

  • Dimensions (L x W x H)

    4.263 x 3 x 1.621" (108.3 x 76.3 x 41.2 mm)

  • Weight

    4.16 oz. (117.9 g)

0 Accessories for Shure MX392/O Omnidirectional Condenser Boundary Microphone, 50 to 17,000 Hz Frequency Response

About Shure MX392/O

Shure MX392/O Features

  • Flat frequency response across the vocal range for uncolored sound
  • Sleek, low-profile design for unobtrusive appearance
  • Balanced, transformerless output for increased immunity to noise over long cable runs
  • Programmable membrane on/off switch plus LED on/off indicator
  • LED logic input and switch logic output terminals for remote control or use with automatic mixers (MX392 models only)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Flat frequency response across the vocal range
  • Sleek, low-profile design for unobtrusive appearance
  • Balanced, transformerless output
  • Programmable membrane on/off switch plus LED on/off indicator
  • LED logic input and switch logic output terminals
