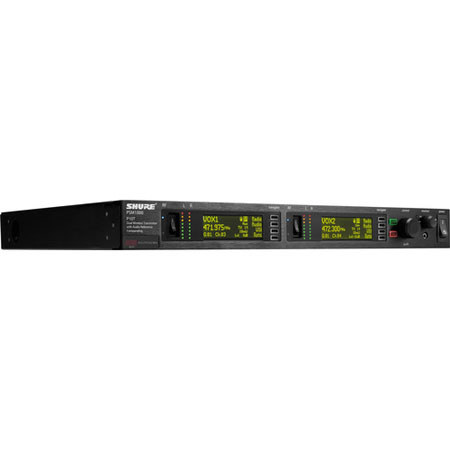

Shure P10T-L8 Dual Wireless Transmitter, L8/626-698 MHz Frequency Band

Shure
SKU: SHP10TL8 MFR: P10T=-L8
Shure P10T=-L8: Picture 1 thumbnail Shure P10T=-L8: Picture 2 thumbnail

List Price: $3,881.00

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $114.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $174.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $399.95
20% Off

Our Price

$3,105.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Shure P10T=-L8

The Shure P10T-L8 Dual Wireless Transmitter is intended for use with the P10R wireless bodypack personal listening receivers, as part of the PSM1000 series. The dual channel P10T allows for up to 2 programs to be transmitted simultaneously, on different frequency channels. The P10T features balanced 1/4" phone and XLR connections, as well as an extra 1/4" input on the front. Its 72 MHz wide tuning bandwidth is sure to provide stable transmission. Additional features include networked remote control via Wireless Workbench software and PSM900 backwards compatibility.

Shure P10T=-L8 Features

  • Full rack, dual-channel transmitter in a professional, touring grade chassis
  • 72 MHz wide tuning range provides flexibility and performance in crowded, unpredictable RF environments
  • Networkable over Ethernet connection to provide comprehensive frequency coordination and transmitter remote control via Wireless Workbench software: RF mute enable/disable, RF output power adjustments, Aux/line level, Audio input level, Channel/device name edit, Firmware updates
  • Backwards-compatible with PSM900 receivers
  • RF Mute Switch allows system setup without causing RF interference
  • Sync RF scan information from a P10R bodypack quickly and easily over IR link
  • Switchable 10/50/100 mW output power provides a robust RF link in a variety of performance environments
  • Spectrum display provides a detailed frequency plot on the menu screen with selectable zoom
  • Front panel audio input gain adjustment and LED level meter with clipping indicator
  • Exceptional transmitter linearity vastly reduces frequency intermodulation, allowing more compatible channels per frequency range
  • High-contrast LCD with grouped menu items provides an intuitive user interface
  • Front or back mountable antennas
  • Compatible with PA421A and PA821A antenna combiners
  • Loop out connectors for multiple mix setups and easy installation
  • Switchable +4 dBu and -10 dBV input level
  • Balanced, 1/4" and XLR connectors
  • 1/8" headphone out on the front panel for easy monitoring

Shure P10T=-L8 Specifications

RF Output Power
Selectable: 10, 50, 100 mW (+20 dBm) varies by region
Frequency Band
L8 / 626-698 MHz
RF Output Impedance
50 Ohm (typical)
Impedance
70.2k ohm (actual)
Nominal Input Level
Switchable: +4 dBu, -10 dBV
Maximum Input Level
+4 dBu: +29.2 dBu
-10 dBV: +12.2 dBu
Connector Type
Input: Combination XLR and 6.35 mm (1/4") TRS
Output: 1/4" TRS (6.35mm)
Pin Assignments
XLR: 1=ground, 2=hot, 3=cold
1/4" TRS (6.35mm): Tip=hot, Ring=cold, Sleeve=ground
Polarity
XLR: Non-inverting (pin 2 positive with respect to pin 3)
1/4" (6.35mm) TRS: Tip positive with respect to ring
Electronically balanced
Phantom Power
Phantom power protection: Up to 60 VDC
Power Requirements
Input: 100-240V AC, 50/60 Hz, 0.5A max (5.5 max outlet loaded)
Output: 100-240V AC, 5A max, unswitched
Dimensions
19 x 13.50 x 1.73" (482.6 x 342.9 x 43.94mm)
Weight
1.87 lbs (0.85 kg)
