About Shure P10TR-J8

This Shure P10TR-J8 Bundle comes with: and Shipping is free! .

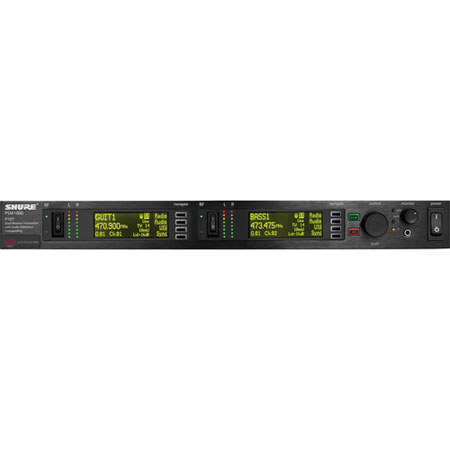

The Shure P10TR-J8 Personal Monitor Dual System is a professional wireless IEM monitoring system intended for touring, live venue installations, houses of worship, broadcast applications and anywhere high-grade wireless monitoring is necessary. The PSM1000 features the P10T full-rack dual wireless transmitter and a pair of P10R diversity bodypack receivers.

The transmitter's touring-grade all-metal housing is sure to handle the rigors of life on the road. The P10T also features Ethernet networking and control via the optional Wireless Workbench software, 72 MHz tuning bandwidth, precision front-end RF filtering for enhanced signal stability and much more. The P10R bodypacks feature diversity reception for stable, reliable signal. The PSM1000 is completely backwards compatible with all PSM900 series monitoring components.

Shure P10TR-J8 Features

  • Full-rack, dual channel wireless transmitter housed in a touring-grade, all-metal chassis
  • Networked control via Ethernet connection vastly simplifies setup for high channel counts and enables remote control via Wireless Workbench software
  • Internal power supply with IEC in/out ports enables easy power chaining in the rack
  • Backwards compatibility with PSM 900 receivers for simplified inventory management
  • Diversity bodypack dramatically improves signal reception and increases range
  • Precision front-end RF filtering reduces RF interference for a cleaner, stronger RF signal, fewer dropouts and less audible artifacts
  • CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels on one bodypack for quick and easy reference
  • Backward compatible with PSM 900 transmitters and receivers (in the same frequency range) to facilitate streamlined inventory management for rental and touring
  • Up to 72 MHz Tuning Bandwidth (region dependent) provides flexibility in today's crowded and unpredictable RF environments
  • Full bandwidth scan from the P10R bodypack receiver finds clean, compatible frequencies and provides a graphic spectrum plot viewable from the bodypack menu screen
  • Send the identified frequencies and spectrum plot to the P10T transmitter over IR sync
  • Program compatible frequency assignments from one transmitter to every other P10T transmitter on the network over Ethernet connection for vastly simplified and streamlined setup
  • Spectrum display provides a front-panel spectrum plot with selectable zoom
  • Provides advanced RF spectrum plotting, comprehensive frequency coordination and live monitoring and adjustment of transmitter settings (RF mute enable/disable, RF output power adjustments, Aux/line level, Audio input level, Channel/device name edit)
  • The SB900 lithium-ion rechargeable battery provides extended usage times and precise tracking of remaining life and charge cycle details
  • The SCB800-US eight-bay charger brings up to eight SB900 batteries to full charge within two hours and has charge status LEDs for each battery

Shure P10TR-J8 Specifications

Monitor: RF Carrier Range
470 - 952 MHz (region-dependent)
Monitor: Compatible Frequencies Per band
Monitor: Tuning Bandwidth
72 - 80MHz (region-dependent)
Monitor: Operating Range
90m / 295ft (environment-dependent)
Monitor: Audio Frequency Response
38Hz - 15kHz
Monitor: Signal-To-Noise Ratio
90dB (A-Weighted)
Monitor: Total Harmonic Distortion
<0.5% typical (ref. ±34kHz Deviation @ 1kHz)
Monitor: Stereo Encoding/Decoding
Digital Walsh Encoding
Monitor: Companding
Patented Audio Reference Companding
Monitor: Spurious Rejection
>80dB typical (referenced to 12dB SINAD)
Monitor: Frequency Stability
±2.5ppm typical
Monitor: MPX Pilot Tone
19 kHz (±0.3 kHz)
Monitor: Modulation
FM, MPX Stereo (ref. ±34kHz deviation @ 1kHz)
Monitor: Operating Temperature
Transmitter: RF Output Power
Selectable: 10, 50, 100 mW (+20 dBm), region-dependent
Transmitter: RF Output Impedance
50 Ohm typical
Transmitter: Power Requirement
Input: 100-240 V AC, 50/60 Hz, 0.5 A max (5.5 max outlet)
Output: 100-240 V AC, 50/60 Hz, 5 A max, unswitched
Body Pack: Front-End RF Filtering
Tri-Band, Dual Stage 3-Pole Chebyshev
Body Pack: Active RF Gain Control
Adjusts Receiver RF Sensitivity to provide 31dB more RF Dynamic Range
Body Pack: Squelch Threshold
22 dB SINAD (±3 dB) default setting
Body Pack: RF Sensitivity
2.2 uV at 20dB SINAD
Body Pack: Image Rejection
>90 dB typical
Body Pack: Adjacent Channel Rejection
>70 dB
Body Pack: Intermodulation Attenuation
>50dB (referenced to 30dB SINAD with -80dBm on channel signal at 45kHz deviation of a 1 kHz tone) >70dB for 12dB SINAD
Body Pack: Blocking
Body Pack: Audio Output Power
100 mW (per output)
1kHz @ <1% distortion, peak power, @32Ohm
Body Pack: Minimum Load Impedance
9.5 Ohm
Body Pack: High Boost
Selectable: +2 dB, +4 dB @ 10 kHz
Body Pack: Volume Limiter
Selectable: 3-9 Limits volume adjustment knob.
Selected value analogous to volume knob increment
Body Pack: Battery Life
6 hours typical using AA batteries
Transmitter: 483 mm x 343 mm x 44 mm (19.0 in. x 13.5 in x 1.7 in)
Body Pack: 99 mm x 66 mm x 23 mm (3.9 in. x 2.6 in. x 0.9 in.)
Transmitter: 4.7 Kg (10.4 lb)
Body Pack: 196 g (6.91 oz) (with 2 AA batteries)
