20% Off

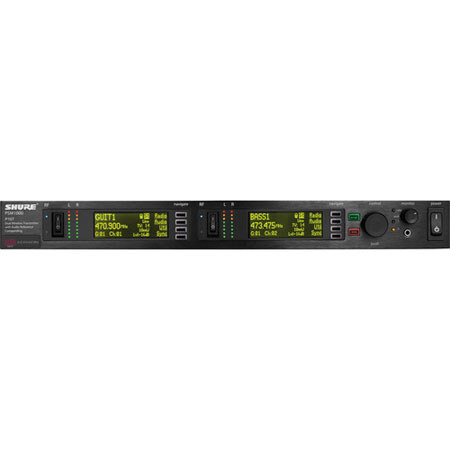

Shure P10TR-L8 PSM1000 Personal Monitor Dual System without Earphones, L8/626-698 MHz Frequency, 90 m (295') Operating Range

SKU: SHP10TRL8 MFR: P10TR-L8

Our Price

$4,855.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

List Price: $6,069.00

Availability: In Stock Online In Stock Online - Usually ships within 1-2 Days

Free Shipping

See all shipping options

Product Highlights

  • P10R=-L8 Receiver
  • P10T=-L8 Transmitter
  • Shure P10R-L8 Wireless Bodypack Receiver, 2 x Antennas, Shure USA Warranty
  • Ideal for flexible high-performance expansion
  • Band L
Shure P10TR-L8: Picture 1 regular $4,855.00

About Shure P10TR-L8

This Shure P10TR-L8 Bundle comes with: and Shipping is free!

The Shure P10TR-L8 PSM1000 Personal Monitor Dual System is a professional wireless IEM monitoring system intended for touring, live venue installations, houses of worship, broadcast applications and anywhere high-grade wireless monitoring is necessary. The PSM1000 features the P10T full-rack dual wireless transmitter and a pair of P10R diversity bodypack receivers.

The transmitter's touring-grade all-metal housing is sure to handle the rigors of life on the road. The P10T also features Ethernet networking and control via the optional Wireless Workbench software, 72 MHz tuning bandwidth, precision front-end RF filtering for enhanced signal stability and much more. The P10R bodypacks feature diversity reception for stable, reliable signal. The PSM1000 is completely backwards compatible with all PSM900 series monitoring components.

Shure P10TR-L8 Features

  • Adorama Valuable Bundle. Kit Includes.
  • Shure P10R-L8 Wireless Bodypack Receiver, 2 x Antennas, Shure USA Warranty.
  • Shure P10T-L8 Dual Wireless Transmitter.

Shure P10TR-L8 Specifications

Monitor: RF Carrier Range
470 - 952 MHz (region-dependent)
Monitor: Compatible Frequencies Per band
39
Monitor: Tuning Bandwidth
72 - 80MHz (region-dependent)
Monitor: Operating Range
90m / 295ft (environment-dependent)
Monitor: Audio Frequency Response
38Hz - 15kHz
Monitor: Signal-To-Noise Ratio
90dB (A-Weighted)
Monitor: Total Harmonic Distortion
<0.5% typical (ref. ±34kHz Deviation @ 1kHz)
Monitor: Stereo Encoding/Decoding
Digital Walsh Encoding
Monitor: Companding
Patented Audio Reference Companding
Monitor: Spurious Rejection
>80dB typical (referenced to 12dB SINAD)
Monitor: Frequency Stability
±2.5ppm typical
Monitor: MPX Pilot Tone
19 kHz (±0.3 kHz)
Monitor: Modulation
FM, MPX Stereo (ref. ±34kHz deviation @ 1kHz)
Monitor: Operating Temperature
Yes
Transmitter: RF Output Power
Selectable: 10, 50, 100 mW (+20 dBm), region-dependent
Transmitter: RF Output Impedance
50 Ohm typical
Transmitter: Power Requirement
Input: 100-240 V AC, 50/60 Hz, 0.5 A max (5.5 max outlet)
Output: 100-240 V AC, 50/60 Hz, 5 A max, unswitched
Body Pack: Front-End RF Filtering
Tri-Band, Dual Stage 3-Pole Chebyshev
Body Pack: Active RF Gain Control
Adjusts Receiver RF Sensitivity to provide 31dB more RF Dynamic Range
Body Pack: Squelch Threshold
22 dB SINAD (±3 dB) default setting
Body Pack: RF Sensitivity
2.2 uV at 20dB SINAD
Body Pack: Image Rejection
>90 dB typical
Body Pack: Adjacent Channel Rejection
>70 dB
Body Pack: Intermodulation Attenuation
>50dB (referenced to 30dB SINAD with -80dBm on channel signal at 45kHz deviation of a 1 kHz tone) >70dB for 12dB SINAD
Body Pack: Blocking
>80dB
Body Pack: Audio Output Power
100 mW (per output)
1kHz @ <1% distortion, peak power, @32Ohm
Body Pack: Minimum Load Impedance
9.5 Ohm
Body Pack: High Boost
Selectable: +2 dB, +4 dB @ 10 kHz
Body Pack: Volume Limiter
Selectable: 3-9 Limits volume adjustment knob.
Selected value analogous to volume knob increment
Body Pack: Battery Life
6 hours typical using AA batteries
Dimensions
Transmitter: 483 mm x 343 mm x 44 mm (19.0 in. x 13.5 in x 1.7 in)
Body Pack: 99 mm x 66 mm x 23 mm (3.9 in. x 2.6 in. x 0.9 in.)
Weight
Transmitter: 4.7 Kg (10.4 lb)
Body Pack: 196 g (6.91 oz) (with 2 AA batteries)
Mfr #
P10TR-L8
SKU
SHP10TRL8
