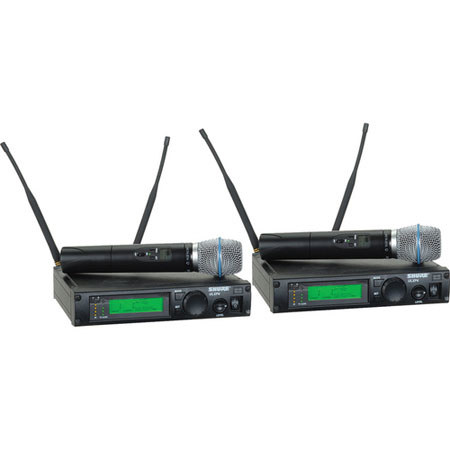

Shure ULXP24D/BETA87A-X1 Dual Wireless Handheld Microphone System (X1/944-952 MHz), Includes 2 ULXP4 Receiver, 2 ULX2 Transmitter, Beta 87A Mic


List Price: $2,424.00

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $69.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $94.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $249.95
20% Off

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Ways To Save

Product Highlights

  • Shure Beta 87A supercardioid capsule
  • Over 1400 selectable frequencies
  • Predictive Diversity
  • 5-segment transmitted audio signal strength meter
  • 5-segment RF meter
  • 3-segment transmitter battery fuel gauge
  • Mic/Line switch
  • Remotable 1/2-wave antenna
Shure ULXP24D/BETA87A-X1: Picture 1 regular $1,939.00

About Shure ULXP24D/BETA87A-X1

The Shure ULXP24D/BETA87A-X1 Dual Wireless Handheld Microphone System provide professional wireless microphone solutions for broadcast, performances, conferences, houses of worship, schools and businesses. This wireless handheld system includes 2x ULXP4 receivers and 2x ULX2 handheld transmitters with Shure Beta 87A supercardioid heads.

The ULXP4 receiver operates on UHF frequencies, offering over 1400 user selectable frequencies to choose from. All the standard features of the ULXS4 receiver are present and in addition the ULXP4 is equipped with features that meet the demands of professionals. Additional features include TV channel display, frequency and volume locks, SCAN indicator, squelch indicator and receiving antenna indicators. The dual antenna design represents diversity technology, which provides optimum resistance against RF interference and drop-out. Dual internal receivers are set to the same frequency and are constantly vying for the strongest reception. The receiver features a balanced XLR output that is switchable between mic and line level signal as well as an unbalanced 1/4" phone output. A multifunction LCD provides group and channel information, transmitter battery life and more. Two 5-segment LEDs provide audio and RF metering.

The ULX2 handheld transmitter features the Shure Beta 87A supercardioid capsule. Like the bodypack transmitter, the ULX2 provides 1400 user selectable frequencies and a comprehensive LCD display provides channel and frequency information, battery life and more. The Shure Beta series microphones provide higher input levels than the SM series. The supercardioid polar pattern is effective against off-axis noise, causing feedback and unwanted ambient noise. The ULX2 is powered with a standard 9 V alkaline battery (included).

Shure ULXP24D/BETA87A-X1 Features

  • Shure Beta 87A supercardioid capsule
  • Automatic Frequency Selection with group scan function
  • Over 1400 selectable frequencies
  • Predictive Diversity
  • 5-segment transmitted audio signal strength meter
  • 5-segment RF meter
  • 3-segment transmitter battery fuel gauge
  • Advanced multi-function LCD displays group and channel
  • Mic/Line switch
  • Remotable 1/2-wave antenna
  • Frequency and volume lockout
  • XLR and 1/4" output
  • Rugged metal chassis
  • 1/2 rack design

Shure ULXP24D/BETA87A-X1 Specifications

System: Type
Rack/Table Top Mountable UHF Diversity Wireless Handheld System
System: RF Carrier Frequency Range
470.000 to 865.000MHz
System: Approx. Working Range
300 Feet (100m)
System: Overall Frequency Response
25Hz-15kHz, (±2dB)
System: Impedance
ULX1 (input): 1 Megohm
ULXS4, ULXP4 (output): 50ohms at line level; 2000 ohms at mic level
System: Modulation
±38 kHz deviation compressor-expander system with pre and de-emphasis
System: Number Of Channels
Over 1400 User Selectable Frequencies (G3 / 470 - 505MHz)
System: Dynamic Range
>100dB, A-weighted
System: RF Sensitivity
1.26 uV for 12dB SINAD (typical)
System: Image Rejection
80dB typical
System: Spurious Rejection
75dB typical
System: Ultimate Quieting
Reference ±38kHz deviation: > 105dB, A-weighted
System: Distortion
System Distortion (reference ±38kHz deviation, 1kHz modulation), 0.3% total harmonic distortion, typical
System: Number Of Simultaneous Systems
Up to 20
System: Operating Temperature
-4 to 120deg. F (-20 to 49deg. C)
Receiver: Type
ULXP4 Professional Rack/Table-Top Mount Receiver
Receiver: Type of Outputs
8 to 9 hours (with 9V alkaline battery)
Receiver: Headphone Monitoring
Receiver: Power Requirements
14 - 18VDC (negative ground), 550mA External Power Supply - PS40, Included, with Locking DC Connector
Receiver: Display
Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning.
Receiver: Mounting Options
Rack / Table Top Mount 1/2 Rack Space
Receiver: Output Level
XLR connector (into 600 ohm load): +3.9dBV (line), -17dBV (mic)
1/4 inch connector (into 3000 ohm load): -2dBV (±38kHz deviation, 1kHz tone)
Receiver: Antenna Type
Transmitter: Type
ULX2 Handheld
Transmitter: Type of Microphone
Beta 58 Dynamic Supercardioid Head
Transmitter: Battery Type/Approx. Life
8 to 9 hours (with 9V alkaline battery)
Transmitter: Mute Switch
Transmitter: Level Control
Yes, 25dB gain adjustment range
Transmitter: Impedance
Active Impedance: 20k Ohms
Transmitter: Input Level
Maximum Input Level (1kHz, 1% THD): 12dBV (10 Vp-p)
Transmitter: Display
Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning)
Receiver: 1.72 x 8.56 x 6.88" (43.68 x 217.4 x 174.75mm)
Transmitter: 9 x 2" (228.6 x 50.8mm)
Receiver: 2 lbs, 7 oz (1105.63 g)
Transmitter: 10.2 oz (289.2 g) without battery
