About Shure P6HW

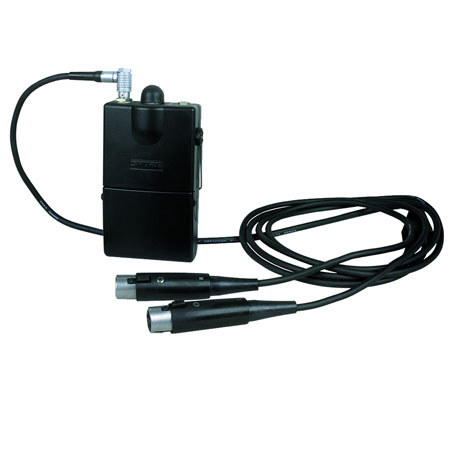

The Shure P6HW Hardwired Bodypack Monitor is the hardwired two-channel stereo solution for the stage performer in the PSM600 series of monitoring system. The P6HW personal bodypack monitor effectively replaces the bulk and clutter of the traditional stage monitor/wedge setup. In-Ear monitoring offers the performer more mobility and a roomier stage and the house engineer a lower volume, feedback-free stage environment.

The P6HW beltpack monitor is discreetly sized and housed in a rugged, all-metal chassis. The proprietary 5-pin connector and accompanying detachable Y cable provide the audio connection to the house or monitor console. The P6HW stereo and unique MixMode level control features enable the performer to adjust the mix balances as required during a show without affecting any other mix sends from the house.

Shure P6HW Features

  • Multi Function Switches: Four Dip Switches offer a high frequency boost, on/off and defeat control of the built in limiter, a 15 dB pad and MixMode or stereo mix selection; located in battery compartment
  • Volume Knob: This integrated on/off and volume knob offers easily accessible level control
  • LED Indicators: Three dedicated LEDs include power, low battery and peak/overloading
  • Mix Balance Dial: This offers dedicated control of left/right balances in stereo mode or the mix level of two different mono signals in MixMode
  • Metal Chassis: Rugged, yet lightweight and inconspicuous

Shure P6HW Specifications

Frequency Response
26 Hz to 90 kHz (-3 dB)
Total Harmonic Distortion
0.18% for RL = 18
0.08% for RL = 63
Channel Separation
40 dB (minimum)
Signal-to-Noise Ratio
85 dB (minimum)
Output Level
+4.5 dBu (maximum level, 1% THD, RL = 18 )
Minimum Load Impedance
16 ohms
Battery Life (with E3 earphones)
10 to 12 hours (depending on volume
Maximum Input Level
+22 dBu, input pad ON
+7 dBu, input pad OFF
Input Impedance
44 kilohms, input pad ON
77 kilohms input pad OFF
Connectors
Output: 3.5 mm, stereo (Tip = L+, Ring = R+, Sleeve = ground)
Input: 5-pin (pin 1 indicated by red dot), phantom power protected
Dimensions
111 x 64.5 x 31.9mm (4.37 x 2.54 x 1.25 in.)
Weight
209.8 g (7.4 oz)
