Shure P9T=-K1 Wireless Transmitter for PSM900 Personal Monitor System, K1 Band, 596-632 MHz Frequency Range
What's Included With This Item:
- Shure P9T=-K1 Wireless Transmitter
- Rack Mounting Kit
- 2 x Antennas
- Power Supply
- Shure Warranty
The Shure P9T=-K1 is a compact wireless transmitter that can be used in conjunction with a P9R bodypack receiver as part of a PSM900 wireless personal monitoring system. The transmitter's half-rack design makes it easy to transport and it can be installed in any standard equipment rack.
The transmitter features patent-pending CueMode technology to send multiple mixes or channels to a receiver and a Scan and Sync function to quickly sync with a receiver over an IR link. An RF mute switch allows you to set up the system without causing RF interference. The front panel offers an input gain control and LED level meters, as well as a 3.5 mm headphone jack for convenient monitoring and a backlit LCD that displays vital info.

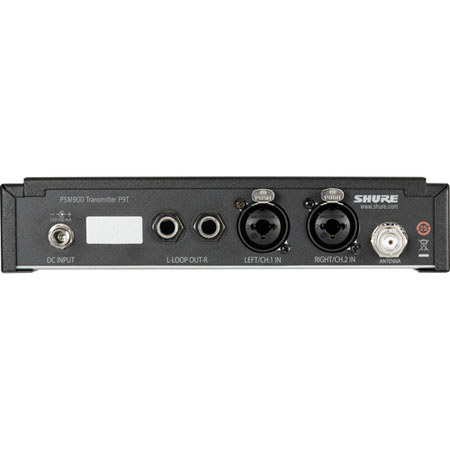

The rear panel offers XLR/TRS combo inputs, allowing it to accept a variety of audio sources. Loop out connectors make it easy to create multiple mix setups. The transmitter is compatible with the PA421SWB and PA821SWB antenna combiners and offers front or back mountable antennas.
|Compatibility||PSM900 Personal Monitor System|
|Output Power||10/50/100mW, Selectable|
|Output Impedance||50 Ohms (RF, Typical)|
|Input Level||+4dBu and -10dBV, Switchable|
|Connectors||2 x XLR/TRS Combo Inputs
2 x 1/4" Loop Outputs
1 x DC Power Input
1 x Antenna Connector
1 x 3.5mm Headphone Jack
|Power Requirements||415mA, Typical (RF On, 100mW Power Mode, No Audio)|
|Dimensions (W x D x H)||7.75 x 6.5 x 1.6" (197 x 166 x 42mm)|
|Weight||1.9 lbs (0.86kg)|
