About Shure P9TRA-X1

The Shure P9TRA-X1 is a professional-quality wireless monitoring system that provides high-quality audio and RF performance in a compact and durable design. The system consists of a P9T transmitter and P9RA bodypack receiver. The system features an enhanced digital stereo encoder that enhances audio detail and clarity and patented Audio Reference Companding that sounds more like wired audio than other competing wireless systems.

Patent-pending CueMode technology lets you monitor different stage mixes, as well as store up to 20 different channels on a single bodypack receiver. A Scan and Sync function creates an IR link between the components for fast and easy syncing. RF muting provides easy setup without creating RF interference. RF scan and automatic gain features provide excellent RF stability and channel availability and prevent dropout due to RF overload. MixMode technology lets the receiver balance the levels of 2 audio channels while receiving each signal in both ears simultaneously.

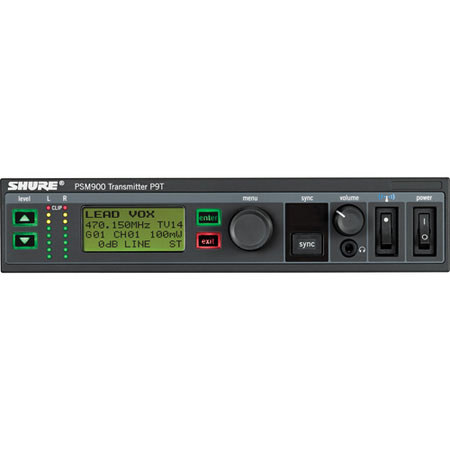

The transmitter has a compact half-rack design with XLR/TRS combo inputs, loop outputs and a 3.5mm headphone jack for monitoring. It also has a backlit LCD display and LED level meters. The receiver has slim aluminum housing with volume and balance controls and a 3.5mm headphone jack. It has an LCD screen for navigating settings and menus and it operates on a pair of standard AA batteries.

Shure P9TRA-X1 Features

  • Enhanced digital stereo encoder enhances audio detail and clarity, while patented Audio Reference Companding sounds more like wired audio than other competing wireless systems
  • Patent-pending CueMode technology lets you monitor different stage mixes, as well as store up to 20 different channels on a single bodypack receiver
  • Scan and Sync function creates an IR link between the components for fast and easy syncing
  • RF muting provides easy setup without creating RF interference
  • RF scan and automatic gain features provide excellent RF stability and channel availability and prevent dropout due to RF overload
  • MixMode technology lets the receiver balance the levels of 2 audio channels while receiving each signal in both ears simultaneously
  • Transmitter: Compact half-rack design for easy transportation and installation in any standard equipment rack
  • Transmitter: Front-panel input gain control and LED level meters
  • Transmitter: 3.5mm headphone jack for convenient monitoring
  • Transmitter: Backlit LCD displays vital info
  • Transmitter: XLR/TRS combo inputs accept a variety of audio sources
  • Transmitter: Loop out connectors make it easy to create multiple mix setups
  • Transmitter: Compatible with the PA421SWB and PA821SWB antenna combiners and offers front or back mountable antennas
  • Receiver: Slim and compact extruded aluminum construction for easy placement on a performer and lasting durability
  • Receiver: Output power is switchable from 10/50/100mW to provide a robust link in any environment
  • Receiver: Volume and balance controls are provided for easy customization
  • Receiver: Selectable high frequency EQ boost
  • Receiver: Audio and RF status LEDs, as well as audio level and battery life metering
  • Receiver: Operates on a pair of standard AA batteries for 5-7 hours of continuous use
  • Receiver: Standard 3.5mm headphone jack is compatible with all Shure SCL sound isolating earphones
  • Receiver: LCD screen displays settings and menus
  • Receiver: Detachable antenna

Shure P9TRA-X1 Specifications

RF
Carrier Range: 470-952 MHz
Frequencies
Compatible Frequencies: 20 per band
Bandwidth
36-40 MHz (varies by region)
Operating Range
300' (90 m)
Frequency Response
35Hz - 15kHz
Signal-to-Noise Ratio
A-weighted: 90dB (typical)
THD
Ref. ±34 kHz deviation @1 kHz: < 0.5% (typical)
Compander
Patented Shure Audio Reference Companding
Spurious Rejection
ref. 12dB SINAD: > 80dB (typical)
Frequency Stability
± 2.5 ppm
Pilot Tone
19 kHz (±0.3 kHz)
Modulation
FM, MPX Stereo (ref. ±34 kHz deviation @1 kHz)
Operating Temperature
-0.400 to 134.60deg. F (-18 to +57deg. C)
Transmitter: Output Power
10/50/100mW, Selectable (Regionally Dependent)
Transmitter: Output Impedance
50 Ohms (RF, Typical)
Transmitter: Connectors
2 x XLR/TRS Combo Inputs
2 x 1/4" Loop Outputs
1 x DC Power Input
1 x Antenna Connector
1 x 3.5mm Headphone Jack
Pin Assignments:
XLR: 1=ground, 2=hot, 3=cold
6.35 mm (1/4") TRS: Tip=hot, Ring=cold, Sleeve=ground
Transmitter: Polarity
XLR: Non-inverting (pin 2 positive with respect to pin 3)
6.35 mm (1/4") TRS: Tip positive with respect to ring
Transmitter: Configuration
Electronically balanced
Transmitter: Impedance
70.2 kOhms (actual)
Transmitter: Nominal Input Level
+4dBu and -10dBV, Switchable
Transmitter: Maximum Input Level
+4 dBu: +29.2 dBu
-10 dBV: +12.2 dBu
Transmitter: Protection
Phantom Power Protection: Up to 60 V DC
Transmitter: Power Requirements
100-15V AC, 415 mA, typical
Receiver: RF
Tri-Band RF Filtering: -3dB at 30.5 MHz from the center frequency of each band
Active RF Gain Control: 31dB (Adjusts RF sensitivity to provide more RF dynamic range)
Receiver: RF Sensitivity
@ 20dB SINAD: 2.2uV
Receiver: Image Rejection
> 90dB
Receiver: Adjacent Channel Crosstalk
Adjacent Channel Rejection: > 70dB
Receiver: Squelch
22dB SINAD (±3dB) default setting
Receiver: Intermodulation Distortion
Attenuation: > 50dB
Receiver: Blocking
> 80dB
Receiver: Output Power
1kHz @ < 1% distortion, peak power, @32Ohms: 100mW (per output)
Receiver: Load Impedance
9.5 Ohms
Receiver: Tone Control
High Boost
Selectable: +2 dB, +4 dB @ 10 kHz
Receiver: Limiter
Selectable: 3-9
Limits volume adjustment knob. Selected value analogous to volume knob increment
Receiver: Battery Type/Life
2 x AA, Approx 4-6 Hours
Dimensions
Transmitter(W x D x H): 7.75 x 6.5 x 1.6" (197 x 166 x 40mm)
Receiver (H x W x D):3.89 x 2.59 x 0.9" (99 x 66 x 23mm)
Weight
Transmitter: 1.87 lbs (0.848 kg)
Receiver: 7.05 oz (200g) (With Batteries)
