Shure PG30-TQG Cardioid Condenser Headset Microphone

SKU: SHPG30TQG MFR: PG30TQG
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$49.00 List Price

Our Price

$39.00
Free Shipping
Qty:

Add to Wishlist

About the Shure PG30TQG

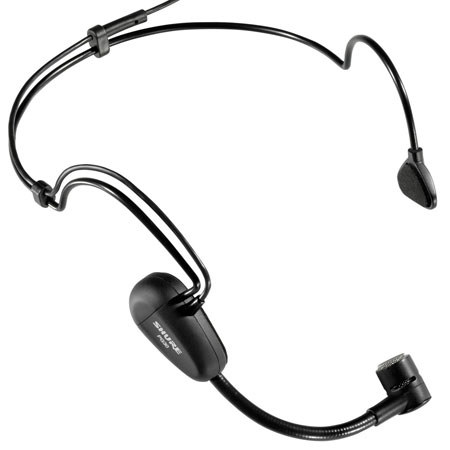

The Shure PG30-TQG is a miniature cardioid headset microphone with a TA4-female connector, compatible with Shure wireless bodypack transmitters. The condenser element features a cardioid polar pattern and is effective in minimizing off-axis noise and audio. The PG30-TQG features a pivoting boom for easy adjustment. The microphone is ideal for various speech applications.

Shure PG30TQG Includes

  • Shure PG30-TQG Cardioid Condenser Headset Microphone
  • 2 x Windscreens
  • RK322 Clothing Clip
  • User Guide
  • Shure Warranty

Shure PG30TQG Features

  • Cardioid polar pattern
  • Adjustable boom for easy positioning
  • Comfortable form fitting headband

Shure PG30TQG Specifications

Transducer Electret Condenser
Polar Pattern Cardioid
Frequency Response 60Hz to 18kHz
Dynamic Range (Typical) 92dB
Signal-to-Noise Ratio 61dB, 1kHz @ 1 Pa
Maximum Input Sound Level 125dB
Power Requirements +5VDC, 10V max (pin 2 to pin 1)
Output Impedance 1200 ohms @1kHz
Output Level -52dBV/Pa (2.5 mV)
Output Connectors Mini TA4-Female
Output Noise 33dB (typical, A-Weighted)
Polarity Positive sound pressure on diaphragm produces positive voltage on pins 3 and 4 relative to pin 1(ground) on the mini TA4F connector.
Pad No
Low Frequency Roll-Off No
Dimensions Cable Length: 1.27 m / 4.17' (two-conductor shielded)
Weight 51.6 g / 1.82 oz
