Sharp

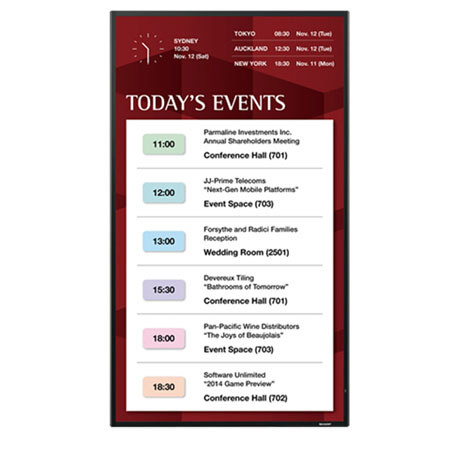

Sharp PN-R603 60" Slimline 1080p Full HD LCD Monitor, 4000:1 Contrast Ratio, 700cd/m2 Brightness, 6ms Response Time, HDMI

SKU: SHPNR603 MFR: PN-R603
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$4,150.00
Free Shipping
Qty:
Add to Wishlist

About the Sharp PN-R603

With its 60" class diagonal screen size, 24/7 reliability and energy efficient edge lit LED backlight, the Sharp PN-R603 is designed to meet the rigors of most any commercial display or digital signage application. Add to this Sharp's UV2A photo alignment technology, full 1920 x 1080 HD resolution and optional media player, you have one of the highest performing and most flexible displays in the industry. For versatility, performance and value, there's never been a better time to think BIG - and think Sharp.

Sharp PN-R603 Includes

  • Sharp PN-R603 60" Slimline 1080p HD LCD Monitor
  • Remote Control Unit
  • 2 x Cable Clamp
  • Power Cord
  • 2 x R-6 Battery (AA)
  • CD-ROM (Utility Disk for Windows)
  • Setup Manual
  • Vertical Sticker (Logo)
  • Vertical Sticker (Operation Panel)
  • Cover Sharp Logo
  • Sharp 3 Year Parts, Labor & Backlight Limited Warranty

Sharp PN-R603 Features

  • 60" Class (60 1/16" diagonal) combined with Sharp UV2A photo alignment technology help create brilliant color images with maximum impact
  • Edge-Lit LED Backlight reduces power consumption and helps enhance reliability and legibility of text
  • Brilliant, Big Screen Images for Digital Signage for use in public areas like trade show exhibit halls, hotel lobbies and conference areas, airport corridors and retail locations
  • Engineered for 24/7 Commercial Use provides the reliability and durability you need for virtually any business
  • Full 1920 x 1080 (1080p) Resolution from analog RGB, digital RGB and HDTV video sources
  • High Brightness (700 cd/m2) and Contrast Ratio (4,000:1)
  • Ultra-Slim Design with Cabinet Depth of only 1-9/16"
  • Built-in 10 Watt per Channel Stereo Speakers eliminates need for an external audio system for many installations
  • Extensive Interface Capability includes as standard interfaces HDMI input x2, D-Sub 15-pin RGB input, RS-232C input/output, DVI-I input, DVI-D output, DisplayPort input/output, stereo audio (1/8") input x 2, stereo audio (1/8") output and RJ-45 LAN display control

Sharp PN-R603 Specifications

Screen Size 60"
Bezel Width 19mm
Native Display Resolution 1080p
Maximum Brightness (average) 700cd/m2
Landscape and Portrait Mode Operation Yes
Certified for 24/7 Continuous Operation Yes
Fanless Architecture Yes
Audio 10W + 10W Stereo with built in speakers
LCD Type UV2A LCD
Number of Colors 1.06 Billion
Contrast Ratio 4000:1
Aspect Ratio 16:9
Viewing Angle (H/V) 176 x 176deg. (CR>/=10)
Active Screen Area (W x H) 52.31 x 29.43"
Pixel Pitch (H x V) 0.692 x 0.692mm
Video System NTSC (3.58 MHz; 4.43 MHz), PAL, PAL60, SECAM
Computer Input - Video Analog RGB (0.7 Vp-p) (75Ohms), Digital (conforms to DVI 1.0 standards)
Computer Input - Synchronization Horizontal / Vertical separation (TTL: positive/negative), Sync on green, composite sync (TTL: positive/negative), DisplayPort 1.1
Computer Input - Plug & Play VESA DDC2B
Power Management VESA DPMS, DVI DMPM
Response Time 6 ms (gray to gray, avg)
PC/AV Video Input HDMI x 2
Mini D-sub 15 pin, 3 rows x 1
PC/AV Audio Input 3.5 mm mini stereo jack x 2
PC Input DisplayPort x 1
DVI-I 29 pin (HDCP compatible) x 1
PC Output DisplayPort x 1
DVI-D 24 Pin (HDCP compatible) x 1
Audio Line Output 3.5 mm mini stereo jack x 1
LAN Port 10 BASE-T/1 BASE-TX
RS-232C D-sub 9-pin input x 1
D-sub 9-pin output x 1
Screen Adjustment Auto (Clock, Phase, H-POS/V-POS)/Manual
Gain Control Auto (Black level, Contrast)/Manual
Digital Scaling (expansion) Yes (VGA/SVGA/XGA/SXGA -> 1920 x 1080)
Digital Scaling (compression) 1920 x 1200, 1600 x 1200
Real Time Clock Setting Yes
Scheduling Function Yes (time, day of the week)
All Reset Yes
Reset Screen/Picture/Audio adjustment setting, etc.
Adjustment Lock YES (incl. Power button)
Daisy Chain (DVI-D) DVI-D max. 5 units (HDCP compliant)
DisplayPort max. 4 units (HDCP compliant)
Enlarge Yes
Frame Width Adjustment Yes
PinP / PbyP Yes
Power On Delay 1-60 seconds (with 1 second interval)
Audio Input Change Yes
Self Adjust Yes (PC Analog Input)
Log Save / Output Yes
Temperature Control Yes
Hardware Diagnosis Yes
Monitor Control Software Support Yes
Web Browser Setting (LAN) Yes
E-Mail Notification Yes
SNMP Yes
Overscan Setting (AV Input) Yes
Image Size Change Function Yes
Resolution Change Function (PC analog) Yes
RS-232C Communication Speed Change Yes
Conversion of Stereo Audio to Monaural Yes
Selection of Audio Input per image input Yes
Power Consumption 200W
Power Source 100 - 240V AC, 50/60 Hz
Operating Temperature 32 - 104deg.F (0 - 40deg.C)
Operating Humidity 20% to 80% RH
Regulatory Approvals UL 60950, FCC Class A
Mounting Configuration VESA (6 points), 200 x 200 mm (7.87 x 7.87") pitch
VESA (4 points), 200 x 200 mm (7.87 x 7.87") pitch
Remote Control Yes (LAN and RS-232C)
Dimensions (W x D x H) 54.25 x 1.56 x 31.25" (137.79 x 3.96 x 79.37cm)
Weight 70.5lbs (31.97kg)
