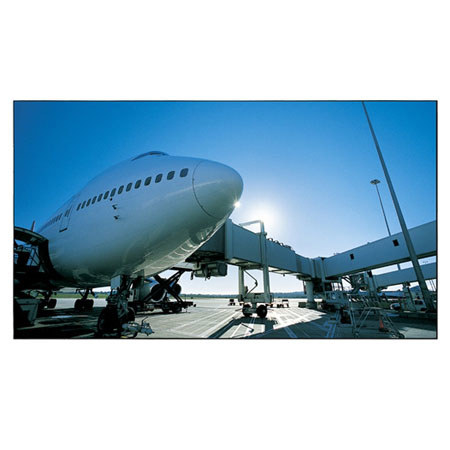

Sharp PN-V602 60" Video Wall Monitor, slim bezel LCD monitor

SKU: SHPPNV602 MFR: PN-V602
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$11,999.95 Special Price Available
Free Shipping
Qty:
Add to Wishlist

About the Sharp PN-V602



Sharp PN-V602 Features

  • Exceptionally High Brightness for Semi-Outdoor Environments - up to 1500 cd/m2 brightness
  • 60" Class (60" Diagonal) Screen Size - with Sharp ASV LCD Technology provides exceptionally deep blacks and bright vivid colors
  • Local Dimming - for high contrast and superb energy efficiency. Local dimming allows specific groups of LEDs to be dimmed. This helps deliver remarkably higher contrast (up to 1,000,000:1 contrast ratio) and significant power savings
  • Full Array LED Backlight - gives the PN-V602 more uniform brightness than conventional CCFL backlighting. LED elements are positioned across the entire panel directly behind the liquid crystal layers, helping ensure beautiful uniform images
  • 1366 x 768 Resolution - from analog RGB, digital RGB and HDTV video sources. When used in a 3x3 video wall display, this Professional LED-LCD Monitor provides over 4K x 2K total resolution (4098 x 2304 pixels) for ultra-high resolution / ultra-high impact images
  • Enlarge (Zoom) Display Mode - enables one image to be spread across up to 25 monitors (in up to a 5x5 configuration). The Frame Width Adjustment function eliminates misalignment and helps enhance the enlarged image in a multi-screen display
  • Compatible with Third-Party Video Wall Processors - for video walls of virtually unlimited size and configuration
  • 24/7 Certified - for use in most commercial applications
  • Choice of Installation Mod - for use in landscape, portrait and "face-up/face-down" installations
  • Built-in 10 Watt per Channel Amplifier - for use with external stereo speakers
  • Extensive Interface Capability - Standard interfaces include HDMI input, D-Sub 15-pin RGB input, stereo audio input, stereo audio line-output and RS-232C input/output
  • Optional Mounting Hardware Bundles - includes all of the hardware needed for the most popular video wall configurations, for both wall mounting and free standing installations
  • Compatible with SDSS Sharp Digital Signage Software
  • ENERGY STAR Qualified - with exceptionally low power consumption

Sharp PN-V602 Specifications

Screen Size Class 60" Class (60" Diagonal)
Bezel Width 2.4 mm (right/bottom)
4.1 mm (left/top)
Native Display Resolution 1366 x 768
Maximum Brightness (average) 1,500 cd/m2
Landscape and Portrait Mode Operation Yes
Certified for 24/7 Continuous Operation Yes
Fanless Architecture No
Audio 10W + 10W Stereo with built in speakers
LCD Type UV2A LCD
Number of Colors 16.77 Million
Contrast Ratio Up to 1,000,000 (local dimming set to HIGH); Up to 5,000:1 (local dimming OFF)
Aspect Ratio 16:9
Viewing Angle (H/V) 176deg. H x 176deg. V (CR>/=10)
Active Screen Area 52-5/16" W x 29-7/16" H
Frame Rate 60 Hz
Pixel Pitch 0.485 mm H x 0.485 V
Video System NTSC (3.58 MHz; 4.43 MHz), PAL, PAL60, SECAM
Computer Input - Video Analog RGB (0.7 Vp-p) [75-ohm], Digital (conforms to DVI 1.0 standards)
Computer Input - Synchronization Horizontal / Vertical separation (TTL: positive/negative), Sync on green, composite sync (TTL: positive/negative)
Computer Input - Plug & Play VESA DDC2B
Power Management VESA DPMS, DVI DMPM
Response Time 6 ms (gray to gray, avg)
PC/AV Video Input Analog mini D-sub 15-pin. DVI-D 24-pin HDCP Compatible (requires optional PN-ZB01); Analog 5-BNC (requires optional PN-ZB01; analog RGB and component are menu selectable).
PC/AV Audio Input 3.5 mm mini stereo jack
Video Input Composite Video - BNC (requires optional PN-ZB01)
S-Video Input 5-Pin DIN (requires optional PN-ZB01)
Component Video BNC (Y, Cb/Pb,Cr/Pr) (requires optional PN-ZB01; component video and analog RGB are menu selectable).
HDMI Yes - compatible for both PC and AV components
Audio (AV) RCA pin (L/R) x 2 (requires optional PN-ZB01)
Computer Output DVI-D 24-pin (HDCP compatible, PC/AV signal; requires optional PN-ZB01)
Audio Line Output RCA pin (L/R) - selectable fixed or variable line output
Speaker Output 10W + 10W Stereo (6-ohms; requires optional PN-ZB01)
LAN Port RJ-45 (requires optional PN-ZB01)
RS-232C D-sub 9-pin
Screen Adjustment Auto (Clock, Phase, H-POS/V-POS) / Manual
Gain Control Auto (Black level, Contrast) / Manual
Digital Scaling (expansion) Yes (VGA/SVGA/XGA/SXGA -> 1366 x 768)
Digital Scaling (compression) 1920 x 1200, 1920 x 1080, 1600 x 1200, 1280 x 1024
Main User Adjustments Clock, Phase, H-POS/V-POS, Black level, Contrast; Color temp (15 steps preset + 5600K/9300K + User setting); Color mode (Standard/sRGB/Vivid); Gamma (1.8/2.0/2.2/2.4/User setting); Brightness, Volume, Audio (Treble/Bass/Balance), OSD-POS; Picture Adjustment (Tint, Color Intensity) [PC/AV mode]; R/G/B/Y/M/C independent adjustment [AV mode]
Real Time Clock Setting Yes
Scheduling Function Yes (time, day of the week)
All Reset Yes
Reset Screen/Picture/Audio adjustment setting, etc.
Adjustment Lock YES (incl. Power button)
Daisy Chain (DVI-D) Optional (PN-ZB02): max. 5 units (HDCP compliant). (Splitter required for more than 6 units.)
Enlarge Yes (Up to 5x5)
Frame Width Adjustment Yes
PinP / PbyP Yes (PinP: 12 steps)
Power On Delay 1-60 seconds (with 1 second interval)
Audio Input Change Yes
Picture Flip No
Self Adjust Yes (PC Analog Input)
Log Save / Output Yes
Temperature Control Yes
Hardware Diagnosis Yes
Monitor Control Software Support Yes
Overscan Setting (AV Input) Yes
Image Size Change Function Yes
Resolution Change Function (PC analog) Yes
RS-232C Communication Speed Change Yes
Conversion of Stereo Audio to Monaural No
Selection of Audio Input per image input Yes
Internal / External Speaker Select No. External Only (with Optional PN-ZB02)
Power Consumption 510W Max. (Local dimming off)
Standby Power Consumption 1W (standby mode in Standard), 0.5W (standby mode in Low Power)
Power Source 100 - 240V AC, 50/60 Hz
Tuner No
Operating Temperature 0deg. C - 40deg. C
Operating Humidity 20% to 80% RH (no condensation)
Storage Temperature -4 - 140deg. F (-20 - 60deg. C)
Regulatory Approvals UL 60950, FCC Class A
ENERGY STAR Qualified Yes
Mounting Configuration VESA (6 points), 200 mm (7-7/8") pitch, M6 screws or VESA (4 points), 200 mm (7-7/8") pitch, M6 screw
Dimensions (W x H x D) 52.63" x 5.88" x 29.69" / 1336.80 x 149.35 x 754.13 mm
Weight 110 lbs / 49.9 kg
