Shape 15mm Rod Riser System

Shape
SKU: SHROD1 MFR: ROD1

Our Price

$118.01
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

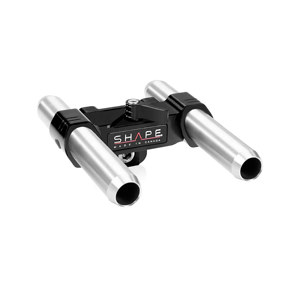

Shape 15mm Rod Riser System: Picture 1 regular $118.01

About Shape 15mm Rod Riser System

The Shape 15mm is a part of solution for advanced video accessories like matte boxes, 35mm lens adapter and follow focus mechanisms. The 15mm Rod System holds the weight of these accessories so no additional weight is put on the lens. The 15mm Rod System consists of a bracket and two 15mm aluminum rods. The rods are 8" (20.3 cm) long and have 1/2-13 threaded female tips. It is possible to screw other 15mm rods. The 15mm Rod System is attached to the front of the camera supports using a 4mm hexagonal key. It can easily be removed when not needed.

The rods can be moved along the bracket in order to adjust their horizontal position. Simply unscrew the small knob, position the rods and screw the knob tightly to keep the rods in place. No tool is required to adjust the horizontal position of the rods.

The height of the rods is adjustable by up to 1 3/8" (3.5 cm) in order to match the height of the video accessory. For example, you may have to lower the rods in order to match the height of a matte box. A 4mm hexagonal key is required to adjust the height of the rods.

Shape 15mm Rod Riser System Features

  • Avoids additional weight on the lens by supporting the weight of matte boxes, a 35mm lens adaptor, and follow focus mechanisms
  • Composed of a bracket and two 15mm aluminum rods
  • Measures 8" (20.3cm) in length
  • (1/2-13) threaded female tips allow attachment on other 15mm rods
  • Uses a 4mm hexagonal key to attach the 15mm Rod System to the front of the camera, which can be easily removed when not in use
  • Features an easy adjustment system with horizontal adjustment using a small knob and vertical adjustments up to a height of 1 3/8" (3.5 cm) to match the height of the video accessory using a 4mm hexagonal key

Shape 15mm Rod Riser System Specifications

Adapter Lens
35mm / 1.37 inch
Length
8" (20.3cm)
Threaded Female Tips
1/2-13
Hexagonal Key
4mm / 0.157 inches
Height
1-3/8" (3.5 cm)
Mfr #
ROD1
SKU
SHROD1
