Shure RPM181/C Specifications

  • Frequency Response

    20 to 20,000 Hz

  • Polar Pattern

    Cardioid

  • Sensitivity

    -46.5 dBV/Pa (2.4 mV)

  • Output Impedance

    110 ohms (at 1 kHz)

  • Signal to Noise Ratio

    73.5 dB

  • Self Noise

    20.5 dB SPL-A

  • Common Mode Rejection

    = 55 dB

  • Polarity

    Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

  • Power Requirements

    11-52 V DC[4] phantom power (IEC-61938)2.4 mA, maximum

  • Maximum SPL

    1000 Ohm Load: 149.0 dB (1,000 ohm load)
    2500 Ohm Load: 151.5 dB SPL

  • Dynamic Range

    1000 Ohm Load: 128.5 dB
    2500 Ohm Load: 131.0 dB

  • Clipping Level

    1000 Ohm Load: 7.5 dBV
    2500 Ohm Load: 10.5 dBV

  • Weight

    5.1 oz (144.5 g)

0 Accessories for Shure RPM181/C Cardioid Polar Pattern Capsule for Beta 181 Microphone, 20 to 20,000 Hz Frequency Response

About Shure RPM181/C

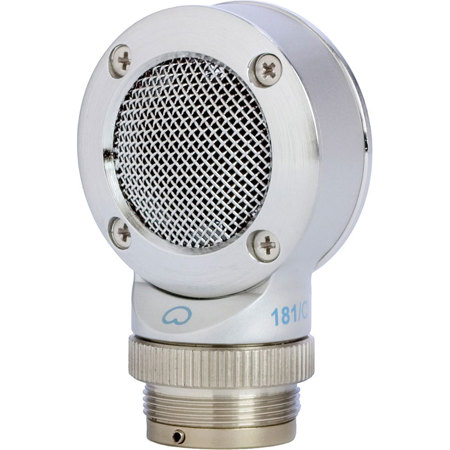

The Shure RPM181/C Cardioid Polar Pattern Capsule is one of four interchangeable capsules for Shure's Beta 181 side-address instrument microphone. It features a locking ring, which provides a secure connection with the Shure RPM181/PRE. Paired with this preamp, its compact design weighs only 5.1 oz and gets close to any source even in the tightest conditions. With its wide frequency response and high SPL handling, it's great for piano, acoustic instruments, or used as a drum overhead. It also performs with little to no crossover distortion and provides exceptional low-frequency reproduction.

The capsule is made of a hardened steel mesh grille that resists denting, wear and abuse. Along with its compact form factor, the diaphragm provides exceptional audio with consistent, textbook-like polar responses resulting in a mic with noteworthy sound and versatility.

Shure RPM181/C Features

  • Interchangeable side-address Cardioid capsule for the Shure Beta 181
  • Locking ring provides secure connection between capsule and Shure RPM181/PRE preamp
  • Compact 5.1 oz design gets close to any source even in the tightest conditions
  • Provides wide dynamic range and high SPL handling
  • Performs with little to no crossover distortion and provides exceptional low-frequency reproduction
  • Hardened steel mesh grille resists denting, wear and abuse

Key Features

  • Interchangeable side-address Cardioid capsule for the Shure Beta 181
  • Locking ring provides secure connection between capsule & Shure RPM181/PRE preamp
  • Compact 5.1 oz design gets close to any source even in the tightest conditions
  • Hardened steel mesh grille resists denting, wear & abuse
