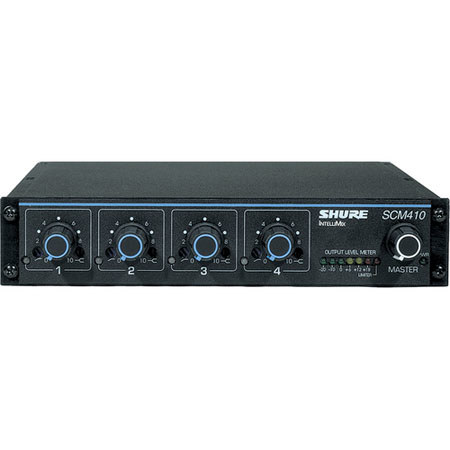

Shure SCM410 4 Channel Automatic Microphone Mixer, 100-120 V AC Power, 4 XLR Mic Inputs, 1 XLR Output

Shure SCM410: Picture 1 thumbnail Shure SCM410: Picture 2 thumbnail

List Price: $877.00

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $55.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $59.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $154.95
21% Off

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Shure SCM410

The Shure SCM410 is a four-channel automatic microphone mixer designed for use in sound reinforcement, audio recording and broadcast applications. The SCM410 dramatically improves audio quality in any application where multiple microphones are required. Any low-impedance dynamic or condenser microphone (including wireless) can be used with the SCM410. Multiple SCM410 mixers can be linked to other SCM410 mixers, as well as to Shure Models FP410, SCM810, SCM800 and AMS8100 mixers.

Each input channel has a two-band equalizer and three logic terminals. The equalizer reduces unwanted low-frequency audio pickup and makes different microphone types - lavaliers, boundary and handheld-sound similar. The logic terminals can be used to control external devices. The SCM410 operates on 100-120 V AC power. The mixer is supplied with a power cord, rack-mounting hardware and a link cable.

Shure SCM410 Features

  • Fast, noise-free microphone selection, which automatically adjusts to changes in background noise
  • Automatic gain adjustment as additional microphones are activated-NOMA (Number of Open Microphones Attenuated)
  • Last Mic Lock-On circuit maintains ambient sound
  • Fits in half a rack space
  • Adjustable EQ for each channel
  • Active balanced microphone-level XLR inputs and an active balanced Mic/Line level XLR output
  • Unbalanced auxiliary-level phono output
  • Bi-color channel activation and clipping LEDs
  • Peak-responding output limiter with LED indicator
  • Peak-responding output level meter

Shure SCM410 Specifications

4 - XLR 3-pin Female mic level only
1 - XLR 3-pin Male mic/line switchable
Monitor/Headphone Out
AUX Output - 1 Phono unbalanced
Link Input/Output
9-pin serial
Frequency Response
(at 1 kHz, channel controls centered)
50 Hz to 20 kHz +/- 2 dB; -3 dB corner at 25 Hz
Mic - 19-600 ohm, 1.4k ohm actual, -14dBV clipping
Line - .5k ohm, 300 ohm actual, +24dBV clipping
Mic - .600 ohm, 3 ohm, -18dBV clipping
Aux - .10k ohm, 1.5k ohm, +14dBV clipping
Low-impedance mic input 150 ohms:
Line - 80dB
Mic - 40dB
Aux - 68dB
Total Harmonic Distortion
<0.1% at +4 dBu output level, 50 Hz to 20 kHz (through 22 Hz to 22 kHz filter; Input at 12 o' clock and Master at 12 o' clock, all other controls full counterclockwise)
Hum and Noise
(150 ohm source; through 22 Hz to 22 kHz filter)
Equivalent Input Hum and Noise:-123 dBV max.,-125 dBV typical
Output Hum and Noise
(channel controls full counterclock-wise)
Master full counterclockwise: -90 dBV
Master full clockwise: -70 dBV
Common Mode Rejection
>70 dB at 1 kHz
All inputs to all outputs are non-inverting
Input Channel Activation
Attack Time: 4 ms
Hold Time: 0.4 s
Decay Time: 0.5 s
13 dB
Overload and Shorting Protection
Shorting outputs, even for prolonged periods, causes no damage. Microphone inputs are not damaged by signals up to +10 dBV (3V)
Low-frequency: 6 dB/octave cut, adjustable corner from 25 to 320 Hz
High-frequency: +6 dB at 5 kHz, +8 dB at 10 kHz, shelving
Type: Peak
Threshold: +16 dBu (at output)
Attack Time: 2 ms
Recovery Time: 300 ms
Indicator: Lights red when limiting occurs
Input LEDs
Green on channel activation, red at 6 dB below clipping
Phantom Power
12 Vdc open-circuit through 680 Ohm resistors
Operating Voltage
100-120 Vac rated nominal, 50/60 Hz, 100 mA (maximum)
Operating Temperature Range
-7deg. to 49deg. C (20deg. to 120deg. F )
Storage Temperature Range
-29deg. to 74deg. C (-20deg. to 165deg. F)
Dimensions (H x W x D)
44 x 219 x 267 mm/1.73 x 8.62 x 10.51"
1.75 kg (3.86 lbs)
