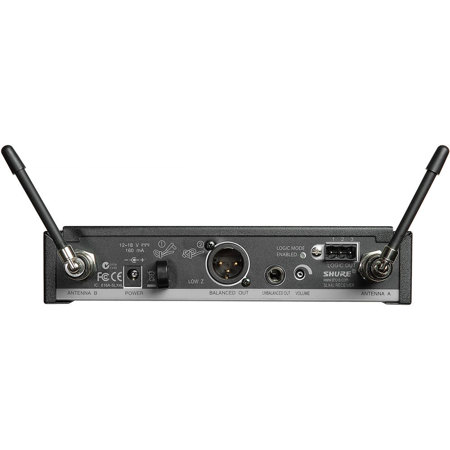

Shure SLX4L-G5 Diversity Receiver with TTL Logic Output, PS21US Power Supply, 1/4 Wave Antenna & Rack Mounting Hardware, G5/494-518 MHz

Shure
SKU: SHSLX4LG5 MFR: SLX4L=-G5
Shure SLX4L-G5: Picture 1 thumbnail Shure SLX4L-G5: Picture 2 thumbnail

List Price: $475.00

Free Shipping

See all shipping options

In Stock Online Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $24.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $84.95
20% Off

Our Price

$380.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Shure SLX4L-G5

The Shure SLX4L-G5 Diversity Receiver is designed for use with the Shure SLX wireless microphone series. The diversity design allows dual receiver circuits and antennas to compete for the strongest possible reception. XLR microphone level and 1/4" phone line level outputs are featured. A comprehensive LCD display provides Frequency, Group and Channel information as well as transmitter battery status, audio level and more.

Shure SLX4L-G5 Features

  • Automatic frequency selection
  • Automatic transmitter setup
  • 960 selectable frequencies across 24 MHz bandwidth
  • Detachable 1/4 wave antennas
  • Microprocessor-controlled diversity
  • RF presence LED
  • 5-segment audio meter
  • Multi-function, backlit LCD
  • Low battery indicator
  • Frequency and power lockout
  • Rugged metal chassis
  • Volume control on rear of unit
  • 1/2 rack design
  • Furnished rack hardware
  • Non-slip bumpers for use out of rack
  • XLR and 1/4" outputs
  • Logic functionality for software echo cancellation and remote battery life monitoring

Shure SLX4L-G5 Specifications

RF Carrier Frequency Range
G5/494-518MHz
Approx. Working Range
300' (100 m)
Overall Frequency Response
45Hz - 15KHz ±2dB
Signal-to-Noise Ratio
> 100dB A-weighted
Audio Output Level
XLR connector (into 600 Ohm load): -13 dBV
1/4 inch connector (into 3000 Ohm load): -2 dBV (ref. +/- 38 kHz deviation with 1 kHz tone)
Output Impedance
XLR connector: 200 Ohms
1/4 inch connector: 1 kOhm
XLR output
Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio
Sensitivity
-105 dBm for 12 dB SINAD, typical
Image Rejection
>70 dB, typical
Power Requirements
12 to 18 Vdc at 150 mA, supplied by external power supply
Housing
Galvanized steel
Dimensions (H x W x D)
42mm x 197mm x 134mm (1.65 x 7.76 x 5.28 in.)
Weight
28.78 oz (816g)
