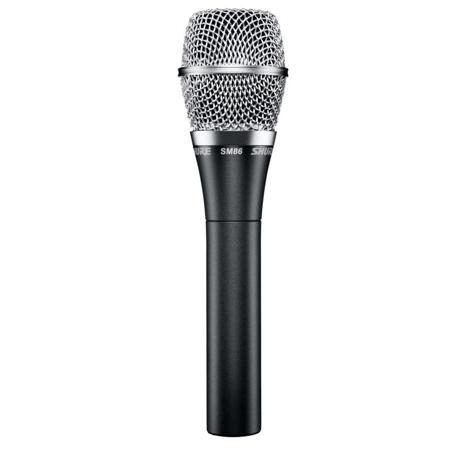

Shure SM86 Cardioid Condenser Handheld, Vocal, Wired Microphone.
What's Included With This Item:
- Break Resistant Microphone Clip A25D
- Microphone Bag 26A13
- 5/8 to 3/8 Thread Adapter 31A1856 .
Ways to Save
The Shure SM86 is a unidirectional (cardioid) condenser vocal microphone for professional use in live performance. An extremely rugged microphone, the SM86 withstands the rigors of touring while delivering studio-quality sound. The tailored frequency response of the SM86 reproduces vocals with clarity.
A cardioid pickup pattern isolates the main sound source while minimizing unwanted background noise.
The built-in three-point shock mount minimizes handling noise, and a two-stage pop filter reduces wind and breath pop noise. The SM86 is an excellent selection for use with both stage monitors and personal in-ear monitors.
|Type||Transducer Type Condenser (electret bias)|
|Applications||Vocal , Professional use in live performance.|
|Frequency Response||50 to 18,000 Hz|
|Impedance||A load impedance of at least 600 Ohms is recommended. The load may be as low as 150 Ohms, but a reduction in output level and output clipping level will result.|
|Output Level||Sensitivity (at 1,000 Hz) Open Circuit Voltage 50 dBV/Pa (3.15 mV) (1 Pa = 94 dB SPL)
Output Clipping Level: 1000 Ohm Load at 1,000 Hz +3 dBV (1.41 V)
Maximum SPL: (at 1,000 Hz) 1000 . load (1% THD) 147 dB
Self-Noise : 23 dB typical, A-weighted .
|Connector||Three pin (XLR) professional audio|
|Polarity||Positive pressure produces positive voltage on pin 2 relative to pin 3 of the output connector.|
|Dimensions||183 mm / 7.2 in. / in length, and 49 mm / 1.92 in. / in diameter. / 24 mm / .95 in. handle|
|Weight||278 grams (9.8 oz)
Dynamic Range (1000 ohms.) 124 dB (maximum SPL to A-weighted noise level)
Signal-to-Noise Ratio 71 dB at 94 dB SPL (IEC 651)
|Power Requirements||Phantom Supply Requirement 11 to 52 Vdc, positive..at both pins 2 and 3
Current Drain 5.2 mA.
