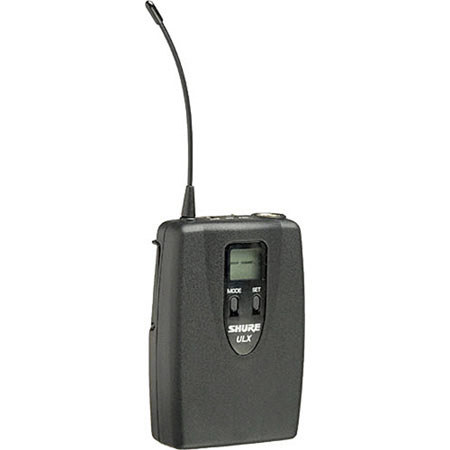

Shure ULX1-J1 Bodypack Transmitter with TA4F Mini 4-pin Input Connector, J1 Band (554-590 MHz)


About Shure ULX1-J1

The Shure ULX1-J1 is a low-profile, highly durable bodypack UHF wireless transmitter that has all the characteristics to meet the demands of high performance. For use with head-worn, lavalier and instrument microphones, as well as guitars and basses. Attaches to belt, waistband or guitar strap with clip for hands-free mobility.

Shure ULX1-J1 Features

  • 8-9 Hour Battery Life
  • Power On/Off Switch
  • Power/Battery LED-Green When ON, Red When Battery Low
  • Three-segment Battery Power Icon
  • PEAK Icon-Appears When Audio Signal Overloads
  • Group/Channel Displays
  • MODE Button for Menu Display
  • SET Button for Saving Settings
  • Adjustable Audio Gain Control (25 dB Range!)
  • Input Attenuation Switch-Select 0 dB for Voice/Low Output; 20 dB for High Output
  • 4-pin Mini Connector
  • Belt Clip

Shure ULX1-J1 Specifications

Type of Transmitter
ULX1 Bodypack UHF Transmitter
No of Channels
Over 1400 User Selectable Frequencies (Channel Group / J1)
Type of Input Connector
TAF4 4-Pin Mini Connector
Battery Type/Approx. Life
Non-Rechargeable Type: 9v Lithium Battery / 21 Hours
9v Alkaline Battery / 8 - 9 Hours
9v Carbon-Zinc Battery / 5 Hours
Rechargeable Type:
9v Ni-Cad Battery / 2 Hours
9v Ni-MH Battery / 2.5 Hours
Interchangeable Mic Heads
Yes, Use any of the Shure Lavalier, Headset, Instrument Microphones, or Guitar/Bass/XLR Adapter Cables that terminate to a Mini 4-pin TA4F Connector
Mute Switch
Level Control
Yes, 25 dB Gain Adjustment Range
Antenna Type
Wire Type
Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon
Dimensions (H x W x D)
3.86 x 2.68 x 1.1" (98.0 x 68 x 27.9mm)
2.8 oz (79 g) without battery
