Shure

Shure ULXD124/85-L50 Digital Wireless Combo Microphone System, Includes ULXD4 Receiver, ULXD2 Handheld Transmitter with SM58 Mic, ULXD1 Transmitter

SKU: SHULXD12485L MFR: ULXD124/85-L50
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$2,368.00 List Price

Our Price

$1,894.00 $75 per week
Free Shipping
Qty:
Add to Wishlist

Protect your investment

About the Shure ULXD124/85-L50

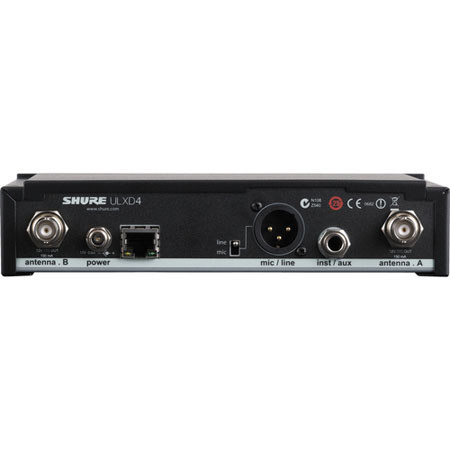

The Shure ULXD124/85-L50 Digital Wireless Combo Microphone System delivers transparent, 24-bit digital audio transmission, uncompromising audio clarity, extremely efficient RF performance, secure signal encryption and advanced recharging. This system includes the ULXD4 receiver, ULXD2 handheld transmitter with SM58 microphone capsule, ULXD1 bodypack and WL185 lavalier.

Both the transmitters and receiver are made of galvanized steel, making it rugged enough for any application. Its 24-bit/48 kHz digital audio fidelity, wide frequency response and 120 dB dynamic range result in an audio quality that's synonymous with wired microphones.

Its efficient and stable RF performance features up to 64 MHz overall tuning range, support for 14 active transmitters in one 6 MHz TV channel and 60 compatible channels on one frequency band. The ULX-D's optimized scanning automatically finds and deploys the cleanest frequencies available and interference detection alerts provide instant confirmation when interference is present.

The system's 256-bit signal encryption sends RF signal securely. Additional features include intelligent Shure battery circuitry for efficient battery charges, comprehensive LCD displays, XLR and 1/4" phone balanced outputs, Ethernet network capability much more.

Shure ULXD124/85-L50 Includes

  • Shure ULXD4 Single Wireless Receiver
  • ULXD2 Handheld Transmitter with SM58 Mic
  • ULXD1 Wireless Bodypack Transmitter
  • WL185 Cardioid Lavalier Microphone
  • Power Supply
  • 2 x 1/2 Wave Antenna
  • 2 x BNC Cable
  • Rackmount Kit
  • Ethernet Cable (5')
  • 2 x AA Alkaline Batteries
  • Rackmount Bracket (Short)
  • Rackmount Bracket (Long)
  • Link Bar
  • Antenna for Bodypack Transmitter
  • Zipper Bag for Bodypack Transmitter
  • AA Battery Adapter for Bodypack Transmitter
  • Shure Warranty

Shure ULXD124/85-L50 Features

  • 24-Bit / 48 kHz digital audio delivers incredibly clear and accurate reproduction of the source material
  • Wide frequency range with flat response for superb low range and transient response
  • Greater than 120 dB dynamic range provides excellent signal-to-noise performance
  • Wide selection of trusted Shure Microphones, including the legendary SM58
  • Up to 64 MHz overall tuning range (region dependent)
  • Up to 14 active transmitters in one 6 MHz TV channel (17 on an 8 MHz TV channel)
  • Over 60 compatible channels on one frequency band
  • Rock-solid signal stability with no audio artifacts extends over the entire 100 meter line-of-sight range using standard supplied dipole antennas
  • Optimized scanning automatically finds and deploys the cleanest frequencies available
  • Proprietary Shure Gain Ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments
  • Up to 60 dB of adjustable system gain is easily accessible from the receiver front panel
  • Upgraded LCD screens with adjustable contrast and brightness on both transmitters and receivers
  • Rugged metal housing on both transmitters and receiver
  • Interference detection and alerts provide instant confirmation when interference is present
  • Ethernet networking for streamlined setup across multiple receivers, Wireless Workbench 6 integration (coming soon) and AMX/Crestron control
  • Support for frequency coordination with the Axient Spectrum Manager
  • Adapted from industry-leading Axient intelligent power management technology
  • Lithium-Ion chemistry and intelligent Shure battery circuitry results in rechargeable batteries with zero memory effect. The battery can be recharged at any time; a complete discharge is never necessary
  • Provides ULX-D transmitters with unmatched 12+ hours of performance time
  • Transmitters and receivers display remaining battery life in hours and minutes accurate to within 15 minutes
  • SBC200 Dual Docking Charger recharges batteries while inside or outside transmitters
  • Up to four SBC200s can be linked together to provide docked charging of eight transmitters from one power supply
  • The SBC800 Eight-Bay Charger brings up to eight SB900 batteries to full charge within three hours and 50% charge in one hour, with charge status LEDs for each battery
  • AA alkaline backwards compatibility
  • Both chargers fit in a standard-size rack drawer for easy transport and storage

Shure ULXD124/85-L50 Specifications

RF Carrier Range L50 /632 to 696MHz
Working Range 100 m (328 ft)
RF Tuning Step Size 25 kHz
Image Rejection >70 dB, typical
RF Sensitivity -98 dBm at 10-5 BER
Latency <2.9 ms
Audio Frequency Response ULXD1: 20 Hz-20 kHz (±1 dB)
ULXD2: 30 Hz-20 kHz (±1 dB)
Audio Dynamic Range, System Gain @ +10 >120 dB, A-weighted, typical
Total Harmonic Distortion <0.1% ( -12 dBFS input, System Gain @ +10)
System Audio Polarity Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4") output
Operating Temperature Range -18deg.C (0deg.F) to 50deg.C (122deg.F)
Storage Temperature Range -29deg.C (-20deg.F) to 74deg.C (165deg.F)
ULXD1 Transmitter: Connector 4-Pin male mini connector (TA4M)
Unbalanced
1 Mega ohm
ULXD1 Transmitter: Impedance 50 Ohms
ULXD1 Transmitter: Operating Range 300' (100m)
ULXD1 Transmitter: Gain Range 0 to 21dB (in 3dB steps)
ULXD1 Transmitter: Line Max Input Level Pad Off: 8.5 dBV (7.5 Vpp)
Pad On: 20.5 dBV (30 Vpp)
ULXD1 Transmitter: EIN Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20: 120 dBV, A-weighted, typical
ULXD1 Transmitter: RF Output SMA
ULXD1 Transmitter: Antenna 1/4 wave
ULXD1 Transmitter: Bandwidth Occupied Bandwidth: < 200 kHz
ULXD1 Transmitter: Modulation Shure Proprietary Digital
ULXD1 Transmitter: Output Power 1mW, 10mW, 20mW
ULXD1 Transmitter: Frequency Response 20Hz to 20kHz (±1 dB), flat
ULXD1 Transmitter: Battery Shure SB900 Rechargeable Li-Ion or AA batteries
Battery Runtime @ 10 mW
Shure SB900: > 12 hours
Alkaline: 11 hours
ULXD1 Transmitter: Housing Cast aluminum
WL185 Mic: Signal-to-Noise Ratio 18dB SPL (A-weighted)
WL185 Mic: Maximum Input Sound Level 130dB
WL185 Mic: Power Requirements Regulated Nominal +5 Vdc (2 Vdc to 10 Vdc)
WL185 Mic: Output Impedance 28 ohms
WL185 Mic: Output Connectors TA4-Female
WL185 Mic: Pad No
WL185 Mic: Low Frequency Roll-Off No
WL185 Mic: Cable length 4 foot (1.2 meter)
Dimensions ULXD1 Transmitter: 3.4 x 2.6 x 0.9" (86 x 66 x 23mm)
Weight ULXD1 Transmitter: 142g (5.0oz), without batteries
