Shure

Shure ULXP14/83-X1 Wireless Lavalier Microphone System, ULXP4 Receiver, ULX-1 Body Pack Transmitter, WL183 Omnidirectional Lavalier Microphone

SKU: SHULXP1483X1 MFR: ULXP14/83-X1
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,099.00 List Price

Our Price

$879.00 $35 per week
Free Shipping
Qty:
Add to Wishlist

Protect your investment

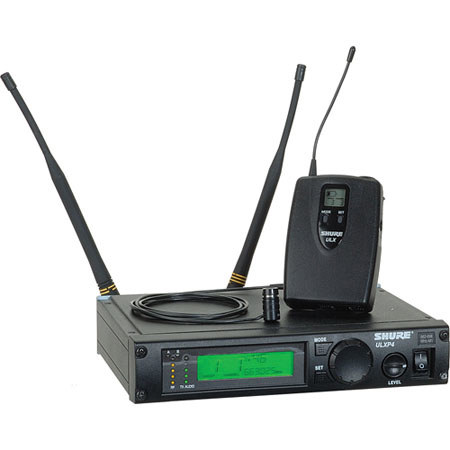

About the Shure ULXP14/83-X1

The Shure ULXP14/83-X1 wireless microphone system provides professional wireless microphone solutions for performances, conferences, houses of worship, schools and businesses. The system includes the ULXP4 diversity receiver, ULX1 body-pack transmitter and WL183 lavalier microphone.

The ULXP4 receiver operates on UHF frequencies, offering over 1400 user selectable frequencies to choose from. All the standard features of the ULXS4 receiver are present, in addition the ULXP4 is equipped with features that meet the demands of professionals. Additional features include TV channel display, frequency and volume locks, SCAN indicator, squelch indicator and receiving Antenna Indicators. The dual antenna design represents diversity technology, which provides optimum resistance against RF interference and drop-out. Dual internal receivers are set to the same frequency and are constantly vying for the strongest reception. The receiver features a balanced XLR output that is switchable between mic and line level signal as well as an unbalanced 1/4" Phone output. A multifunction LCD provides group and channel information, transmitter battery life and more. Two 5-segment LED's provide audio and RF metering.

The ULX1 body-pack transmitter is light weight and portable featuring a belt-clip for use with camera and guitar straps, belts, waistbands etc. The transmitter also features over 1400 user selectable UHF frequencies and a comprehensive LCD displays group and channel information and more. An input attenuation switch allows 0dB and 20dB output. Adjustable audio gain control is provided and the transmitter boasts 8-9 hour battery life on a single 9V battery.

The WL183 lavalier is a miniature omnidirectional microphone featuring pristine audio response in an unobtrusive element. The omnidirectional pattern provides a generous pick up at the perimeter of the capsule, enhancing ambient audio pick up while minimizing handling noise. The WL183 features a wide sensitivity and frequency response, reproducing speech with great detail and clarity.

Shure ULXP14/83-X1 Includes

  • Shure ULXP4 Receiver with PS40 (X1)
  • ULX-1 Body Pack Transmitter (X1)
  • WL183 Omnidirectional Lavalier Microphone
  • Shure Warranty

Shure ULXP14/83-X1 Features

  • Automatic Frequency Selection with group scan function
  • Up to 1440 selectable frequencies
  • 5-segment transmitted audio signal strength meter
  • RF indicator
  • 3-segment transmitter battery fuel gauge
  • Advanced multi-function LCD displays group and channel
  • Mic/Line switch
  • Detachable 1/4-wave antenna
  • XLR and 1/4-inch output
  • Rugged plastic chassis
  • 1/2 rack design

Shure ULXP14/83-X1 Specifications

Type of System Rack/Table Top Mountable UHF Diversity Wireless Lavalier System
RF Carrier Frequency Range X1 / 944 - 952 MHz
Approx. Working Range 300 Feet (100m)
Overall Frequency Response 25Hz - 15kHz, (±2 dB)
Signal-to-Noise Ratio Greater Than 90dB
No. Of Channels Over 1400 User Selectable Frequencies
No. Of Simultaneous Systems Up to 20
Type of Receiver ULXP4 Professional Rack/Table-Top Mount Receiver
Receiver: Type of Outputs Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd (Both Outputs Feature: Voltage, Current and Phantom Power Protection)
Receiver: Headphone Monitoring No
Receiver: Power Requirements 14 - 18VDC (negative ground), 550mA
Receiver: Display Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning.
Receiver: Mounting Options Rack / Table Top Mount 1/2 Rack Space
Receiver: Antenna Type Wire Type
Bodypack Transmitter: Input Connector TAF4 4-Pin Mini Connector
Bodypack Transmitter: Microphone Type WL183
Bodypack Transmitter: Polar Pattern Omnidirectional
Bodypack: Interchangeable Mic Heads Yes, Use any of the Shure Lavalier, Headset, Instrument Microphones, or Guitar/Bass/XLR Adapter Cables that terminate to a Mini 4-pin TA4F Connector.
Bodypack Transmitter: Battery Life Non-Rechargeable Type:
9V Lithium Battery / 21 Hours
9V Alkaline Battery / 8 - 9 Hours
9V Carbon-Zinc Battery / 5 Hours
Rechargeable Type:
9V Ni-Cad Battery / 2 Hours
9V Ni-MH Battery / 2.5 Hours
Bodypack Transmitter: Mute Switch Yes
Bodypack Transmitter: Level Control Yes, 25dB Gain Adjustment Range
Bodypack Transmitter: Antenna Type Remotable 1/2 Wave, Rear Mounted
Bodypack Transmitter: Display Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning)
Dimensions (HxWxD) Receiver: 1.72 x 8.56 x 6.88" (43 x 217 x 174mm)
Body-pack UHF Transmitter: 3.86 x 2.68 x 1.10" (98 x 68 x 27.94mm)
Weight Receiver: 2.8 oz. (79 g) without Battery
Bodypack UHF Transmitter: 2 lbs., 7 oz. (1105 g)
