Shure

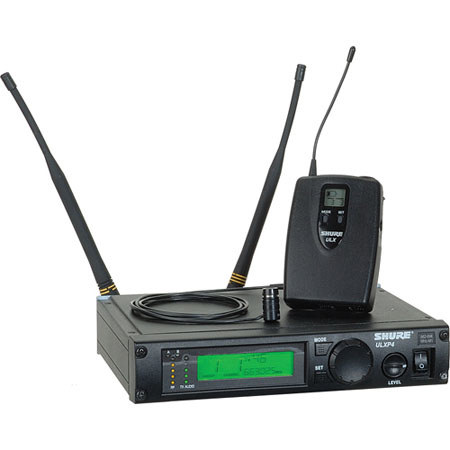

Shure ULXP14/84-X1 Wireless Lavalier Microphone System, Includes ULXS4 Diversity Receiver, ULX1 Bodypack Transmitter, WL184 Subminiature Lavalier Mic

SKU: SHULXP1484X1 MFR: ULXP14/84-X1
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,124.00 List Price

Our Price

$899.00
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About the Shure ULXP14/84-X1

The Shure ULXP14/84-X1 wireless microphone system provides professional wireless microphone solutions for performances, conferences, houses of worship, schools and businesses. The system includes the ULXP4 diversity receiver, ULX1 bodypack transmitter and WL184 lavalier microphone.

The ULXP4 receiver operates on UHF frequencies, offering over 1400 user selectable frequencies to choose from. All the standard features of the ULXS4 receiver are present and in addition the ULXP4 is equipped with features that meet the demands of professionals. Additional features include TV channel display, frequency and volume locks, SCAN indicator, squelch indicator and receiving antenna indicators. The dual antenna design represents diversity technology, which provides optimum resistance against RF interference and drop-out. Dual internal receivers are set to the same frequency and are constantly vying for the strongest reception. The receiver features a balanced XLR output that is switchable between mic and line level signal as well as an unbalanced 1/4" phone output. A multifunction LCD provides group and channel information, transmitter battery life and more. Two 5-segment LEDs provide audio and RF metering.

The ULX1 bodypack transmitter is light weight and portable featuring a belt-clip for use with camera and guitar straps, belts, waistbands, etc. The transmitter also features over 1400 user selectable UHF frequencies and a comprehensive LCD displays group and channel information and more. An input attenuation switch allows 0 dB and 20 dB output. Adjustable audio gain control is provided and the transmitter boasts 8-9 hour battery life on a single 9 V battery.

The WL184 lavalier microphone features a supercardioid pickup pattern, which minimizes off-axis noise and feedback caused by speakers or stage monitors. The WL184 features a 50-17,000 Hz frequency response making it suitable for a wide variety of applications.

Shure ULXP14/84-X1 Includes

  • Shure ULXS4 Diversity Receiver
  • ULX1 Bodypack Transmitter
  • WL184 Subminiature Lavalier Microphone
  • Shure Warranty

Shure ULXP14/84-X1 Features

  • ULX1 bodypack transmitter and WL184 subminiature lavalier microphone
  • Automatic Frequency Selection with group scan function
  • Up to 1440 selectable frequencies
  • 5-segment transmitted audio signal strength meter
  • RF indicator
  • 3-segment transmitter battery fuel gauge
  • Advanced multi-function LCD displays group and channel
  • Mic/Line switch
  • Detachable 1/4-wave antenna
  • XLR and 1/4" output
  • Rugged plastic chassis
  • 1/2 rack design

Shure ULXP14/84-X1 Specifications

System: Type Rack/Table Top Mountable UHF Diversity Wireless Lavalier System
System: RF Carrier Frequency Range X1 / 944 - 952MHz
System: Approx. Working Range 300 Feet (100m)
System: Overall Frequency Response 25Hz - 15kHz, (±2 dB)
System: Impedance ULX1 (input): 1 Megaohm
ULXS4, ULXP4 (output): 50ohms at line level; 2000 ohms at mic level
System: Modulation ±38 kHz deviation compressor-expander system with pre and de-emphasis
System: Number Of Channels Over 1400 User Selectable Frequencies
System: Dynamic Range >100 dB, A-weighted
System: RF Sensitivity 1.26 uV for 12dB SINAD (typical)
System: Image Rejection 80dB typical
System: Spurious Rejection 75dB typical
System: Ultimate Quieting Reference ±38 kHz deviation: > 105dB, A-weighted
System: Distortion System Distortion (reference ±38 kHz deviation, 1 kHz modulation)
0.3% total harmonic distortion, typical
System: Number Of Simultaneous Systems Up to 20
System: Operating Temperature -4 to 120deg. F (-20 to 49deg. C)
Receiver: Type ULXP4 Professional Rack/Table-Top Mount Receiver
Receiver: Type of Outputs 8 to 9 hours (with 9V alkaline battery)
Receiver: Headphone Monitoring No
Receiver: Power Requirements 14 - 18VDC (negative ground), 550mA
External Power Supply - PS40, Included
Receiver: Display Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning
Receiver: Mounting Options Rack / Table Top Mount 1/2 Rack Space
Receiver: Output Level XLR connector (into 600 ohm load): +3.9 dBV (line), -17 dBV (mic)
1/4 inch connector (into 3000 ohm load): -2 dBV (±38 kHz deviation, 1 kHz tone)
Receiver: Antenna Type Internal
Transmitter: Type Bodypack UHF Transmitter
Transmitter: Type of Input Connector TAF4 4-Pin Mini Connector
Transmitter: Type of Microphone WL184 Lavalier Microphone
Transmitter: Polar Pattern Supercardioid
Transmitter: Battery Type/Approx. Life 8 to 9 hours (with 9V alkaline battery)
Transmitter: Mute Switch Yes
Transmitter: Level Control Yes, 25dB gain adjustment range
Transmitter: Polarity Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output
Transmitter: Antenna Type Removable 1/2 Wave
Transmitter: Display Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning)
Dimensions Receiver: 1.72 x 8.56 x 6.88" (43.68 x 217.42 x 174.75mm)
Transmitter: 3.86 x 2.68 x 1.10" (98 x 68 x 27.94mm)
Weight Receiver:2 lb, 7 oz (1.10 kg)
Transmitter: 2.8 oz. (79 g) without battery
