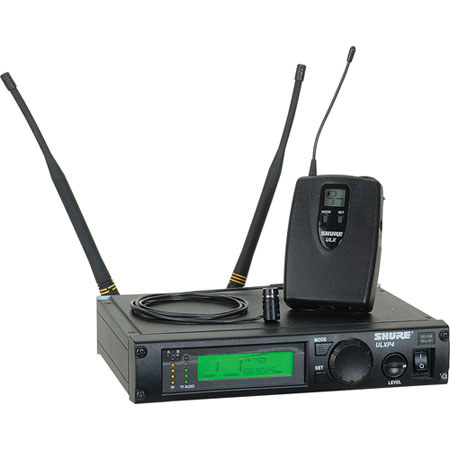

Shure ULXP14/85-X1 Wireless Lavalier Microphone System, Includes ULXP4 Diversity Receiver, ULX1 Bodypack Transmitter, WL185 Subminiature Lavalier Mic

Shure
SKU: SHULXP1485X1 MFR: ULXP14/85-X1

List Price: $1,111.00

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $55.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $59.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $154.95
20% Off

Our Price

$889.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Shure ULXP14/85-X1

The Shure ULXP14/85-X1 wireless microphone system provides professional wireless microphone solutions for broadcast, performances, conferences, houses of worship, schools and businesses. The system includes the ULXP4 diversity receiver, ULX1 body-pack transmitter and WL185 lavalier microphone.

The ULXP4 receiver operates on UHF frequencies, offering over 1400 user selectable frequencies to choose from. All the standard features of the ULXS4 receiver are present and in addition the ULXP4 is equipped with features that meet the demands of professionals. Additional features include TV channel display, frequency and volume locks, SCAN indicator, squelch indicator and receiving antenna indicators. The dual antenna design represents diversity technology, which provides optimum resistance against RF interference and drop-out. Dual internal receivers are set to the same frequency and are constantly vying for the strongest reception. The receiver features a balanced XLR output that is switchable between mic and line level signal as well as an unbalanced 1/4" phone output. A multifunction LCD provides group and channel information, transmitter battery life and more. Two 5-segment LEDs provide audio and RF metering.

The ULX1 body-pack transmitter is light weight and portable featuring a belt-clip for use with camera and guitar straps, belts, waistbands, etc. The transmitter also features over 1400 user selectable UHF frequencies and a comprehensive LCD displays group and channel information and more. An input attenuation switch allows 0 dB and 20 dB output. Adjustable audio gain control is provided and the transmitter boasts 8-9 hour battery life on a single 9 V battery. The WL185 lavalier microphone features cardioid pickup pattern, which minimizes off-axis noise and feedback caused by speakers or stage monitors. The WL185 features a 50-17,000 Hz frequency response making it suitable for a wide variety of applications.

Shure ULXP14/85-X1 Features

  • ULX1 bodypack transmitter and WL185 subminiature lavalier microphone
  • Automatic Frequency Selection with group scan function
  • Up to 1440 selectable frequencies
  • 5-segment transmitted audio signal strength meter
  • RF indicator
  • 3-segment transmitter battery fuel gauge
  • Advanced multi-function LCD displays group and channel
  • Mic/Line switch
  • Detachable 1/4-wave antenna
  • XLR and 1/4" output
  • Rugged plastic chassis
  • 1/2 rack design

Shure ULXP14/85-X1 Specifications

System: Type
Rack/Table Top Mountable UHF Diversity Wireless Lavalier System
System: RF Carrier Frequency Range
X1 / 944 - 952MHz
System: Approx. Working Range
300 Feet (100m)
System: Overall Frequency Response
25Hz - 15kHz, (±2dB)
System: Signal-to-Noise Ratio
Greater Than 90dB
System: Number Of Channels
Over 1400 User Selectable Frequencies
System: Number Of Simultaneous Systems
Up to 20
Receiver: Type
ULXP4 Professional Rack/Table-Top Mount Receiver
Receiver: Type of Outputs
Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd
Receiver: Headphone Monitoring
No
Receiver: Power Requirements
14 - 18VDC (negative ground), 550mA
External Power Supply - PS40, Included
Receiver: Display
Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning
Receiver: Mounting Options
Rack / Table Top Mount 1/2 Rack Space
Receiver: Antenna Type
Wire Type
Transmitter: Type
ULX-1 Bodypack UHF Transmitter
Transmitter: Type of Input Connector
TAF4 4-Pin Mini Connector
Transmitter: Type of Microphone
WL185 (Electret Bias) Condenser Lavalier Microphone
Transmitter: Polar Pattern
Cardioid
Transmitter: Interchangeable Mic Heads
Yes, Use any of the Shure Lavalier, Headset, Instrument Microphones, or Guitar/Bass/XLR Adapter Cables that terminate to a Mini 4-pin TA4F Connector
Transmitter: Battery Type/Approx. Life
Non-Rechargeable Type: 9V Lithium Battery / 21 Hours
9V Alkaline Battery / 8 - 9 Hours
9V Carbon-Zinc Battery / 5 Hours
Rechargeable Type: 9V Ni-Cad Battery / 2 Hours
9V Ni-MH Battery / 2.5 Hours
Transmitter: Mute Switch
Yes
Transmitter: Level Control
Yes, 25 dB Gain Adjustment Range
Transmitter: Antenna Type
Remotable 1/2 Wave, Rear Mounted
Transmitter: Display
Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning)
Dimensions
Receiver: 1.72 x 8.56 x 6.88" (43.68 x 217.42 x 174.75mm)
Transmitter: 3.86 x 2.68 x 1.10" (98 x 68 x 27.94mm)
Weight
Receiver: 2.8 oz (79.37 g) without Battery
Transmitter: 2 lbs., 7 oz. (1105 g)
