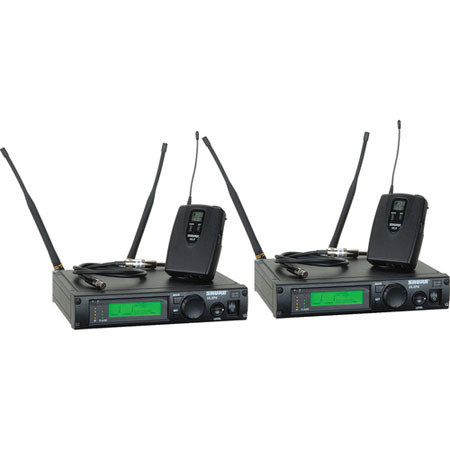

Shure ULXP14D-X1 Table Top/Rack Mount UHF Dual Wireless Guitar System, 2 ULXP4 UHF Receiver, 2 WA302 Cable, 2 ULX1 Transmitter, X1/944-952 MHz

Shure
SKU: SHULXP14DX1 MFR: ULXP14D-X1

List Price: $1,999.00

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $69.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $94.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $249.95
20% Off

Our Price

$1,599.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Shure ULXP14D-X1

The Shure ULXP14D-X1 Table Top/Rack Mount UHF Dual Wireless Guitar System is designed for working musicians and professional sound installers. Multiple system configurations provide limitless options, each with a choice of legendary Shure microphones. Over 1400 selectable, pre-programmed frequencies are available and Automatic Frequency Selection provides a straight shot to a clear channel. ULX Professional system offers more advanced features and controls, including lockable settings and group scan function.

The Shure ULX Professional wireless receiver offers an exceptional value in performance, for both working musicians and sound installers. The expanded feature set of the ULXP4 wireless receiver, with advanced settings and controls including lockable settings and group scan, offers a direct path to full, clear audio signals.

The low-profile, highly durable bodypack ULX1 has all the characteristics to meet the demands of high performance. For use with headworn, lavalier and instrument microphones, as well as guitars and basses. Attaches to belt, waistband or guitar strap with clip for hands-free mobility.

Shure ULXP14D-X1 Features

  • ULX1 bodypack transmitter and WA302 instrument cable
  • Automatic Frequency Selection with group scan function
  • Up to 1440 selectable frequencies
  • 5-segment transmitted audio signal strength meter
  • RF indicator
  • 3-segment transmitter battery fuel gauge
  • Advanced multi-function LCD displays group and channel
  • Mic/Line switch
  • Detachable 1/4-wave antenna
  • XLR and 1/4-inch output
  • Rugged plastic chassis
  • 1/2 rack design

Shure ULXP14D-X1 Specifications

RF Carrier Frequency Range
X1/944-952MHz
Approx. Working Range
300 Feet (100m)
Overall Frequency Response
25Hz - 15kHz, (±2dB)
Impedance
ULX1 (input): 1 Megaohm
ULXS4, ULXP4 (output): 50ohms at line level; 2000 ohms at mic level
Modulation
±38 kHz deviation compressor-expander system with pre and de-emphasis
No of Channels
Over 1400 User Selectable Frequencies (Frequency X1 / 944 - 952 MHz)
Dynamic Range
>100dB, A-weighted
RF Sensitivity
1.26 uV for 12dB SINAD (typical)
Image Rejection
80dB typical
Spurious Rejection
75dB typical
Ultimate Quieting
Reference ±38 kHz deviation: > 105dB, A-weighted
Distortion
System Distortion (reference ±38 kHz deviation, 1 kHz modulation) 0.3% total harmonic distortion, typical
No of Simultaneous Systems
Up to 20
Operating Temperature
-4 to 120deg. F (-20 to 49deg. C)
Receiver: Type of Outputs
8 to 9 hours (with 9V alkaline battery)
Receiver: Headphone Monitoring
No
Receiver: Power Requirements
14 - 18VDC (negative ground), 550mA External Power Supply - PS40, Included, Now with Locking DC Connector!
Receiver: Display
Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning.
Receiver: Mounting Options
Rack / Table Top Mount 1/2 Rack Space
Receiver: Output Level
XLR connector (into 600 ohm load): +3.9dBV (line), -17dBV (mic)
1/4 inch connector (into 3000 ohm load): -2dBV
(±38 kHz deviation, 1 kHz tone)
Receiver: Antenna Type
Internal
Transmitter: Type of Input Connector
TAF4 4-Pin Mini Connector
Transmitter: Type of Microphone
WA302 Instrument Cable x2
Transmitter: Battery Type/Approx. Life
8 to 9 hours (with 9V alkaline battery)
Transmitter: Mute Switch
Yes
Transmitter: Level Control
Yes, 25dB gain adjustment range
Polarity
Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output
Antenna Type
Removable 1/2 Wave
Display
Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning)
Dimensions
Receiver: 1.72 x 8.56 x 6.88" (43.68 x 217.4 x 174.75mm)
Transmitter: 3.86 x 2.68 x 1.10" (98 x 68 x 27.94mm)
Weight
Receiver: 2.8 oz (79.37 g) without Battery
Transmitter: 2 lbs., 7 oz. (1105 g)
