G3/470-505 MHz
300 Feet (100m)
25 Hz - 15 kHz, (+/-2 dB)
Greater Than 90 dB
Over 1400 User Selectable Frequencies
Up to 20
Balanced XLR - 22 Ohms, 1 = Ground, 2 = Hot, 3 = Cold
Unbalanced 1/4" Phone Jack - 3k Ohms, Tip = Hot, Ring/Sleeve = Gnd
No
14 - 18 Vdc (negative ground), 550 mA
External Power Supply - PS40, Included, Now with Locking DC Connector
Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning
Rack / Table Top Mount 1/2 Rack Space
Wire Type
TAF4 4-Pin Mini Connector
Yes, Use any of the Shure Lavalier, Headset, Instrument Microphones, or Guitar/Bass/XLR Adapter Cables that terminate to a Mini 4-pin TA4F Connector
Non-Rechargeable Type
9v Lithium Battery / 21 Hours (Recommended)
Alkaline Battery / 8 - 9 Hours (Recommended)
9v Carbon-Zinc Battery / 5 Hours (NOT Recommended)
Rechargeable Type
Ni-Cad Battery / 2 Hours (NOT Recommended)
Ni-MH Battery / 2.5 Hours (NOT Recommended)
Yes
Yes, 25 dB Gain Adjustment Range
Removable 1/2 Wave, Rear Mounted
Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning)
Receiver: 1.72 x 8.56 x 6.52" (43 x 214 x 163mm)
Body-Pack Transmitter: 3.86 x 2.68 x 1.10" (96.5 x 67 x 26.7mm)
Receiver: 2.8 oz. (79.3 g) without Battery
Body-Pack Transmitter: 37oz (1049 g)

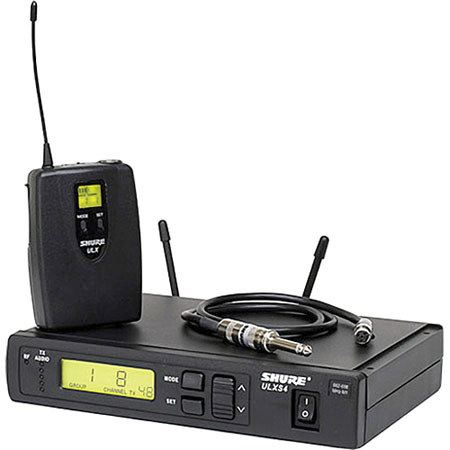

The Shure ULXS14-G3 wireless systems provide professional wireless microphone solutions for broadcast, performances, conferences, houses of worship, schools and businesses. The system includes the ULXS4 diversity receiver, ULX1 bodypack transmitter and WA302 instrument connecting cable.
The ULXS4 receiver operates on UHF frequencies, offering over 1400 user selectable frequencies to choose from. The dual antenna design represents diversity technology, which provides optimum resistance against RF interference and drop-out. Dual internal receivers are set to the same frequency and are constantly vying for the strongest reception. The receiver features a balanced XLR output that is switchable between mic and line level signal as well as an unbalanced 1/4" Phone output. A multifunction LCD provides group and channel information, transmitter battery life and more. Two 5-segment LED's provide audio and RF metering.
The ULX1 bodypack transmitter is lightweight and portable featuring a belt-clip for use with camera and guitar straps, belts, waistbands etc. The transmitter also features over 1400 user selectable UHF frequencies and a comprehensive LCD displays group and channel information and more. An input attenuation switch allows 0dB and 20dB output. Adjustable audio gain control is provided and the transmitter boasts 8-9 hour battery life on a single 9V battery.
The WA302 instrument cable features a 4-pin mini connector and 1/4" Phone male connector. The cable's 4-pin mini (TA4F) end connects to the ULX1 bodypack transmitter and the 1/4" phone end provides a direct input for guitar, bass, electric stringed instruments and more. The cable measures 2.5 feet (1.2m) in length.
