Shure

Shure UR14D+-G1 Professional Diversity Wireless Microphone System, Includes UR4D+ Dual Diversity Receiver, (2) UR1 Bodypack Transmitters

SKU: SHUR14DG1 MFR: UR14D+-G1
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$5,624.00 List Price

Our Price

$4,499.01
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About the Shure UR14D+-G1

The Shure UR14D+-G1 Professional Diversity Wireless Microphone System is primarily designed for touring, stage performances, fixed installation in large clubs, theaters, houses-of-worship, large scale presentations and more. This package enables two microphone transmitters to operate simultaneously and includes the UR4D+ dual diversity receiver and two UR1 bodypack transmitters.

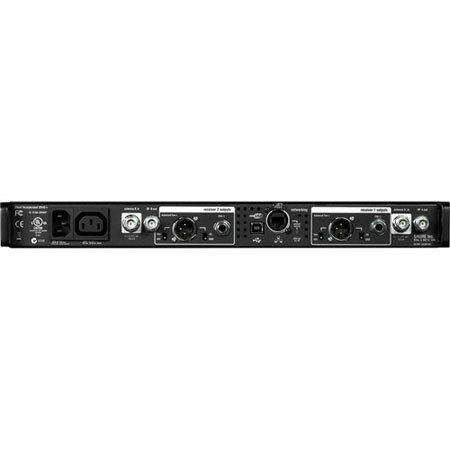

The UR4D+ dual diversity receiver is a durable, single space, rack-mountable unit that is designed to receive signal from two transmitters simultaneously. The UR4D+'s diversity design aides in minimizing Radio Frequency (RF) interference and noise. Dual back lit LCDs provide access to all programmable parameters. Audio outputs include a microphone / line level switchable balanced XLR with ground lift and 1/4" phone connectors. USB and Ethernet connections are provided for direct integration with a PC and network arrays.

The UR1 bodypack transmitter features a cast magnesium housing, protecting the transmitter from rigorous use while remaining light weight. The UR1 bodypack does not include a microphone, however the TA4-male connection is compatible with Shure lavaliers, head-worn microphones and instrument cables featuring a TA4-female connection. The transmitter is capable of 10 or 50 mA output power, enabling extended range whenever necessary. The UR1 features a backlit LCD display and is powered up to 9 hours on 2 AA alkaline batteries (low RF power).

Shure UR14D+-G1 Includes

  • Shure UR4D+ Dual Diversity Receiver
  • 2 x UR1 Bodypack Transmitters
  • 2 x Transmitter Antennas (UR1)
  • Rack Mount Hardware
  • 4 x AA Batteries
  • 2 x 1/2 Wave Antennas (UR4)
  • 2 x Antenna Hole Plugs
  • 4 x Rackmount Screws with Washers
  • 2 x Antenna Cables
  • IEC Power Cable
  • IEC Power Extension Cable
  • Ethernet Network Cable
  • 2 x RF Distribution Cables
  • Wireless Workbench Software
  • Transmitter Carrying Case
  • 2 x Threaded TA4F Adapters (UR1)
  • Shure Warranty

Shure UR14D+-G1 Features

  • UR4D+ Wireless Receiver: 2400 Selectable Frequencies Across 60 MHz Bandwidth
  • UR4D+ Wireless Receiver: Track Tuning Filtering Technology
  • UR4D+ Wireless Receiver: Up to 60 Preset Compatible Systems/Band (140 w/Multiple Bands, Region Dependent)
  • UR4D+ Wireless Receiver: Networked Automatic Frequency Selection
  • UR4D+ Wireless Receiver: Automatic Transmitter Setup (including Custom Group Upload)
  • UR4D+ Wireless Receiver: Flash Memory to Store Six 60-channel Custom Frequency Groups
  • UR4D+ Wireless Receiver: Shure Patented Audio Reference Companding
  • UR4D+ Wireless Receiver: Multi-function Bit-mapped Backlit LCD
  • UR4D+ Wireless Receiver: Built-in USB & Ethernet Network Compatibility
  • UR4D+ Wireless Receiver: Shure Wireless Workbench Control/Monitoring Software
  • UR4D+ Wireless Receiver: Remoteable Antennas
  • UR4D+ Wireless Receiver: Shure Microprocessor-controlled Diversity
  • UR1 Bodypack Transmitter: Switchable RF power (10/50mW or 10/100mW, regionally dependent)
  • UR1 Bodypack Transmitter: Durable, lightweight magnesium construction (3.25 oz / 94 g)
  • UR1 Bodypack Transmitter: Frequency and power lockout
  • UR1 Bodypack Transmitter: Bit-mapped backlit LCD display
  • UR1 Bodypack Transmitter: 2 AA Batteries provide up to 9 hours continuous use
  • UR1 Bodypack Transmitter: Infrared automatic transmitter sync
  • UR1 Bodypack Transmitter: Removable antenna

Shure UR14D+-G1 Specifications

Type of System Dual BodyPack UHF, Rackmount Type Receiver
RF Carrier Frequency Range G1 / 470-530MHz
Approx. Working Range 500 feet (150 meters) typical conditions
1600' (500 meters) line-of-sight, outdoors for a single system
Overall Frequency Response 40Hz to 18kHz +/- 1dB
Signal-to-Noise Ratio Ultimate Quieting (ref. 45 kHz deviation)
< 100 dB, A-weighted
No. Of Channels 2400 Selectable Frequencies Across 60 MHz Bandwidth
No. Of Simultaneous Systems Up to 60 Preset Compatible Systems/Band (140 w/Multiple Bands, Region Dependent)
Type of Receiver UR4D+ Dual Receiver - Diversity
Receiver: Type of Outputs XLR 3-pin: Mic / Line Switchable, Balanced Low-Z with Ground Lift Switch
1/4" Phone: 200 ohms
USB: Computer Interface
RJ-45: Ethernet Network Interface
Receiver: Headphone Monitoring 1/4" Phone with level control dial
Receiver: Power Requirements 100 to 240 Vac, 50/60Hz
0.8 Amps max
Receiver: Display Backlit LCD: Group and Channel, Frequency, Automatic Transmitter Sync, Receiver name, Output Level, Squelch, Receiver Lock, LCD View, Contrast, ToneKey, Network Parameters
Receiver: Mounting Options Rack Mount Hardware (Included)
Receiver: Antenna Type Two band dependent antennas
Type of Transmitter UR1 UHF Frequency Agile BodyPack (x2)
Transmitter: Type of Input Connector TA4-Male (mini 4-pin male connection)
Transmitter: Interchangeable Mic Heads Compatible with lavalier and head worn microphones with TA4-Male connectors
Transmitter: Battery Type/Approx. Life 1.5V AA Alkaline Batteries x2
9.5 hours (low power)
6 hour (high power)
Transmitter: Level Control Gain: -10dB to +20dB
Transmitter: Antenna Type Flexible Antenna
Transmitter: Display Backlit LCD
Dimensions (W x H x D) Transmitter: 2.38" x 3.84" x 0.66" / 60.45 x 97.54 x 16.76 mm
Receiver: 19" x 1.72" x 14.39" / 482.6 x 43.69 x 365.51 mm
Weight Transmitter: 3.4 oz / 96.39 g (without battery)
Receiver: 11.2 lbs / 5.08 kg
