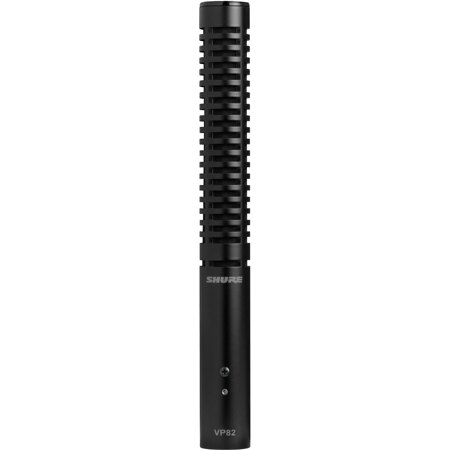

Shure VP82 End-Address Shotgun Condenser Microphone with Zipper Pouch and Foam Windscreen

Shure

About Shure VP82

The Shure VP82 End-Address Shotgun Condenser Microphone is compact, lightweight and exhibits natural off-axis sound rejection. The microphone's size, side noise rejection and overall sound are a tailored fit for camera mounted applications, small A/V field recordings and other applications requiring a compact, high-quality shotgun microphone. The microphone ships with a zippered pouch and windscreen.

Shure VP82 Features

  • Integrated preamplifier design (not modular)
  • Wide aperture for near-field sound sources
  • Provides natural off-axis rejection
  • Compatible with VP89S premium accessories
  • Rugged, roadworthy construction

Shure VP82 Specifications

Cartridge Type
Electret Condenser
Frequency Response
150 to 20,000 Hz
Polar Pattern
Supercardioid / lobar
Output Impedance
144 Ohms
Sensitivity
-36.0 dBV/Pa (2.11 mV) (open circuit voltage, @ 1 kHz, typical)
Maximum SPL (1 kHz at 1% THD)
2500 ohms load: 137.5 dB SPL
1000 ohms load: 131.5 dB SPL
Signal-to-Noise Ratio
79 dB
Dynamic Range (@ 1 kHz)
2500 ohms load: 122.5 dB
1000 ohms load: 116.5 dB
Clipping Level (@ 1 kHz, 1% THD)
2500 ohms load: 7.0 dBV
1000 ohms load: 0.0 dBV
Self Noise
15.0 dB SPL-A (equivalent SPL, A-weighted, typical)
Common Mode Rejection
= 55 dB (20 to 20,000 Hz)
Operating Temperature Range
-18deg.C (0deg.F) to 57deg.C (135deg.F)
Storage Temperature Range
-29deg.C (-20deg.F) to 74deg.C (165deg.F)
Operating Relative Humidity
0 to 95%
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Housing
Satin-black vinyl painted aluminum alloy with stainless steel screen
Power Requirements
11-52 V DC phantom power (IEC-61938), < 2.0 mA
Length
195 mm (7.68" )
Weight
76 g (2.7 oz)
