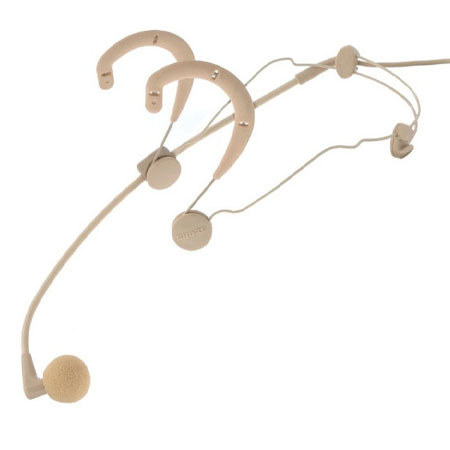

Shure WBH54 Supercardioid Headworn Condenser Microphone with TA4F (Mini 4-Pin) Connector, Tan

Shure
SKU: SHWBH54T MFR: WBH54T

List Price: $374.00

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $24.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $84.95
20% Off

Our Price

$299.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Shure WBH54

The Shure WBH54 Supercardioid Headworn Condenser Microphone (Tan) is designed for applications where unconspicuous appearance and incredible sound quality are required. It's lightweight, adjustable, modular headband, flexible wireframe and soft earpieces provide a comfortable fit while still allowing the WMH54 to be positioned as close to the left or right corner of the mouth as possible, assuring maximum voice pickup. The WMH54 microphone itself features an extended frequency response and high SPL handling ability.

The WMH54 is uniquely designed to provide the sound quality and performance consistency required for environments such as professional theater, event production, trade shows or seminars - the best sound with minimal visibility.

Shure WBH54 Features

  • Comfortable, latex-free Dynaflex earforms that hide behind the ears
  • Thin, non-reflective wireframe that is easily hidden underneath hair
  • Ultra-thin detachable microphone boom mount for right or left positioning
  • Interchangeable frequency response caps (mild or high, two pieces each)
  • Clothing clip for securing cable
  • Corrosion resistant
  • Easy to clean
  • Durable carrying case for protective storage
  • TA4F (Mini 4-Pin) connector for use with wireless systems

Shure WBH54 Specifications

Transducer
Electret Bias Condenser
Polar Pattern
Supercardioid
Frequency Response
50Hz to 20KHz
Dynamic Range (Typical)
110 dB (max. SPL with 1k load, minus typical A-wt. noise)
Signal-to-Noise Ratio
55 dB at 94 dB SPL
Maximum Sound Pressure Level
149 dBSPL at 1% THD/1 kOhm load
Preamp Output Impedance
136 ohms
Current Drain
4.6 mA (preamp and microphone)
Output Noise
39.0 dB typical; 42.0 dB maximum
Power Requirements
Phantom power; 11 to 52 Vdc positive on pins 2 and 3, return on pin 1 (ground)
Output Impedance
150 Ohms
Output Connectors
4-Pin, Tini Q-G Connector
Dimensions
1.5 m (4.92 ft), small-diameter, shielded, with mini 4-pin connector (TA4F)
Weight
135.35 g (4.75 oz.) microphone and in-line preamp
