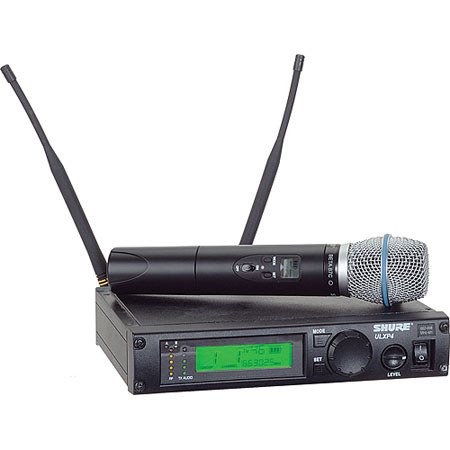

About the Shure ULXP24/BETA87C-M1

The Shure ULXP24/BETA87C-M1 Wireless Handheld Microphone System provides professional wireless microphone solutions for broadcast, performances, conferences, houses of worship, schools and businesses. This wireless handheld system includes the ULXP4 receiver and ULX2 handheld transmitter with a Shure Beta 87C supercardioid head.

The ULXP4 receiver operates on UHF frequencies, offering over 1400 user selectable frequencies to choose from. All the standard features of the ULXS4 receiver are present and in addition the ULXP4 is equipped with features that meet the demands of professionals. Additional features include TV channel display, frequency and volume locks, SCAN indicator, squelch indicator and receiving antenna indicators. The dual antenna design represents diversity technology, which provides optimum resistance against RF interference and drop-out. Dual internal receivers are set to the same frequency and are constantly vying for the strongest reception. The receiver features a balanced XLR output that is switchable between mic and line level signal as well as an unbalanced 1/4" phone output. A multifunction LCD provides group and channel information, transmitter battery life and more. Two 5-segment LEDs provide audio and RF metering.

The ULX2 Handheld Transmitter features the Shure Beta 87C supercardioid capsule. Like the bodypack transmitter, the ULX2 provides 1400 user selectable frequencies, a comprehensive LCD display provides channel and frequency information, battery life and more. The Shure Beta series microphones provide higher input levels than the SM series. The supercardioid polar pattern is effective against off-axis noise, causing feedback and unwanted ambient noise. The ULX2 is powered with a standard 9 V alkaline battery.

Shure ULXP24/BETA87C-M1 Includes

  • Shure ULXP4 Diversity Receiver
  • ULX2 Handheld Transmitter
  • Beta 87C Capsule
  • Shure Warranty

Shure ULXP24/BETA87C-M1 Features

  • Shure Beta 87C supercardioid capsule
  • Automatic Frequency Selection with group scan function
  • Over 1400 selectable frequencies
  • Predictive Diversity
  • 5-segment transmitted audio signal strength meter
  • 5-segment RF meter
  • 3-segment transmitter battery fuel gauge
  • Advanced multi-function LCD displays group and channel
  • Mic/Line switch
  • Remotable 1/2-wave antenna
  • Frequency and volume lockout
  • XLR and 1/4-inch output
  • Rugged metal chassis
  • 1/2 rack design

Shure ULXP24/BETA87C-M1 Specifications

RF Carrier Frequency Range M1/662-698 MHz
Approx. Working Range 300 Feet (100m)
Overall Frequency Response 25Hz - 15kHz, (±2 dB)
Impedance ULX1 (input): 1 Megaohm
ULXS4, ULXP4 (output): 50ohms at line level; 2000 ohms at mic level
Modulation ±38 kHz deviation compressor-expander system with pre and de-emphasis
No of Channels Over 1400 User Selectable Frequencies
Dynamic Range >100dB, A-weighted
RF Sensitivity 1.26 uV for 12dB SINAD (typical)
Image Rejection 80dB typical
Spurious Rejection 75dB typical
Ultimate Quieting Reference ±38 kHz deviation: > 105dB, A-weighted
Distortion System Distortion (reference ±38kHz deviation, 1kHz modulation)0.3% total harmonic distortion, typical
No of Simultaneous Systems Up to 20
Operating Temperature -4 to 120deg. F (-20 to 49deg. C)
Receiver: Type of Outputs 8 to 9 hours (with 9V alkaline battery)
Receiver: Headphone Monitoring No
Receiver: Power Requirements 14 - 18VDC (negative ground), 550mA
External Power Supply - PS40, Included, Now with Locking DC Connector
Receiver: Display Yes, Power On Indicator, Diversity Signal Indicators and Audio Peak Indicator, Channel, Group, Transmitter Low Battery Warning.
Receiver: Mounting Options Rack / Table Top Mount 1/2 Rack Space
Receiver: Output Level XLR connector (into 600 ohm load): +3.9dBV (line), -17dBV (mic)
1/4 inch connector (into 3000 ohm load): -2dBV
(±38 kHz deviation, 1kHz tone)
Receiver: Antenna Type Internal
Transmitter: Type of Microphone Beta 87C Condenser Supercardioid Head
Transmitter: Battery Type/Approx. Life 8 to 9 hours (with 9V alkaline battery)
Transmitter: Mute Switch Yes
Transmitter: Level Control Yes, 25dB gain adjustment range
Transmitter: Impedance Active Impedance: 20k Ohms
Transmitter: Input Level Maximum Input Level (1kHz, 1% THD): 12dBV (10 Vp-p)
Transmitter: Display Power On/Off Indicator, 3-Segment Low Battery Indicator, Channel and Group, Peak Icon (Input Overload Warning)
Dimensions Transmitter: 8.8 x 2" (223.5 x 51mm)
Receiver: 1.72 x 8.56 x 6.88" (43 x 214 x 172mm)
Weight Transmitter: 9.1 oz. (258 g) without battery
Receiver:2 lb, 7 oz (1.10 kg)
