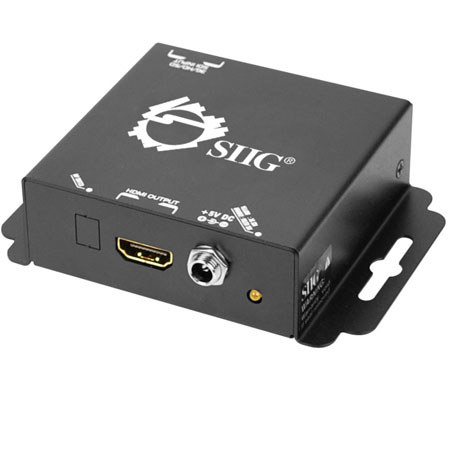

SIIG Video Console/Extender, Extends up to 180 Feet, Black
SIIG

SIIG Video Console/Extender, Extends up to 180 Feet, Black

SKU: SICEH20K11S1 MFR: CE-H20K11-S1
What's Included
What's Included With This Item:
  • SIIG HDMI over Single Coax Extender (TX & RX Units)
  • Power Adapter
  • Installation Kit
  • User's Manual
  • SIIG 3 Years Limited Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$489.95
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The SIIG Video Console/Extender is designed to extend HDMI video/audio transmission over one coaxial cable. It supports 7.1-channel audio and digital stereo audio and extends transmission distances of up to 180ft @1080p at 24-bit color depth. The SIIG Video Console/Extender is the HDMI extender solution enabling you to transmit high quality video and audio signals from DVD players, Blu-ray Disc player, PS3, PC and many more to a distant display device.

The HDMI over Single Coax Extender is fully compliant with industry standards including HDMI 1.3c and HDCP 1.1. In addition, it is FCC and CE regulatory approved, meets RoHS hazardous materials standards.

What's Included With This Item

  • SIIG HDMI over Single Coax Extender (TX & RX Units)
  • Power Adapter
  • Installation Kit
  • User's Manual
  • SIIG 3 Years Limited Warranty

Key Features

  • Extends HDMI signals up to 180ft over one Coaxial cable
  • Supports 7.1-channel or digital stereo audio
  • HDMI and HDCP compliant
  • Metal housing with wall mount design

Technical Specs

Video bandwidth Single-link 225MHz (6.75Gb/s)
Input TMDS signal 1.2V (peak-to-peak)
Input DDC signal 5V (peak-to-peak, TTL)
Power consumption 3 Watts
Transmitting unit- Input 1x HDMI (Type A, 19-pin female)
Transmitting unit- Output 1x BNC
Receiving unit-Input 1x BNC
Receiving unit-Output 1x HDMI (Type A, 19-pin female)
Transmission Full HD (1080p @ 24-bit): up to 180ft
Operating temperature 0 to 40 degrees C (32 to 104 degrees F)
Storage temperature -20 to 60 degrees C (-4 to 140 degrees F)
Relative humidity 20% to 90% RH (non-condensing)
Power supply Input: 100-240VAC
Output: 5V DC, 2A
Compliance HDMI 1.3c
HDCP
Certifications FCC
CE
WEEE
RoHS
Dimensions (W x H x D) Transmitting unit: 2.91 x 4.13 x 1.06" / 7.39 x 10.49 x 2.69cm
Receiving unit: 2.91 x 4.13 x 1.06" / 7.39 x 10.49 x 2.69cm
Weight Transmitting unit: 0.49 lbs / 0.22kg
Receiving unit: 0.49 lbs / 0.22kg
