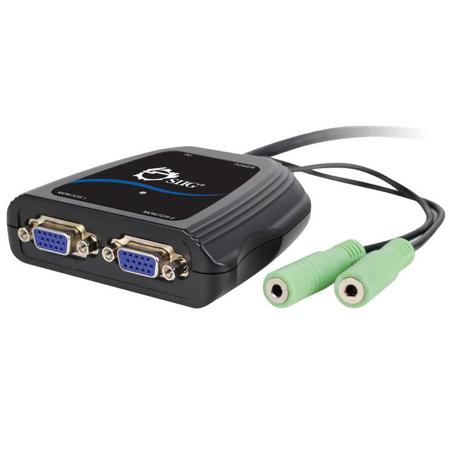

SIIG 1x2 VGA and Audio Splitter
See all SIIG items

SIIG 1x2 Compact VGA and Audio Splitter, 1920x1440 Resolution, 300MHz Video Bandwidth

SKU: SICEVG0B11S1
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

SIIG 1x2 VGA and Audio Splitter Specifications

  • Supports

    VGA, SVGA, XGA, UXGA and multi-sync monitors
    up to 1920x1440 resolution
    Analog stereo Audio via 3.5mm jacks

  • Video bandwidth

    300MHz

  • Display mode

    Mirror

  • Input

    1x, VGA, DB15, 15-pin, Male
    1x, 3.5mm Jack, Male
    1x, USB, Type A, Male, for power only

  • Output

    2x, VGA, DB15, 15-pin, Female
    2x, 3.5mm Jack, Female

  • Operating temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage temperature

    23 to 160 deg. F (-5 to 70 deg. C)

  • Certifications/Standards

    FCC, CE, RoHS

  • Dimensions (W x H x D)

    3.53 x 2.94 x 0.98" / 89.66 x 74.67 x 24.89mm

  • Weight

    0.43lbs / 0.19kg

  • UPC Code

    662774013121

About SIIG 1x2 VGA and Audio Splitter

The SIIG 1x2 Compact VGA and Audio Splitter allows you to simultaneously distribute VGA video signal from a single source to two VGA monitors with analog stereo audio, delivering vivid picture quality. It supports up to 1920 x 1440 resolutions, VGA, SVGA, XGA, UXGA and multi-sync monitors, analog stereo audio via 3.5mm jacks and 300 MHz video bandwidth with operating distance up to 50M (164ft).

SIIG 1x2 VGA and Audio Splitter Features

  • Simultaneously distributes VGA video signal to 2 displays with analog stereo audio
  • Maintains signal strength in all applications up to 1920x1440
  • Compact and daisy-chainable
  • Daisy-chainable to expand beyond 2 monitors
  • Extends video signal Up to 50m / 164.04'

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Simultaneously distributes VGA video signal to 2 displays
  • Maintains signal strength in all applications up to 1920x1440
  • Compact and daisy-chainable
  • Daisy-chainable to expand beyond 2 monitors
  • Extends video signal Up to 50m / 164.04'

What's in the box:

  • SIIG 1x2 Compact VGA and Audio Splitter
  • 4x Rubber Pads
  • Installation Guide
  • SIIG 3 Year Limited Warranty
