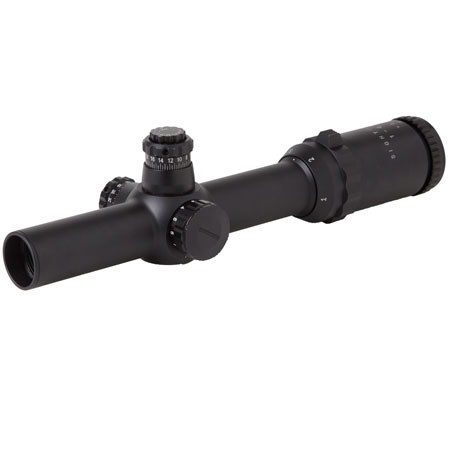

Sightmark 1-6x24 Triple Duty M4 Riflescope, Matte Black Finish with Illuminated Circle Dot Reticle, 30mm Tube

Sightmark
SKU: SM13021CD MFR: SM13021CD
Sightmark 1-6x24 Rifle Scope: Picture 1 thumbnail Sightmark 1-6x24 Rifle Scope: Picture 2 thumbnail Sightmark 1-6x24 Rifle Scope: Picture 3 thumbnail Sightmark 1-6x24 Rifle Scope: Picture 4 thumbnail

About Sightmark 1-6x24 Rifle Scope

The Sightmark 1-6x24 Sightmark Triple Duty Riflescope (Circle Dot Reticle) is an ideal ally for any marksman. With a magnification range of 1x to 6x and an objective lens diameter of 24mm provided via a 30mm one piece tube, the riflescope offers optimum light transmission and an enhanced field-of-view.

Integrating phase-corrected and multi-coated optics, the 1-6x24 Sightmark Triple Duty Riflescope offers a bright and clear view, allowing you to easily sight and shoot your targets. Large front diopter adjustment knobs along with tool-less windage and elevation locking turrets with 1/2" MOA clicks, enable you to precisely adjust your view for accurate long range shots.

A red / green-illuminated circle dot reticle assists shooters in easily sighting and zooming onto their targets even in low-light conditions. With a nitrogen purged interior, the 1-6x24 Sightmark Triple Duty Riflescope is waterproof and fogproof, enabling usage in challenging weather conditions. The riflescope easily endures rough usage owing to its shockproof design.

Sightmark 1-6x24 Rifle Scope Features

  • Offers optimum light transmission and an enhanced field-of-view via a magnification range of 1x to 6x and an objective lens diameter of 24mm integrated into a 30mm one piece tubetube
  • Offers a bright and clear view phase-corrected and multi-coated optics, allowing you to easily sight and shoot your targets
  • Enables precise view adjustments for accurate long range shots via large front diopter adjustment knobs along with tool-less windage and elevation locking turrets with 1/2" MOA clicks
  • Assists shooters in easily sighting and zooming onto their targets even in low-light conditions via a red / green-illuminated circle dot reticle
  • Can be used in challenging weather conditions owing to its waterproof and fogproof design accomplished via nitrogen purging
  • Endures rough usage owing to its shockproof design
  • Includes two 30mm mounting rings
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Sightmark 1-6x24 Rifle Scope Specifications

Reticle type
Circle Dot Reticle
Reticle color
Black/red
Illuminated (yes/no)
Yes
Reticle brightness settings
0-11
Magnification
1-6x
Objective lens diameter
24 mm
Eyepiece diameter
36.5 mm
Exit pupil diameter
16.0-4.0 mm
Eye relief
110-88 mm
Field of view (m at 100m)
33.47-5.53
Field of view (ft at 100yd)
100.4-16.6
Diopter adjustment (+/-)
+2/-3
Diopter adjustment (dpt)
+2/-3
Tube diameter (mm)
30mm
Max internal adjustment (MOA)
90
Parallax setting (yds)
100YDS
Windage (MOA)
90
Elevation (MOA)
90
Windage & Elevation lock (yes/no)
Yes
MOA adjustment (one click)
1/2"
Maximum recoil (G's)
1000G
Battery type
CR2032
Battery life
80-150 hours
Battery voltage (V)
3V
Sunshade
No
Waterproof/nitrogen filled (yes/no)
Yes
Shockproof
Yes
Fog proof
Yes
Focal plane
2nd
IP Standard (water rating)
IPX4
Body material
HI-Grade Aluminum
Lens material/type
K, ZF, BaK
Lens coatings
Full bond AR coating
Mount type
Weaver
Operating temperature
-20deg.C-60deg.C
Storage temperature (deg.C)
5deg.C-35deg.C
Dimensions
390x116x85 mm / 15.35x4.56x3.34"
Weight
19.4 oz / 549.98 g
