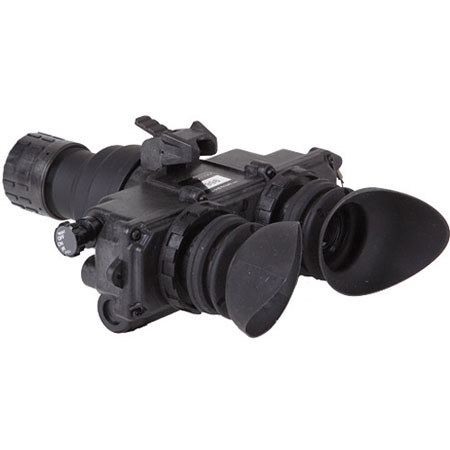

Sightmark PVS-7 Gen 3 Pinnacle Night Vision Binocular, 64lp/mm Typical Resolution, 26mm Focal Length, f/1.2 Lens

Sightmark
SKU: SM15064 MFR: SM15064
Sightmark PVS-7: Picture 1 thumbnail Sightmark PVS-7: Picture 2 thumbnail

Our Price

$2,999.97
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Sightmark PVS-7

The Sightmark PVS-7 Gen 3 Pinnacle Night Vision Binocular is a mil-spec, multi-purpose NVD designed for tactical professionals. This PVS-7 bi-ocular features an ITT Pinnacle intensifier tube, which provides 64lp/mm resolution and 25:1 signal-to-noise performance under nominal conditions. A biocular NVD is more comfortable to use than a monocular device during prolonged observations and recon operations.

An autogated power supply and minimal imaging artifacts separate the Pinnacle from other Gen 3 tubes. Autogating allows the image intensifier to continuously adjust the voltage applied to its microchannel plate, resulting in optimal image quality, reduced blooming and extended tube life. Like other Gen 3's, the Pinnacle features Automatic Brightness Control and auto-deactivation circuitry that protects the operator's eyes when the NVD is exposed to excessive brightness.

A wide viewing angle, bright f/1.2 optics and eight-inch close focus ability make the PVS-7 well-suited for aviators and tacticians performing close-quarter operations. This versatile NVD has a quick-release mount that enables hands-free operation with head gear and helmet attachment.

In addition to its optical performance and functionality, the PVS-7 also meets Mil-Std 810G environmental specifications for temperature and water-resistance. The built-in infrared illuminator equips the PVS-14 for pitch dark observations right out of the box. Additionally, a broad diopter correction range and interpupillary adjustment range help make Sightmark's version of the PVS-7 a full-featured NVD for wide-field observations.

Sightmark PVS-7 Features

  • Optical Performance: 1x magnification, 26mm objective
  • Optical Performance: 26mm f/1.2 lens system
  • Optical Performance: 15mm eye relief
  • Optical Performance: 8-inch minimum focus distance
  • Image Intensifier: Gen 3 Pinnacle tube
  • Image Intensifier: GaAs photocathode with thin-film barrier
  • Image Intensifier: Autogated power supply
  • Image Intensifier: 64lp/mm typical resolution
  • Image Intensifier: 25:1 typical signal-to-noise ratio
  • Image Intensifier: Automatic brightness control
  • Image Intensifier: Bright light cut-off circuitry
  • Built-in infrared illuminator
  • In-view low-battery and IR activation indicators
  • Quick-release mount for head / helmet attachment
  • 55-71mm interpupillary adjustment range
  • Manual focus objective lens
  • Mil-Std 810G compliant housing
  • -58 to 131deg.F operating temperature
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Sightmark PVS-7 Specifications

Intensifier Tube
Gen 3 Pinnacle
Resolution
64 lp/mm (typical)
Signal to Noise Ratio
25:1
Mean Time Before Failure
10,000 hours
Magnification
1.0x
Lens System
26 mm, f/1.2
Field of View
105 ft (32 m) at 100 yd
Minimum Focus Distance
8" (20 cm)
Eye Relief
15 mm
Interpupillary Adjustment
55 - 71 mm
Dioptric Correction
-6 to +2
Infrared Illuminator
Yes
Power Supply
(2) AA battery
Runtime
Up to 40 hours of continuous operation at room temperature
Weatherproofing
Mil-Std 810G
Operating Temperature
-58 to 131deg.F (-50 to 55deg.C)
Dimensions
6.4x6x3" / 16.25x15.24x7.62 cm
Weight
18 oz / 510.29 g
Mfr #
SM15064
SKU
SM15064
