SmallHD DP7-PRO 7.7" OLED On Camera Field Monitor, 1280 x 800

Our Price

$1,999.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Availability: In Stock & Ready to Ship

Free Expedited Shipping

See all shipping options

Ways To Save up to $449.00

More Buying Options

Product Highlights

  • Perfect Rec.709 Color Gamut via 3D LUT
  • True black levels - infinite contrast ratio
  • 1280x800 high definition display resolution
  • High-res full-screen waveform & scopes
  • 8 proximity-sensing Smart Keys
  • X-Port expandability port
  • LCD Video Monitor
  • Battery Mount

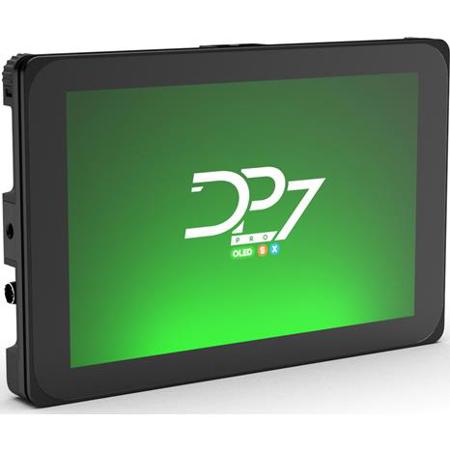

SmallHD MON-DP7-PRO-LCD: Picture 1 regular $1,999.00

About SmallHD MON-DP7-PRO-LCD

Simple. powerful. fast.
The DP7-Pro redefines the way field monitors operate on set. With a precise attention to detail making the user experience uncomplicated yet extremely robust, speed is a natural byproduct.

Real-Time Custom 3D LUTs at the Camera

Signal conversion
Shoot SDI and send your feed to another HDMI client monitor, or shoot on an HDMI-only DSLR and convert the signal to SDI for long cable run to a video village, the DP7-PRO has you covered without the need for any extra equipment totake up space in the gear bag

speedy sync
The DP7-Pro takes the idea of speed even further, with the fastest signal sync time of any monitor in the world. While some can take up to 7 seconds to displayHDMI when plugged in, the DP7 is instantaneous.

Future Proofing
Upgradable with firmware updates

your gear, your workflow.
The DP7-Pro is designed to fit into your workflow, not make you learn a new one.Ease of use and flexibility have been painstakingly designed into the core of the monitor to create a hassle-free monitoring experience that just works', no matter which camera system you employ.

Super Strength
Housed in in a reinforced milled aluminum shell yet weighing in at only 1.2lbs, the DP7-Pro is designed for the rigors of production, like accidentaly parking your Jeep on it. It happens to the best of us.

SmallHD MON-DP7-PRO-LCD Features

  • Perfect Rec.709 Color Gamut via 3D LUT
  • True black levels - infinite contrast ratio
  • 1280x800 high definition display resolution
  • High-res full-screen waveform & scopes
  • 8 proximity-sensing Smart Keys
  • "X-Port" expandability port

SmallHD MON-DP7-PRO-LCD Specifications

Resolution
1280x800
Luminance
250 nits (Not ideal scale for OLED ,image appears brighter)
Diagonal
7.7"
Color Gamut
100%
Control Ratio
10,00 0:1
Color Depth
8bit
Viewing Angle
80º/80º/80º/80º
Interface
2 Scroll Wheels + Touch Screen
Dimensions
7.3in x 5.1in x .9in
Weight
1.2 lbs
Power Consumption
16 watts
Inputs
2 x SDI (BNC) - 1 x HDMI - 1 x Composite(Hirose Breakout Cable to BNC) - 1 x Power(Locking Hirose connector:4pin) - 1 x Mini-USB(for Firmware updates) 1 x Battery Input(4-pin Molex connector for battery plates) - 1x SD Card Slot
Outputs
1 x SDI(BNC) - 1 x HDMI
Sensors
4 x Proximity sensors on front (for detecting users hands for intelligent menu assist) - 1 x Accelerometer (Horizon indicator) - 1 x Temperature sensor (to sense internal temp of DP7 to avoid potential damage in extreme situations)
User Interface
Touch Screen, 2 x Ergonomic scroll wheels in each top corner
Physical
Gorrila Glass Touch Screen - 5 rugged 1/4"20 thread points on all sides - All ports recessed for protection - 2 x Tally Indicators
Signal Types
HDMI - SDI - Composite
X-Prt Accessory Slot
Yes
Software - Scopes
Waveform (PIP, Full Screen) - Vectorscope (PIP, Full Screen) - RGB Parade (Full Width) - YCBCR Parade (Full Width) - Histogram (PIP, Full Screen) -
Software - Focus Assist
Intensity Adjustment - Highlight Color Select - Background: Color/B&W
Software - Zebra
2x User selectable ranges
Software - False Color
Yes
Software - Frame Guides
Aspect - Crosshatch - Action Safe - Custom Guide - Crosshair
Other Software Specs
Color Controls
Color Bars
Blue onlys
UI lock -
Smart Keys Customizable/Expandable smart keys - UI Help Text prompts
Signal Routing/Conversion
INPUT: SDI -> SDI & HDMI
SIMULTANEOUS OUTPUT: HDMI -> SDI & HDMI
Power and Battery
included with dp7 Locking Hirose 10v-28v DC connector with AC adapter
Optional Power Accessories
Locking Hirose to 4-Pin XLR Adapter - Locking Hirose to bare wire (DIY kit) - Locking Hirose to D-Tap/P-Tap - V-Mount Battery Plate - Gold Mount Battery Plate w/on screen battery indicator
Mfr #
MON-DP7-PRO-OLED-X
SKU
SMMONOLEDX

SmallHD MON-DP7-PRO-LCD Reviews Powered by TurnTo®

Reviewed by 1 customers


1.0

Excellent Brightness but Bought Used; Was not as describe

By

Bought as a Used Item. Unit received had a scratch on the screen but was not noted in the product description (Adorama's fault rather than Small HD's). The unit also started having ghosting and dithering effects. Works excellently in DIRECT Sunlight. Never knew how bright 1500 NITS was compared to other monitors which were say 400 NITS, but it is a huge difference maker when the sun comes out. Even with a slight overcast in the sky with the sun peaking through a 400 NIT monitor seems too dim compared to 1500 NITS. At Backlight = 0%, the DP7 Pro HB is at about 450 to 500 NITS. At Backlight = 50%, it is hard to discern the difference when Backlight = 100%. Bought the Sony NPF battery kit with this and it is very hard to swap out the batteries as they are very snug tight. Would be hard to swap batteries in the field with one hand quickly. Even with two hands it is a struggle. The battery life indicator only shows the voltage level and in percentages which makes it hard to judge how much power is left in this unit. With the Sony NPF batteries, this unit requires two batteries to run at a time. It drains both batteries equally so if one battery is weaker/older than it becomes the weakest link, thus shortening battery life. I was surprised to learn that this unit comes with a built-in fan. You can control the fan in terms of high, med, low and off. At the high and med setting it is very loud. Luckily you can pre-program each smart key for each setting of the fan for quick adjustments. Gets 1 star out of 5 because of the inaccurate product description. Still waiting for the return label from Adorama. The Customer Service Department has been very swift and easy to deal with so far.
