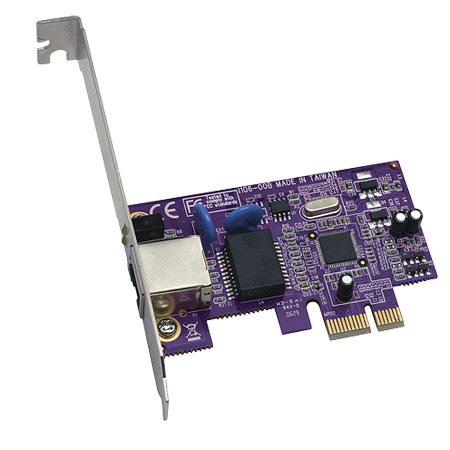

Sonnet Presto Gigabit Ethernet Pro PCIe Adapter Card, Supports Jumbo Packets and Link Aggregation, 1000 Mbps/2000 Mbps Transmission Rates

SKU: SNGE1000LABE

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Sonnet GE1000LAB-E Specifications

  • Network Connectors

    One RJ-45 connector supports 1000Mbps, 100Mbps, 10Mbps network speed and Auto-MDI/MDI-X

  • Bus Interface

    PCI Express 2.0

  • Standard

    Compliant with 10/100/1000 IEEE 802.3 specification

  • Network

    Gigabit Ethernet (1000BaseT, 100BaseTX, 10BaseT)

  • Network Power

    UTP x 1 (Auto-MDI/MDI-X)

  • IRQ Line

    Assigned by system

  • I/O Address

    Assigned by system

  • Transmission Rates

    10 Mbps/20 Mbps;
    100 Mbps/200 Mbps;
    1000 Mbps/2000 Mbps

  • Link

    Supports Link Aggregation

  • Packets

    Maximum packet size: 9000 bytes (Jumbo packets)

  • RoHS Compliant

    Yes

  • Thunderbolt Compatibility

    Any Mac with a Thunderbolt port via Sonnet's Echo Express Thunderbolt-to-PCIe card expansion chassis or other qualified Thunderbolt expansion chassis

  • OS Compatibility

    Mac: Mac Pro with PCIe slots (early 2008-2012)
    OS X 10.7.5+
    OS X Mavericks compatible
    Windows: PC (with PCI Express slots)
    Windows 8
    Windows 7Windows Vista
    Windows Server 2012, 2008

  • UPC Code

    732311010248

About Sonnet GE1000LAB-E

Whether you need to add a third Gigabit Ethernet port to your older Mac Pro for improved performance, or step up to Gigabit Ethernet connectivity for your PC, get a Sonnet Presto Gigabit Pro PCIe Gigabit Ethernet adapter card for PCI Express for an advanced networking solution. This Sonnet card supports link aggregation with your Mac's onboard Gigabit Ethernet ports and full duplex communication to achieve 2000 Mbps transfer rates-the ideal solution for high-bandwidth data transfer requirements. Presto Gigabit Ethernet Pro PCIe also supports 9000 byte jumbo packet transfers (compared to 1500 byte standard packets) to support higher performance and reduced overhead when transferring large files.

It is compatible in Mac Pro (early 2008-2012) and PCs with a PCIe slots. This card is also compatible with any Mac with a Thunderbolt port when installed is a Sonnet Echo Express Thunderbolt-to-PCIe card expansion chassis or other qualified Thunderbolt expansion system. Offering simple configuration, this Sonnet card is easy to use and its support for 1000/100/10BaseT auto-negotiation and full/half duplex communication enable it to be used in most networks.

The Presto Gigabit Pro PCIe supports gigabit speeds over common CAT-5 cabling, so costly cable replacement is unnecessary. If your computer already has onboard Gigabit Ethernet, you can add a Presto Gigabit Pro PCIe and use it for dedicated connection to a printer, AirPort Extreme base station, DSL or cable modem, or a video server, while leaving your onboard Gigabit Ethernet port(s) available for other connections.

Provides Gigabit Ethernet Connectivity to Mac Pro and Windows PCs
Simple way to add or expand Gigabit Ethernet connectivity to any compatible computer

Simple Connection
Supports gigabit speeds on common CAT-5 cabling (no need for costly cable replacement)

Jumbo Packets Support
Supports jumbo packets (Mac and Windows)

Link Aggregation Support
Supports link aggregation with onboard Gigabit Ethernet ports (Mac only)

Full/half duplex


1000/100/10BaseT auto negotiation


Plug-and-Play Installation
Easy setup with Mac computers

Thunderbolt-compatible
Compatible with Sonnet'sEcho Express line of Thunderbolt expansion chassis
