Sonnet

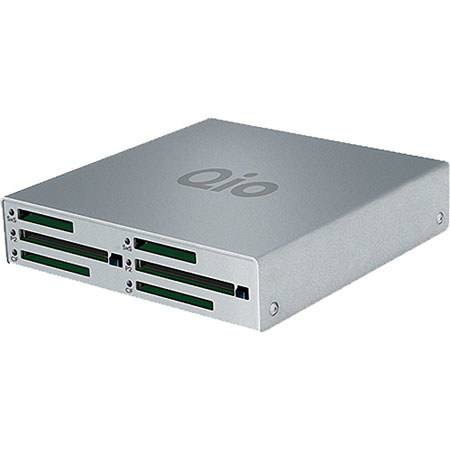

Sonnet QIO-E34 Professional Universal Media Reader/Writer, 21-in-1 Memory Card Adapter, 4-eSATA Port

SKU: SNTQIOE34 MFR: QIO-E34
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$999.00 List Price

Our Price

$764.57 $30 per week
Qty:
Add to Wishlist In Stock

About the Sonnet QIO-E34

The Sonnet QIO-E34 Professional Universal Media Reader/Writer reads from and writes to just about any memory card. This includes: P2, SxS, CompactFlash, SDHC, XD, SATA storage systems with an eSATA interface, all at high speed. Replacing multiple standalone card readers, the reader's dual P2, SxS and CF slots enable you to offload files more efficiently.

The included Sonnet 21-in-1 Multimedia Memory Card adapter handles all other types of memory cards. The device copies files between any cards, attached drives, or host computer with aggregate bandwidth up to 250MB/sec. This is much faster than FireWire or USB adapters. QIO-E34 features 4-eSATA ports.

The QIO-E34 SxS slots double as ExpressCard/34 slots and the P2 slots are compatible with CardBus cards. As a notebook user, this effectively adds 6 expansion card slots. This added compatibility enables you to utilize WiFi, FireWire, USB, Gigabit Ethernet and other adapters. This is possible since Qio's included interface card extends the PCIe bus outside your computer.

Sonnet QIO-E34 Includes

  • Sonnet QIO-E34 Professional Universal Media Reader/Writer
  • Sonnet PCIe Bus Extender ExpressCard/34 Adapter
  • SDHC Adapter
  • Universal 12V Power Supply with 10-Foot Cable
  • 1-Meter External PCIe x1 Interface Cable
  • 1-Meter XLR 4-Pin Power Adapter Cable
  • Carrying Case
  • Software CD
  • User's Guide
  • Sonnet 2 Years Warranty

Sonnet QIO-E34 Features

  • Replaces Multiple Card Readers: Comprehensive memory card compatibility with support for Sony SxS, Panasonic P2, CompactFlash and SDHC cards (with included adapter)
  • Built-In SATA Connections: Integrated, fast SATA host controller based on Tempo SATA E4P with four eSATA ports supports and powers two Fusion F2 SATA storage systems, or supports SATA drive enclosures with up to 20 drives total
  • Fast: Uses PCI Express bus interface to deliver superior performance; aggregate bandwidth of 250MB/sec.
  • Small and Rugged: Strong aluminum case measures just 5.9"x 6.2"x 1.22"
  • ExpressCard/34 interface card
  • Security - Kensington slot
  • Ships with Sonnet Bus Extender ExpressCard/34 interface card

Sonnet QIO-E34 Specifications

Qio Read Performance P2 Card: 25MB/sec
CF Card: 85MB/sec
2X CF Card: 170MB/sec
SxS Card: 90MB/sec
2X SxS Card: 180MB/sec
External Connectors (Qio Enclosure) 2 x CompactFlash,
2 x CardBus (P2),
2 x ExpressCard/34 (SxS),
4 x eSATA,
external PCIe x1 - 18,
3 power
External Connectors (Adapter Card) external PCIe x1 - 18
Data Transfer Speed Up to 250MB/s aggregate
Bus Interface PCI Express x1
Supported Media, CompactFlash Slots Type I CompactFlash
Supported Media, CardBus Slots P2, P2 E-series
Supported Media, ExpressCard/34 Slots SxS; SxS Pro; SDHC using included adapter
Drives Supported Up to 20
Drives Type Supported Serial ATA I & II
Firmware Flash-ROM upgradeable to latest firmware version
Bootability Not Supported
RoHS Compliant Yes
Power 12V@3A input
2 X 12V@ 0.5A output
Absolute Maximum input voltage 14V.
Dimensions (Qio Enclosure) (W x D x H) 5.9 x 6.2 x .1.2 in. / 14.9 x 15.7 x 3 cm
