Made in USA
Sonnet 12TB R800RAID 8-Drive SATA Storage System with PCI Express RAID Controller, Built-in Flexibility, Versatile Performance


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Availability: In Stock Online In Stock Online - Usually ships within 1-3 Days

Free Shipping

See all shipping options

Product Highlights

  • RAID 0/1/4/5/6/10/JBOD Drive
  • Macintosh Operating System
  • Works with PC/Windows
  • SAS / SCSI Interface
  • 8 Drive Bays
  • Holds 12TB
  • 7200 RPM
Sonnet : Picture 1 regular $5,494.50

About Sonnet

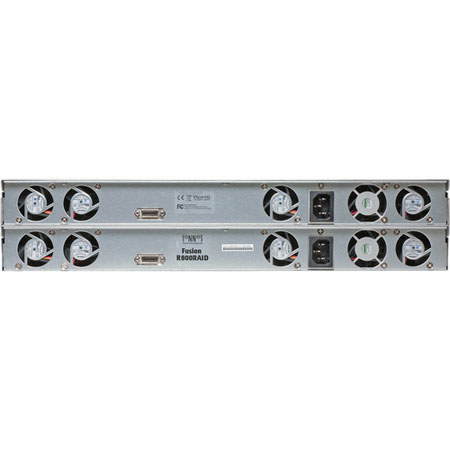

The 12TB Fusion R800RAID Hard Drive Array Storage System from Sonnet is an external RAID storage system for Windows, Mac and Linux computers. The array features 8 hot-swappable drives, which can be configured in a variety of RAID settings. It supports multiple video stream playback and sustained transfer rates of 440MB/sec in RAID 0 mode.

The array includes a PCI Express controller card, which is required to be installed in the host computer. It is an excellent solution for the large storage needs and intense performance requirements associated with video editing applications. It is housed in a standard 2U rackmount form factor.

Sonnet Features

  • Complete storage system includes enclosure, RAID controller card, drive modules, cables and software
  • Up to 690 MB/sec read, 677 MB/sec write data transfers (configured as RAID 5)
  • Overcomes volume size limit in Windows XP Pro 32-bit to fully support volumes up to 16TB
  • Universal 100-240V, 50/60Hz power supply
  • Drive Activity, Drive Presence and Power LED indicators
  • Quiet fans
  • RoHS compliant

Sonnet Specifications

External Connectors
Enclosure: Two mini-SAS
Card: Two Infiniband multilane
Drives Supported
3 & 1.5GB per second Serial ATA;
up to 7,200 RPM
Data Transfer Speed
Up to 690MB/s, depending on interface used and configuration
Supported Drive Configurations
Hardware-based JBOD;
RAID 0, 1, 4, 5, 6 and 10
Supported Video Formats
2K (2048 x 1556) LOG RGB, 10-bit 1080 4:4:4 HD, uncompressed 8-bit 1080i HD, ProRes 422, DV, HDV, DVCPRO and uncompressed SD
41 dBA
(Ambient Office 40-50 dBA)
Power Supply
2x 180W (non-redundant),
100-240V, 50/60Hz Universal
Operating Temperature
+32° F to +95° F
(0° C to +35° C)
Dimensions (W x D x H)
17.0 x 16.5 x 3.5 in / 43.8 x 41.9 x 8.8 cm
36 lbs (16.3kg)
Mfr #
