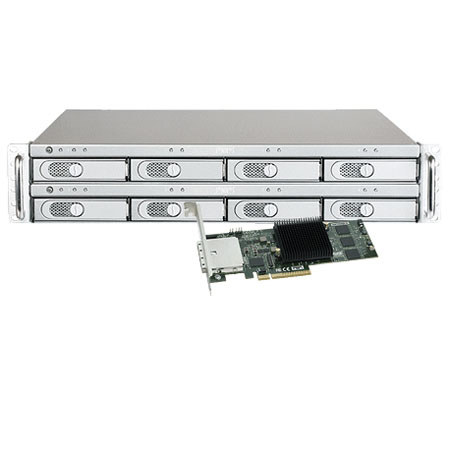

About the Sonnet R800RAID

The Sonnet 24TB Fusion R800RAID SATA Storage System is designed to offer an efficient storage solution for applications involving editing of HD/SD videos in multiple edit stations. 24TB of storage is achieved by inserting eight 3TB Enterprise/RAID edition hard drives in 8 swappable drive modules.

You can choose from multiple RAID levels (0, 1, 4, 5, 6 and 10) based on your speed and reliability requirements. RAID 5 configuration supports 677 Mbps read and 690 Mbps write speeds. Configured with 256MB ECC-protected RAM, the Sonnet PCI Express RAID controller can maintain data stream writes as the disk array nears capacity.

The R800 Fusion storage system supports hot spare drives that replace failed drives without any manual intervention. You can configure the system to receive visual, audible alerts, including email notifications. LED indicators indicate the drive activity, drive presence and power status. Quiet fans make the system suitable for noise-sensitive environments. The storage system is compatible with Mac, Windows and Linux operating systems. When used with Windows XP Pro 32-bit, the storage system supports creation of volumes up to 16TB.

Sonnet R800RAID Includes

  • Sonnet Fusion R800RAID 24TB SATA Storage System
  • Disk Enclosure
  • Sonnet RAID Controller
  • 2 x Multilane Cables
  • 8 x 3.5" Drive Modules
  • Power Cord
  • Software CD
  • User's Guides
  • Sonnet Warranty

Sonnet R800RAID Features

  • 8 swappable drive modules
  • Eight 3TB Enterprise/RAID edition hard drives
  • Supports creation of volumes up to 16TB in Windows XP Pro 32-bit
  • 2U rack-mount design enables easy mounting of the storage system in most of the server racks
  • Hot spare support replaces failed drives without any manual intervention
  • Choose from multiple RAID levels (0, 1, 4, 5, 6 and 10) based on your speed and reliability requirements
  • RAID 5 configuration supports 677 Mbps read and 690 Mbps write speeds enabling the system to handle a single stream of uncompressed 10-bit 1080 4:4:4 HD, or multiple streams of ProRes 422, uncompressed 8-bit 1080 HD, DV, HDV and DVCPRO video
  • RAID 5 configuration makes the storage system capable of single-stream 2K (2048 x 1556) LOG RGB capture and playback
  • Sonnet PCI Express RAID controller (based on Intel IOP348 RAID processor) maintains data stream writes as the disk array nears capacity, when configured with 256MB ECC-protected RAM
  • Visual, audible alerts, including email notifications
  • LED indicators indicate the drive activity, drive presence and power status
  • Quiet fans ensure low noise in the storage system during operation, making it suitable for noise-sensitive environments
  • Compatible with Mac, Windows and Linux operating systems
  • Works with capture cards from AJA, Blackmagic Design, Matrox and Bluefish444
  • Supports mainstream video editing applications such as Apple Final Cut Pro and Adobe Premiere Pro CS4

Sonnet R800RAID Specifications

External Connectors Enclosure: Two mini-SAS Card: Two Infiniband multilane
Capacity 24TB (8 x 3TB)
Drive Type Enterprise/RAID edition
Data Transfer Speed Up to 690MB/s, depending on interface used and configuration
Supported Drive Configurations Hardware-based JBOD; RAID 0, 1, 4, 5, 6 and 10
Supported Video Formats 2K (2048 x 1556) LOG RGB, 10-bit 1080 4:4:4 HD, uncompressed 8-bit 1080i HD, ProRes 422, DV, HDV, DVCPRO and uncompressed SD
Noise 41 dBA
Power Supplies 300 W, 100 - 240 V, 50/60 Hz Universal
Operating Temperature +32 to +95 Deg. F (0 to +35 Deg. C)
OS Compatibility Mac OS X Version 10.4.8+ Windows 7, Vista, Server 2008, Server 2003 and XP Pro Linux (RedHat ES 3, 4; SUSE RedHat ES 3, 4; SUSE Linux 9, 9.1, 9.2, 9.3, 10, 10.1 and the following architectures: i386; x86_64 (AMD64, Intel EM64T)
Hardware Compatibility Mac, Windows, or Linux computer with available x8 or x4 PCI Express (PCIe) slot
Dimensions (W x D x H) 17.0 x 16.5 x 3.5" (438 x 419 x 88 mm)
Weight 36 lbs (16.3 kg)
