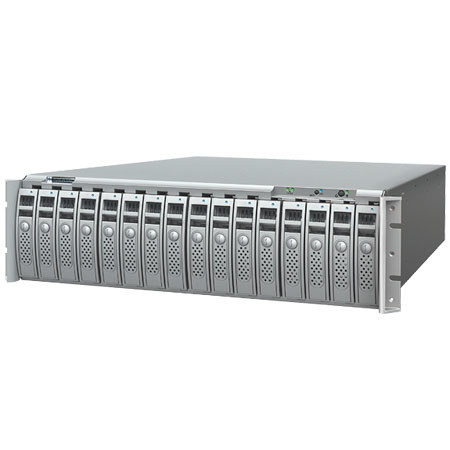

Sonnet Fusion RX1600 48TB Expansion Chassis with Drives Cables, 1000 MB/s Read & 750 MB/s Write Speed

SKU: SNTRX16S48TB MFR: FUS-RX16S-48TB
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$12,995.00
Free Shipping
Qty:

Add to Wishlist

About the Sonnet RX1600

When you need access to more assets than your storage system can hold, Sonnet offers an upgrade path that is simple to deploy - Fusion RX1600 Expansion storage systems. Fusion RX1600Fibre and Fusion RX1600RAID storage systems feature dual internal SAS (Serial Attached SCSI) expanders that enable you to connect additional RX1600 Expansion systems in a daisy chain, no additional RAID controller card needed. As a matter of fact, incorporating more storage capacity is nearly as simple as installing additional Fusion RX1600 Expansion systems into the rack and connecting a few cables.

Sonnet RX1600 Includes

  • Sonnet Fusion RX1600 48TB Expansion Chassis
  • Rackmount Disk Enclosure
  • Two Rackmount Rail Assemblies & Mounting Hardware
  • 2 x 2-Meter mini-SAS cables
  • Sixteen 3.5" drive modules
  • Two power cords
  • Software CD
  • User's guides
  • Sonnet 5 Years Warranty

Sonnet RX1600 Specifications

Enclosure Type Rack-mountable - 3U
Total Array Capacity 48TB
Interface Serial Attached SCSI
Installed Devices / Modules Qty 16 (installed) / 16 (max)
Supported Drives Serial ATA-300
Storage Controller RAID ( Serial ATA-300 ) - RAID 0, 1, 4, 5, 6, 10, JBOD
Hard Drive 16 x 3TB hot-swap Serial ATA-300
OS Required Mac OS X and OS X Server Versions 10.4.8+ (including Snow Leopard)
Windows 7, Vista, Server 2008, Server 2003 and XP Pro
Linux (RedHat ES 3, 4; Suse RedHat ES 3, 4; Suse Linux 9, 9.1, 9.2, 9.3, 10, 10.1 and the following architectures: i386; x86_64 (AMD64, Intel EM64T)
Hardware Compatibility Mac, Windows, or Linux computer with compatible Fibre Channel host adapter card, operating system software and if used, SAN software
Fusion RX1600Fibre or Fusion RX1600RAID storage system
Power AC 120/230 V ( 50/60 Hz )
Power Redundancy Yes
Dimensions (W x D x H) 17.4 x 21 x 5.2 in (42.2 x 53.3 x 13.2 cm)
Weight 59.5 lbs / 26.9 kg
